SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 79SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 8231 AND id_lang = 1 Lemco MLC-201 2 x DVB-S/S2/S2X + 2 x FlexCAM to IP streaming
search
  • Lemco MLC-201 2 x DVB-S/S2/S2X + 2 x FlexCAM to IP streaming

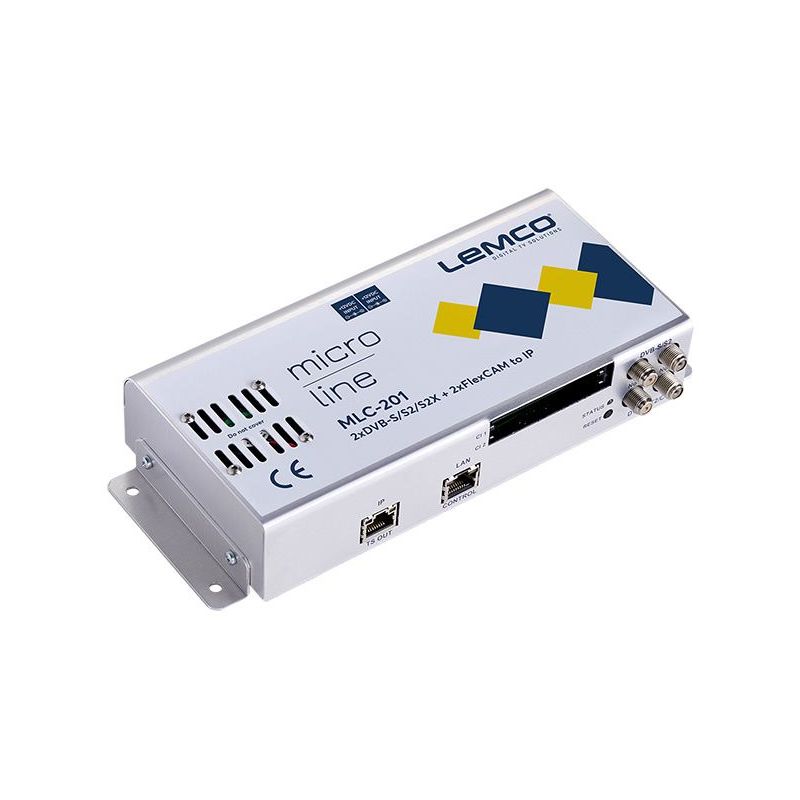

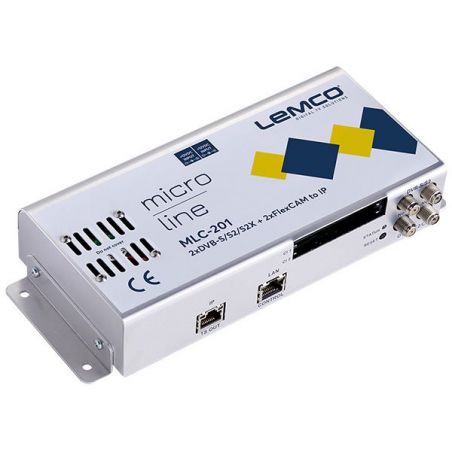

Lemco MLC-201 2 x DVB-S/S2/S2X + 2 x FlexCAM to IP streaming

The MLC-201 is a very powerful, all-in-one mini headend device, able to receive up to 2 independent satellite (DVB-S/S2/S2X) signals with 2x CI interfaces and convert them in IPTV streaming using UDP/RTP protocols multicast/unicast. Moreover, the MLC-201 supports "multistream" satellite reception too. Connect the CAMs either at the inputs or the outputs of the device.

€1,064.26
Tax included
Reference lemco-mlc-201
Brand Lemco
Quantity
Available in 5/7 days

Free shipping

Lemco MLC-201 2 x DVB-S/S2/S2X + 2 x FlexCAM to IP streaming

€1,064.26
The MLC-201 is a very powerful, all-in-one mini headend device, able to receive up to 2 independent satellite (DVB-S/S2/S2X) signals with 2x CI interfaces and convert them in IPTV streaming using UDP/RTP protocols multicast/unicast. Moreover, the MLC-201 supports "multistream" satellite reception too. The FlexCAM technology provides the ability to the user to connect the CAMs either at the inputs or the outputs of the device.

The embedded web server of the MLC-201 provides a very friendly user interface as well as the ability of remote or local control of the device via LAN.

Its small size and its powerful features render the MLC-201 the ideal solution in case we want to distribute FTA (Free-To-Air) or scrambled TV programs coming from satellite (DVB-S/S2/S2X) sources to an installation using IPTV technology.

Features

  • 2 x independent multi-standard inputs DVB-S/S2/S2X
  • 2 x FlexCAM
  • "Multistream" reception support
  • Gbit IP streaming (up to 64 x SPTS / 4 x MPTS)
  • Dual power supplies offering redundancy mode
  • Local or remote control via webserver
  • Very friendly user interface
  • Wall or rack mount options
  • SNMP v2
  • Ultra-compact size
  • 5-year warranty

Highlights

  • Rack Mount, Ability to rack mount by using a specific rack mount case
  • Wall-Mount, Ability to wall mount without any prerequisites
  • LAN Interface, Control the device with any web browser, on local or remote network
  • EPG over IP, Electronic Program Guide broadcasts via IP streaming
  • FlexCAM
  • Multi-Standard
  • Multi-Stream Support
  • E/M Shielding, Each unit is electromagnetically shielded
  • Dual Power Supply, Each unit contains two power supplies

Specifications

Input
Type 2 x DVB-S/S2/S2X
Frequencies 950…2150 MHz DVB-S/S2/S2X
Multistream support Yes
Connector 75Ω - F, female
Descrambling Yes, Accepts 2 x universal CAM capable of connecting either on input or output
LNB
Voltage OFF / 13V / 18V
Current Less than 400mA
22 kHz signal On / Off
22 kHz signal - Voltage 0.65V ±0.35V
22 kHz signal - Frequency 22 KHz ±4Hz
22 kHz signal - DiSEqC 1.0 (Port A, B, C, D)
DVB-S (IN)
Symbol rate 1 - 55 MBaud
Roll off factor 0.2, 0.25, 0.35
Code rate 1/2, 2/3, 3/4, 5/6, 7/8 (αυτόματο)
Spectral inversion Reverse, Non-reverse (αυτόματο)
DVB-S2 (IN)
Constellation QPSK, 8PSK (Automatic)
Symbol rate 1 - 55 MBaud (QPSK)
1 - 45 MBaud (8PSK)
Roll off factor 0.2, 0.25, 0.35 (Automatic)
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 (QPSK-Automatic)
3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (8PSK-Automatic)
Spectral inversion Reverse, Non-reverse (Automatic)
DVB-S2X (IN)
Constellation QPSK, 8PSK (Automatic)
Symbol rate 1 - 45 MBaud (QPSK)
1 - 30 MBaud (8PSK)
Roll off factor Από 0.05 έως 0.35 (Automatic)
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 (QPSK-Automatic)
3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (8PSK-Automatic)
IP Streaming
IP TS Out Yes
Protocol UDP / RTP (Multicast/Unicast)
Speed 1 Gbit
IGMP support Yes, v2, v3
Type MPTS (up to 4 TS)
SPTS (up to 64TS)
Max. bitrate 480Mbps max.
Programming Interface
Ethernet webserver Yes, embedded webserver
Speed 10/100 Mbps
Connector RJ45
Browser compatibility Chrome, Firefox, Safari, Opera, Edge et al.
General
Power supply 2 x +12VDC
Power supply consumption 1.4A max.
Operating temperature 0 °C to 40 °C
Storage temperature -10 °C to +70 °C
Humidity Up to 90%
Dimensions 235 x 115 x 48 mm
Weight 450 g
