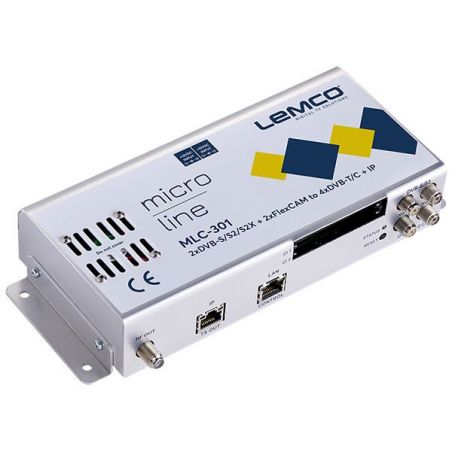

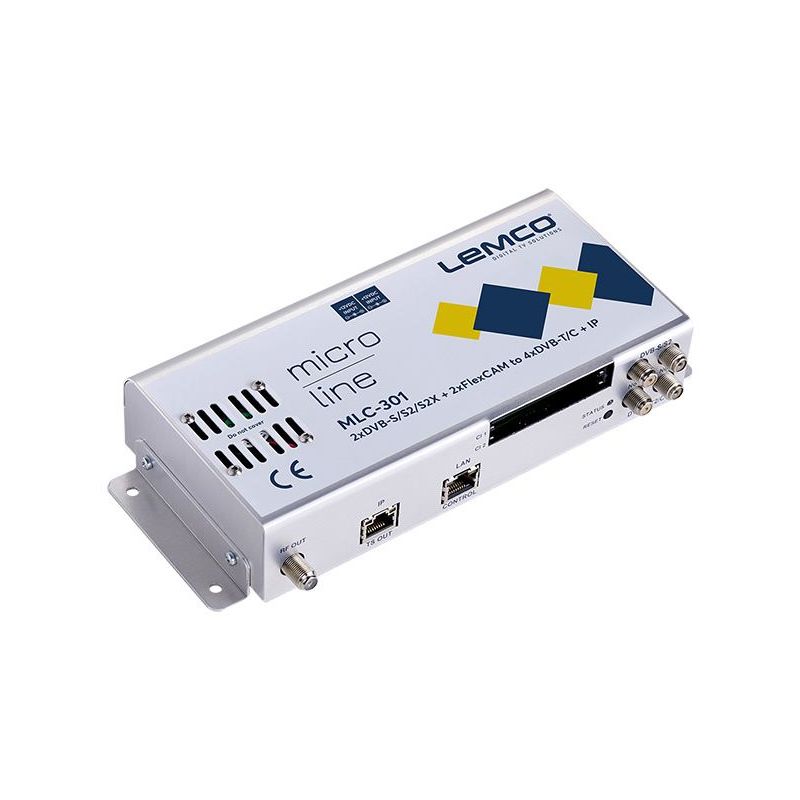

Lemco MLC-301 2 x DVB-S/S2/S2X + 2 x FlexCAM to 4 x DVB-T/C + IP streaming
search
  • Lemco MLC-301 2 x DVB-S/S2/S2X + 2 x FlexCAM to 4 x DVB-T/C + IP streaming

Lemco MLC-301 2 x DVB-S/S2/S2X + 2 x FlexCAM to 4 x DVB-T/C + IP streaming

The MLC-301 is a very powerful, all-in-one mini headend device, able to receive up to 2 independent satellite (DVB-S/S2/S2X) signals with 2x CI interfaces and convert them either in 4 x DVB-T/C RF output channels or in IPTV streaming using UDP/RTP protocols multicast/unicast. Moreover, the MLC-301 supports "multistream" satellite reception too.

€1,258.94
Tax included
Reference lemco-mlc-301
Brand Lemco
Quantity
Available in 5/7 days

Free shipping
Lemco MLC-301 2 x DVB-S/S2/S2X + 2 x FlexCAM to 4 x DVB-T/C + IP streaming

Lemco MLC-301 2 x DVB-S/S2/S2X + 2 x FlexCAM to 4 x DVB-T/C + IP streaming

€1,258.94
The MLC-301 is a very powerful, all-in-one mini headend device, able to receive up to 2 independent satellite (DVB-S/S2/S2X) signals with 2x CI interfaces and convert them either in 4 x DVB-T/C RF output channels or in IPTV streaming using UDP/RTP protocols multicast/unicast. Moreover, the MLC-301 supports "multistream" satellite reception too. The FlexCAM technology provides the ability to the user to connect the CAMs either at the inputs or the outputs of the device.

It supports "pool" technology, meaning that the user is able to select any program from any of the 2 inputs and assign them to any of the 4 RF or IP outputs providing great flexibility.

The embedded web server of the MLC-301 provides a very friendly user interface as well as the ability of remote or local control of the device via LAN.

Its small size and its powerful features render the MLC-301 the ideal solution in case we want to distribute FTA (Free-To-Air) or scrambled TV programs coming from satellite (DVB-S/S2/S2X) sources to a CATV installation using the DVB-T/C or IPTV technology.

Features

  • 2 x independent multi-standard inputs DVB-S/S2/S2X
  • 2 x FlexCAM
  • 4 x RF output DVB-T/C (software selectable)
  • "Multistream" reception support
  • Gbit IP streaming (up to 64 x SPTS / 4 x MPTS)
  • "Pool" technology
  • MER value > 42dB
  • PID filtering
  • Dual power supplies offering redundancy mode
  • Custom NIT/SDT
  • Local or remote control via webserver
  • Very friendly user interface
  • Wall or rack mount options
  • SNMP v2
  • Ultra-compact size
  • 5-year warranty

Highlights

  • Rack Mount, Ability to rack mount by using a specific rack mount case
  • Wall-Mount, Ability to wall mount without any prerequisites
  • LAN Interface, Control the device with any web browser, on local or remote network
  • EPG over RF & IP, Electronic Program Guide broadcasts via RF & IP streaming
  • Customizable NIT and SDT to your needs
  • PID filtering
  • FlexCAM
  • Hybrid IP-RF
  • Simultaneous RF outputs and IP streaming supported
  • Pool Technology
  • Multi-Standard
  • Multi-Stream Support
  • E/M Shielding, Each unit is electromagnetically shielded
  • Dual Power Supply, Each unit contains two power supplies

Specifications

Input
Type 2 x DVB-S/S2/S2X
Frequencies 950…2150 MHz DVB-S/S2/S2X
Multistream support Yes
Connector 75Ω - F, female
Descrambling Yes, Accepts 2 x universal CAM capable of connecting either on input or output
LNB
Voltage OFF / 13V / 18V
Current Less than 400mA
22 kHz signal On / Off
22 kHz signal - Voltage 0.65V ±0.35V
22 kHz signal - Frequency 22 KHz ±4Hz
22 kHz signal - DiSEqC 1.0 (Port A, B, C, D)
DVB-S (IN)
Symbol rate 1 - 55 MBaud
Roll off factor 0.2, 0.25, 0.35
Code rate 1/2, 2/3, 3/4, 5/6, 7/8 (αυτόματο)
Spectral inversion Reverse, Non-reverse (αυτόματο)
DVB-S2 (IN)
Constellation QPSK, 8PSK (Automatic)
Symbol rate 1 - 55 MBaud (QPSK)
1 - 45 MBaud (8PSK)
Roll off factor 0.2, 0.25, 0.35 (Automatic)
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 (QPSK-Automatic)
3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (8PSK-Automatic)
Spectral inversion Reverse, Non-reverse (Automatic)
DVB-S2X (IN)
Constellation QPSK, 8PSK (Automatic)
Symbol rate 1 - 45 MBaud (QPSK)
1 - 30 MBaud (8PSK)
Roll off factor Από 0.05 έως 0.35 (Automatic)
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 (QPSK-Automatic)
3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (8PSK-Automatic)
Transport Stream Processing
Services User selection by service names
Automatic regeneration PAT, CAT, SDT, PMTs, EITs tables
NIT Pass-through, custom,automatic
PCR re-stamping
LCN support Yes
RF Output
Type 4 x RF out in adjacent channels
Output Frequencies 110…950 MHz (1 Hz step)
Output Level 104dBµV
Connector 75Ω - F, female
Output Attenuator 0…-10dB
MER More than 42dB
DVB-T (OUT)
Bandwidth 5, 6, 7, 8 MHz
Mode 2K, 8K
Constellation QPSK, 16QAM, 64QAM
Guard interval 1/4, 1/8, 1/16, 1/32
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C (OUT)
Bandwidth 5, 6, 7, 8 MHz
Mode 2K, 8K
Constellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Symbol rate 1-7.2 Ms/s
IP Streaming
IP TS Out Yes
Protocol UDP / RTP (Multicast/Unicast)
Speed 1 Gbit
IGMP support Yes, v2, v3
Type MPTS (up to 4 TS)
SPTS (up to 64TS)
Max. bitrate 480Mbps max.
Programming Interface
Ethernet webserver Yes, embedded webserver
Speed 10/100 Mbps
Connector RJ45
Browser compatibility Chrome, Firefox, Safari, Opera, Edge et al.
General
Power supply 2 x +12VDC
Power supply consumption 1.8A max.
Operating temperature 0 °C to 40 °C
Storage temperature -10 °C to +70 °C
Humidity Up to 90%
Dimensions 235 x 115 x 48 mm
Weight 450 g
