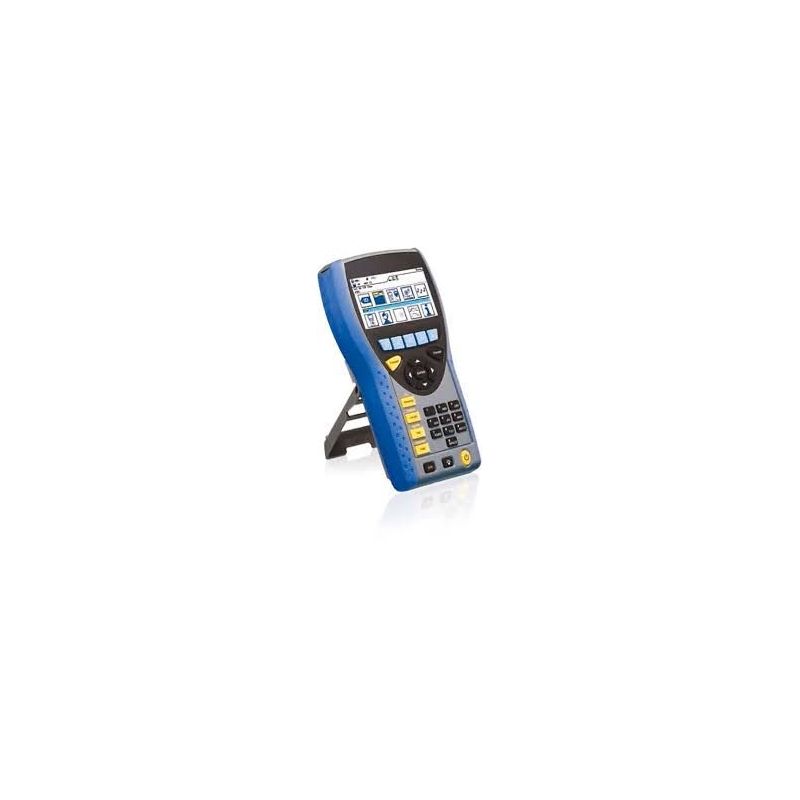

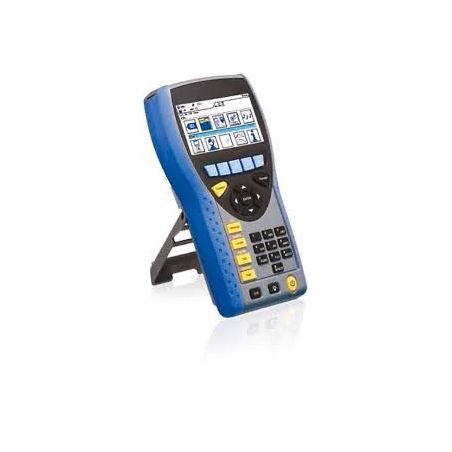

Promax IC-082 Cable, fiber optic and Wi-Fi network tester
Meter of active or passive networks in copper and fiber cables, as well as in Wi-Fi networks with support for IPv6 and PoE+ networks.
€5,336.10
Tax included
Reference
promax-ic-082
Brand
Promax
Promax IC-082 Cable, fiber optic and Wi-Fi network tester
€5,336.10
Meter of active or passive networks in copper and fiber cables, as well as in Wi-Fi networks with support for IPv6 and PoE+ networks.
The IC-082 is a meter of active or passive networks to detect connectivity failures in copper and fiber cables, as well as in Wi-Fi networks. Perform malfunction checks on networks, accessibility checks, traffic statistics, network mappings, PoE measurements, VoIP and more. Supports IPv6 and PoE+ networks.
It combines in a single device the functions of a laptop, a wiring plotter and a power over Ethernet (PoE) tester.
The loop mode of the IC-082 allows you to act as a remote loop unit for traffic testing in wide area networks (WAN).
Optionally includes fiber optic heads (for single mode and multimode fibers).
Specifications
| RJ45 CONNECTOR | Replaceable connector |
| USB TO PC CONNECTION | Connection to a PC to export measurements (XML format) and update firmware |
| TESTING IN COPPER NETWORKS | |
| Wiring Verification | Thread and length mapping, Tone generator, Auto: Thread mapping |
| Terminal Mode | Network Map, Ping, PoE, Verific Red, Traceroute, Top Ten, Blink Hub, Auto (PoE, Ping, Traceroute, Verific Red) |
| Service Detection | PoE, ISDN (with acoustic warning), PBX (with acoustic warning), Unknown (with acoustic warning) |
| TESTS IN OPTICAL NETWORKS | |
| Optical tests | Power Tx and Rx μW (using specific SFP) |
| Network tests | Network Map, Ping, Net Verify, Trace Route, Loopback, Top Ten, Hub Blink, Auto (Ping, Trace Route, Network Verify) |
| WI-FI NETWORK TESTS | |
| Scanning | Power, SSID, BSSID, Channel, Mode (802.11b / g / n), Encryption (No / WEP / WPA / WPA2) |
| NETWORK TESTS | Netmap, Ping, Net Verify, Trace Route, Auto |
| VOICE NETWORK TESTS | Protocols, Traffic (host IP address, mbps peak), IP data (information, IP address, gateway, subnet mask, DNS1, DNS2, DHCP), Link (errors, info.), VoIP tests, Call log ( Last 20), Call Start Time, Destination No., Duration (mm: ss), Last Call Established (Jitter according to RFC3550 Delay) |
| WIRING TESTS | Voltage warning (> ± 10 V on any pin), Pass / Fail, Open circuit (by pin and pair), Short circuit (by pin and pair), Cross pairs, Split pairs, Open circuit, Remote open circuit, Length of the cable, tone generator |
| TYPES OF CABLE SUPPORTED | Cat3 UTP, Cat3 STP, Cat5 UTP, Cat5 STP, Cat5e UTP, Cat5e STP, Cat6 UTP, Cat6 STP, Cat7, USOC, ETH S12-36, ETH S12-78, ETH U1236, ETH U1278, IND. M12, COAX RJ59 |
| AUTONOMUp to 5 hours (charging time 3 hours) | Hasta 5 horas (tiempo de carga 3 horas) |
