SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 7143 AND id_lang = 1 Triax TEOC 211 Ethernet adapter over coax
search
  • Triax TEOC 211 Ethernet adapter over coax
  • Triax TEOC 211 Ethernet adapter over coax

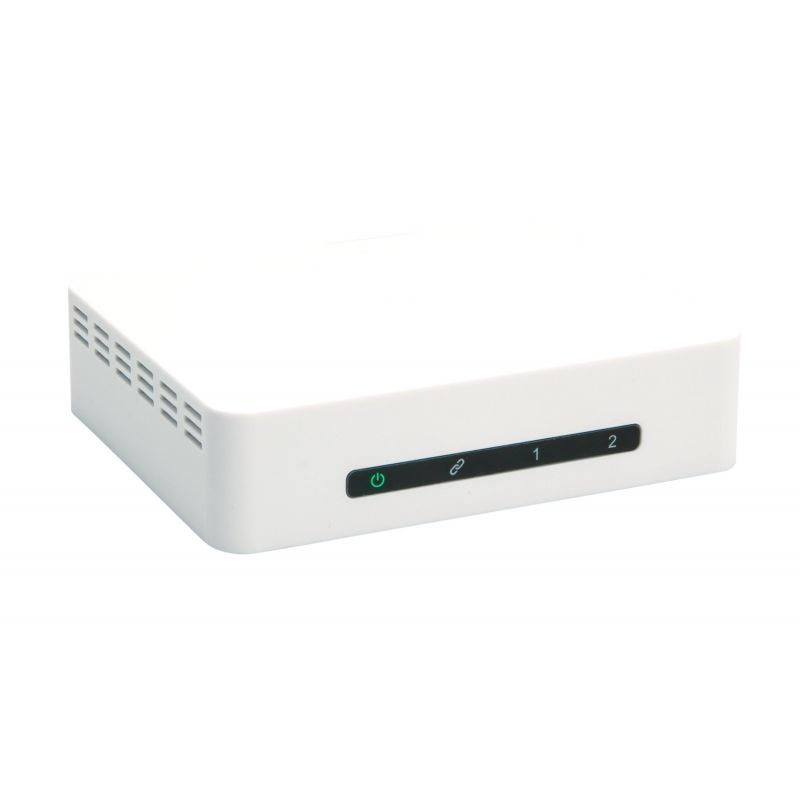

Triax TEOC 211 Ethernet adapter over coax

The TEOC 211 is a multi-purpose Ethernet over coaxial cable bridge device. It can be used in a number of different ways to deliver Gigabit Ethernet connection via an existing coaxial (TV aerial or cable TV) connection.

€271.04
Tax included
Reference triax-310401
Brand Triax
Quantity
Available in 4/5 days

Free shipping

Triax TEOC 211 Ethernet adapter over coax

€271.04

The TEOC 211 is a multi-purpose Ethernet over coaxial cable bridge device. It can be used in a number of different ways to deliver Gigabit Ethernet connection via an existing coaxial (TV aerial or cable TV) connection.

It can be used as either a sender or receiver but it will need to be used with at least one other TRIAX Ethernet over Coax compatible device. This can be either

  • TEOC 211: Ethernet over Coax device (compatible with cable or terrestrial TV signals)
  • TECW 211: Ethernet over Coax + Wi-Fi dual band device (compatible with cable or terrestrial TV signals)

A Maximum of 16 TEOC 211 or TECW 211 devices can be used in any in home network.

Each being able to send and receive Gigabit Ethernet via the existing TV aerial or cable TV cabling structure that is already installed in the home.

Features

  • PHY rate (1.0/1.1) : 225Mbps @-50dBm
  • PHY rate (2.0 multi-node) : 600Mbps @-2...-44dBm
  • MAC throughput : see table

Specifications

ORDER INFORMATION
EAN Number 5702663104013
FREQUENCY
Low pass 5...1002 MHz
High pass 1125...1675 MHz
Network Center 1150...1600 MHz
LOSS
Low pass - Insertion loss < 5 dB
High pass - Insertion loss < 5 dB
RETURN LOSS
Low pass - Return loss Min. 8 dB
High pass - Return loss Min. 8 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
AC Supply voltage 100...240 /50...60hz VAC
DC Operating voltage 5 VDC
Power Consumption (typ.) 3.5 W
External PSU Included
CONNECTORS
Connector Type F-female
MECHANICAL
Main material Plastic
Product Height 101 mm
Product Depth 30 mm
Product Width 122 mm
Colour White
Packing QTY 1
Packaging Height 0.101 m
Packaging Width 0.122 m
Packaging Depth 0.030 m
Net Weight 0.200 kg
Tara Weight 0.150 kg
Total Weight 0.350 kg
Remarks 2 Ethernet ports 10/100/1000Mbps LED ON/OFF switch 16 devices max. on the same network Delivered with 1 x Power Adapter 100-240 VAC / 50- 60Hz to 5V DC with EU and UK plug 1 x RJ 45 cable, Cat 5e, 1.0m. 1 x white coaxial cable, 1.0m, class B 75 ohms with 1x F male Connector and 1 x IEC male connector 1 x IEC male to F male adapter 1 x IEC female to F male adapter
