U/UTP CAT-6 Cu LSFH, 305m Televes
search
  • U/UTP CAT-6 Cu LSFH, 305m Televes

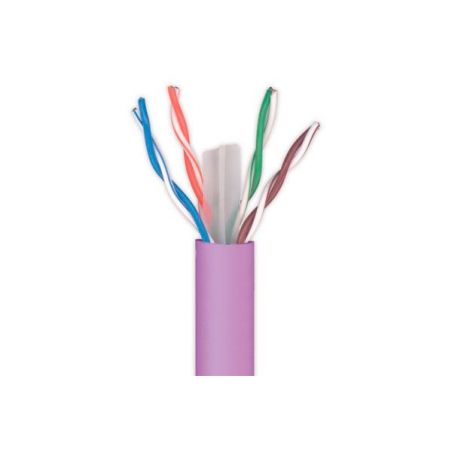

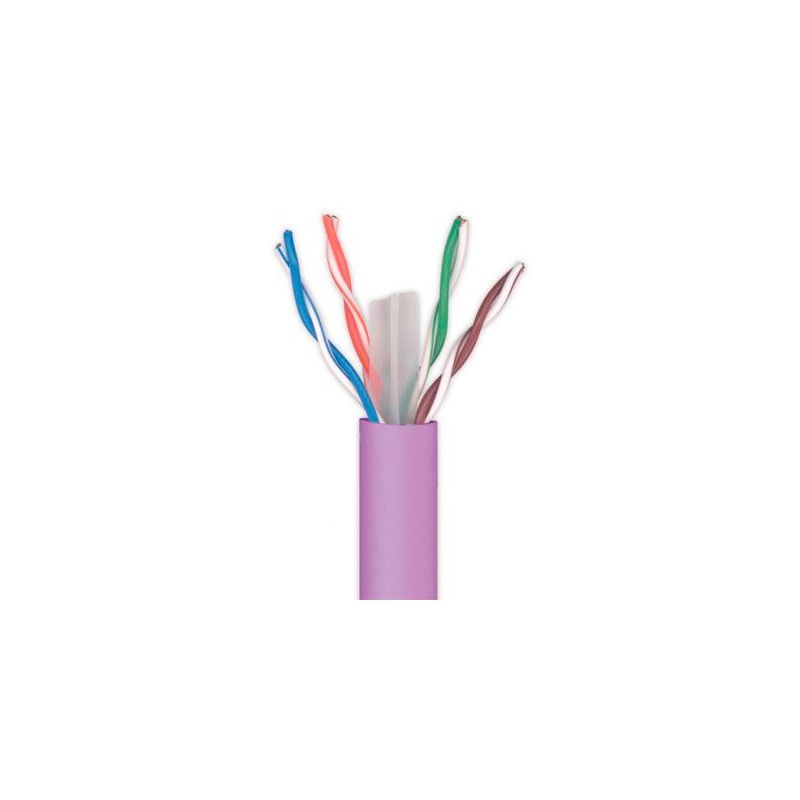

U/UTP Data Cable Cat.-6 Dca Cu LSFH Ø 6.2mm Violet 1000m Televes

Cable 1000m composed of 4 pairs of copper wires, interwoven two to two, housed in cavities. Category 6 and Euroclass Dca data cable, U / UTP type (unshielded), with copper conductor and cover of LSFH (Low Smoke Free of Halogen) in violet color (RAL 4008). Televes 212302

€0.80
Tax included
Reference televes-212302
Brand Televes
Quantity
Available in 24/48h

Free shipping
U/UTP CAT-6 Cu LSFH, 305m Televes

U/UTP Data Cable Cat.-6 Dca Cu LSFH Ø 6.2mm Violet 1000m Televes

€0.80

Cable 1000m composed of 4 pairs of copper wires, interwoven two to two, housed in cavities. Set protected by an outer cover of violet LSFH. For use large areas and buildings (Free of allogens).

Specially indicated to install in closed areas and public places such as hospitals, tunnels, transport stations, newspaper archives, museums and, in general, all those places in which it is necessary to protect people and equipment from the effects of toxic and / or corrosive gases.

Stands out for

  • U/UTP type data cable
  • Solid copper central conductor (23AWG)
  • According to standard EN50173PL Class E-2002 for 90 meters
  • Fire behavior according to standards IEC60332-1-2, IEC60754-1, IEC61034-1 / -2

Features

  • PE (Polyethylene) copper conductor insulation 0.95mm thick
  • LSFH outer cover (Low Smoke Free Of Halogen) with 0.50mm thickness and a diameter of 6.2mm
  • Rated speed of 72%
  • Fireproof. Self-extinguishing in case of fire. Very low smoke emission and halogen-free (no harmful gas / acid or toxic fumes combinations).

Specifications

Type   U/UTP
Class   CAT 6
Driver Material Solid copper
Ø (mm) 0.55 ± 0.02
Type of driver AWG 23
Driver Isolation Material Polyethylene
Ø (mm) 0.95
External cover Material Low Smoke & Free Halogen (LSFH)
Ø (mm) 6.2 ± 0.3
Thickness (mm) 0.50 ± 0.05
Color Violet
Tearing thread Yes
Reaction to fire CPR Dca
Nominal impedance Ω 100 ± 15
Max resistance Driver Ω/Km < 117
Nominal speed % 72
Work stress V 300
