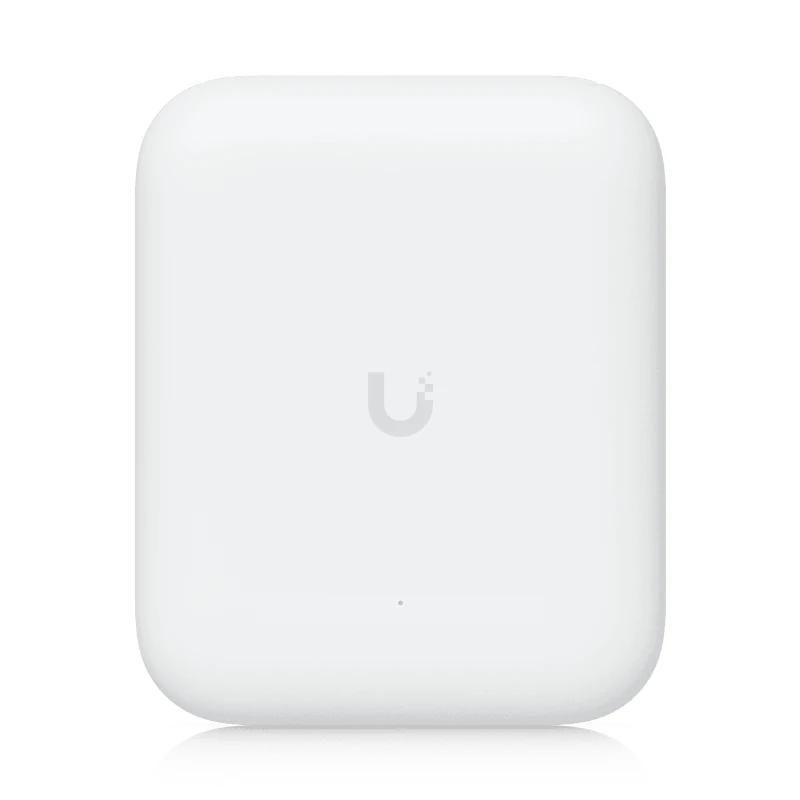

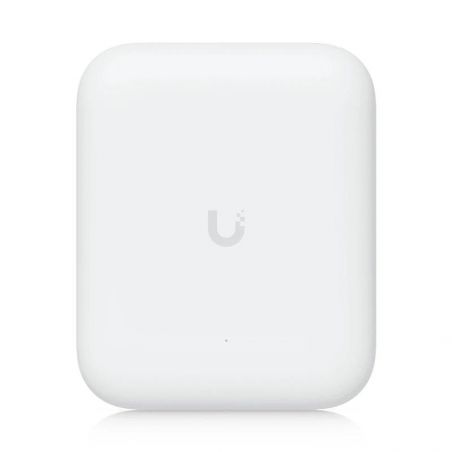

Ubiquiti U7-Outdoor AP WiFi7 PoE+ 1x1/2.5GbE

Brand Ubiquiti Model U7-Outdoor Characteristics - Wi-Fi 7 - Spatial Streams: 4 - Coverage area: 465 m² (5000 ft²) - Max. Customer Count: 250+ - Uplink: 2.5 GbE - Mounting locations: wall, pole - Mounting plate: Mounting included - Waterproofing: IPX6 - Power method: PoE+ Performance MIME - 5GHz: 2 x 2 (DL/UL MU-MIMO) - 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) Max. Data Rate - 5GHz: 4.3 Gbit/s (BW240) -…
€279.20
Tax included
Reference U7-OUTDOOR
Brand Ubiquiti
Quantity
In Stock

Free shipping
Ubiquiti U7-Outdoor AP WiFi7 PoE+ 1x1/2.5GbE

Ubiquiti U7-Outdoor AP WiFi7 PoE+ 1x1/2.5GbE

€279.20

Ubiquiti U7-Outdoor AP WiFi7 PoE+ 1x1/2.5GbE


Brand Ubiquiti
Model U7-Outdoor
Characteristics - Wi-Fi 7
- Spatial Streams: 4
- Coverage area: 465 m² (5000 ft²)
- Max. Customer Count: 250+
- Uplink: 2.5 GbE
- Mounting locations: wall, pole
- Mounting plate: Mounting included
- Waterproofing: IPX6
- Power method: PoE+
Performance MIME
- 5GHz: 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
- 5GHz: 4.3 Gbit/s (BW240)
- 2.4 GHz: 688 Mbps (BW40)
Antenna gain
- 5GHz:
Directional internal: 12.5 dBi
External Omni: 4 dBi
- 2.4 GHz
Directional internal: 8 dBi
External Omni: 3 dBi
Max. Transmit Power
- 5GHz: 26 dBm
- 2.4 GHz: 23dBm
Max BSSID
- 8 per radio
Supported data rates
- 802.11be (Wi-Fi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
- 802.11ax (Wi-Fi 6): 7.3 Mbps at 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11ac (Wi-Fi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Other features - Wireless mesh
- Band direction
- 802.11v BSS Transition Management
- 802.11r Fast Roaming
- 802.11k Radio Resource Management (RRM)
- Advanced radio management
- Access point (access point 2.0)
- Captive Access Point Portal:
Custom branded landing page
Authentication of vouchers
Payment-based authentication
External portal server support
Password authentication
Guest Network Isolation
- Pre-shared private key (PPSK)
- WiFi speed limitation
- Client device isolation
- WiFi schedules
- RADIO over TLS (RadSec)
- Dynamic VLAN assigned by RADIUS
Hardware
 - Network interface: 1 x 1/2.5 GbE RJ45 port
- Antenna beamwidth
5GHz: 45°
2.4 GHz: 90°
- Management: Ethernet
- Channel bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
- Wind load: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
- Pole mount diameter: 1–2.36" (25–60 mm)
Antennas
- Internal directional antenna
- External omnidirectional antennas
- RP-SMA connectors for external antenna
Material
- Enclosure material: UV-stabilized polycarbonate, aluminum alloy
- Mounting material: Polycarbonate, SGCC steel
LED
- Energy: White/Blue
- System: White/Blue
- Mesh signal: blue
Certifications
- CE, FCC, IC
Operating frequency
- US/CA:
2400 - 2472MHz
ONUII-1: 5150 - 5250 MHz
ONUII-2A: 5250 - 5350 MHz
UNII-2C: 5470 - 5725 MHz
ONUII-3: 5725 - 5850 MHz
- World Cup:
2400 - 2483.5MHz
5150 - 5725MHz
Food
- Max. Power consumption: 19W
- Supported voltage range: 42.5—57 VDC
Environmental
- Operating ambient temperature: -30 to 60°C (-22 to 140°F)
- Operating ambient humidity: 5 to 95% non-condensing
Dimensions
- 70 x 208 x 54.5 mm
- 1.2 kg
Review date 27-02-2025 by RTY
