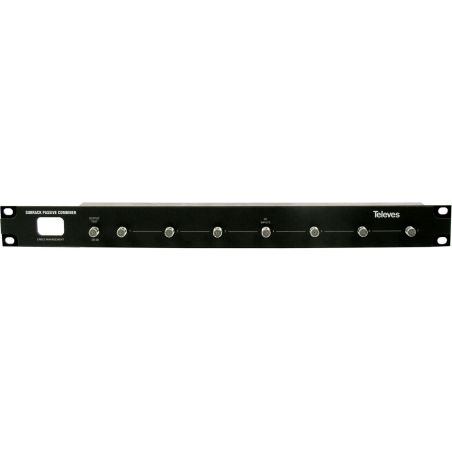

7-in-1 combiner 19" Rack installation Televes

Device that allows the combination of T.0X modules without Z output loop through, providing an optimal C/N for headends with high channel density. Televes 565002
€207.48
Tax included
Reference televes-565002
Brand Televes
Quantity
Available in 24/48h

Free shipping
7-in-1 combiner 19" Rack installation

7-in-1 combiner 19" Rack installation Televes

€207.48
Device that allows the combination of T.0X modules without Z output loop through, providing an optimal C/N for headends with high channel density.

Features

  • Equipped with a test output (-20 dB)
  • High rejection among inputs
  • The front panel eases connection

Specifications

 Frequency range MHz 5 ... 40 40 ... 450 450 ... 750 750 ... 1000
 Max. insertion loss dB 11.5 11.5 11.8 12
 Min. isolation dB

20
 Test port dB

20
 Input/Output return loss dB

>18
 Impedance Ω

75
 Protection index IP

20
 Operating temperature °C / °F

-5 ... 45 / 23 ... 113
