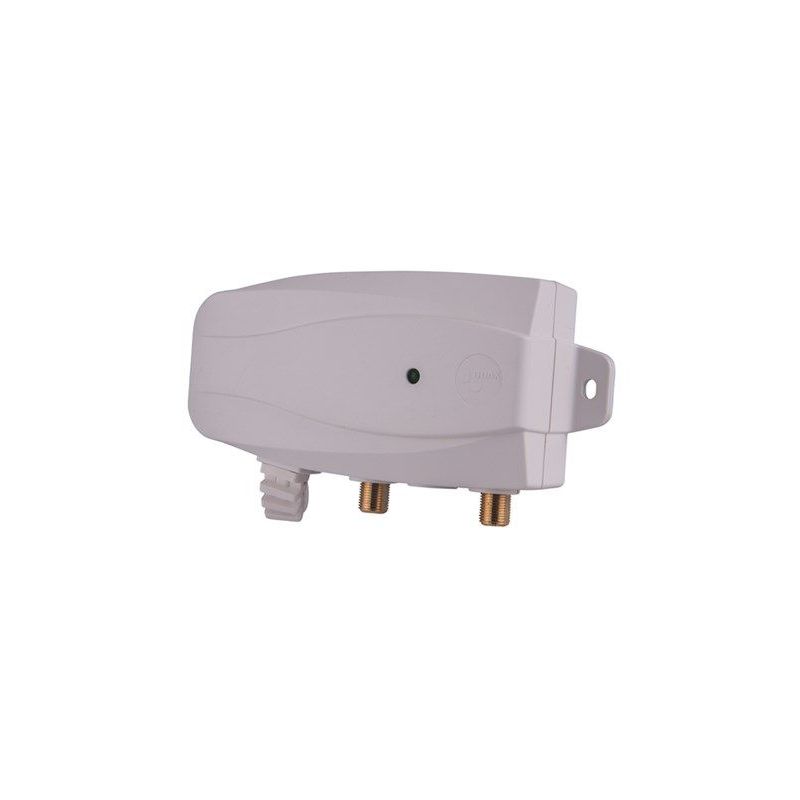

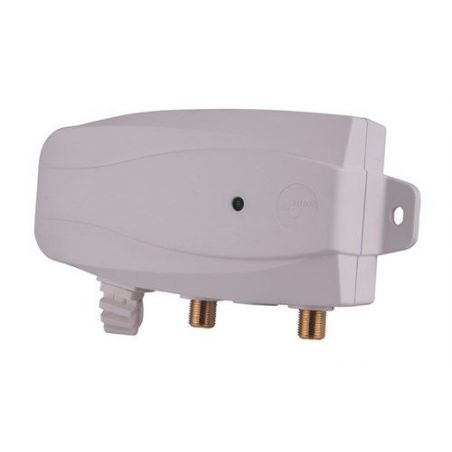

Triax IFP 101 LTE Power supply 12 Vdc / 100 mA 5-790 MHz

TRIAX IFP 101 are internal power supplies for mast preamps that also serve as a 'last defense' filter against local LTE / 4G interference.

Power supply 12 Vdc / 100 mA, 1 Input / 1 Output, Connector F. Triax LTE F 100/1

€24.81

Tax included

Reference triax-370102

Brand Triax

€24.81

IFP 101 power supply with LTE filter.

TRIAX IFP 101 are internal power supplies for mast preamps that also serve as a 'last defense' filter against local LTE / 4G interference.

Features

Simple installation, plugs into any EU VDE wall outlet.
F connectors for optimized shielding.
Indication with green LED light of network power supply.
White housing for the interior.
LTE filter from 6 to 23 dB (790-821 MHz).
It is possible to charge high current, 12 VDC, 100 Ma, for power supply, 230 VAC 50/60 Hz.

INFORMATIONS SUR LA COMMANDE
Code EAN	5702663701021
BANDE DE FRÉQUENCES
Bande passante	5-790 MHz
ATTÉNUATION
Rejection @ 821 MHz (LTE D6)	>18.0 dB
Pertes de passage	<2.0 dB
CARACTÉRISTIQUES ÉLECTRIQUES
Impédance	75 Ω
OPÉRATIONNEL
AC Tension d'alimentation	230 VAC
Tension de sortie	12 VDC
PSUmaxDCcurrent	100 mA
CONNECTEURS
Type de Connecteur	F-femelle
Nombre de sorties	1
MÉCANIQUE
Profondeur	40 mm
Profondeur brute	0,204 m
Hauteur brute	0,050 m
Poids brut	0,344 Kg
Largeur brute	0,090 m
Poids net	0,298 kg
Poids de l'emballage	0,046 Kg
Volume	0,001 m3
Largeur	140 mm
Hauteur	70 mm
