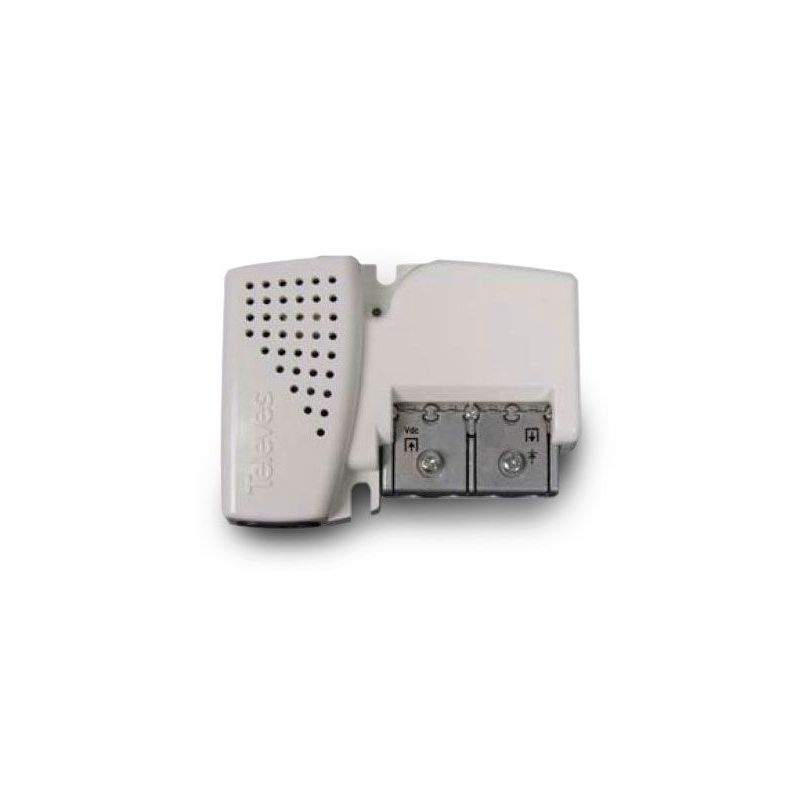

Power supply 1 In/1 Out 5...2500MHz 12Vdc-220mA Televes
- High performance switched-mode power supplies, up to 40% less energy consumption than traditional PSUs.
- A esthetic design and small size (86x65x26 mm). Fits into 100x100 mm connection boxes.
- Possibility of being fixed to the wall.
- EasyF connection. Complies with the bending radius of the coaxial cable.
€43.79
Tax included
Reference
televes-5796
Brand
Televes
Power supply 1 In/1 Out 5...2500MHz 12Vdc-220mA Televes
€43.79
- High performance switched-mode power supplies, up to 40% less energy consumption than traditional PSUs.
- A esthetic design and small size (86x65x26 mm). Fits into 100x100 mm connection boxes.
- Possibility of being fixed to the wall.
- EasyF connection. Complies with the bending radius of the coaxial cable.
| Reference | 5796 | ||
| Outputs | 1 | ||
| Frequency range | MHz | 5-2500 | |
| Insertion losses | using 1 output | dB | MATV: ≤ 1 SAT IF: 1.5 typ. |
| using 2 outputs | dB | ||
| Mains voltage (50/60 Hz) | Vac | 196-264 | |
| Output voltage | Vdc | 12 | |
| Output current | mA | 220 | |
| Connection type | easyF | ||
| Working temperature range | ºC | -10...+45 | |
| Protection Index | IP | 20 | |
| Dimensions (Wid x Hei x Dep) | mm | 86 × 65 × 26 | |
- High performance switched-mode power supplies, up to 40% less energy consumption than traditional PSUs.
- A esthetic design and small size (86x65x26 mm). Fits into 100x100 mm connection boxes.
- Possibility of being fixed to the wall.
- EasyF connection. Complies with the bending radius of the coaxial cable.
