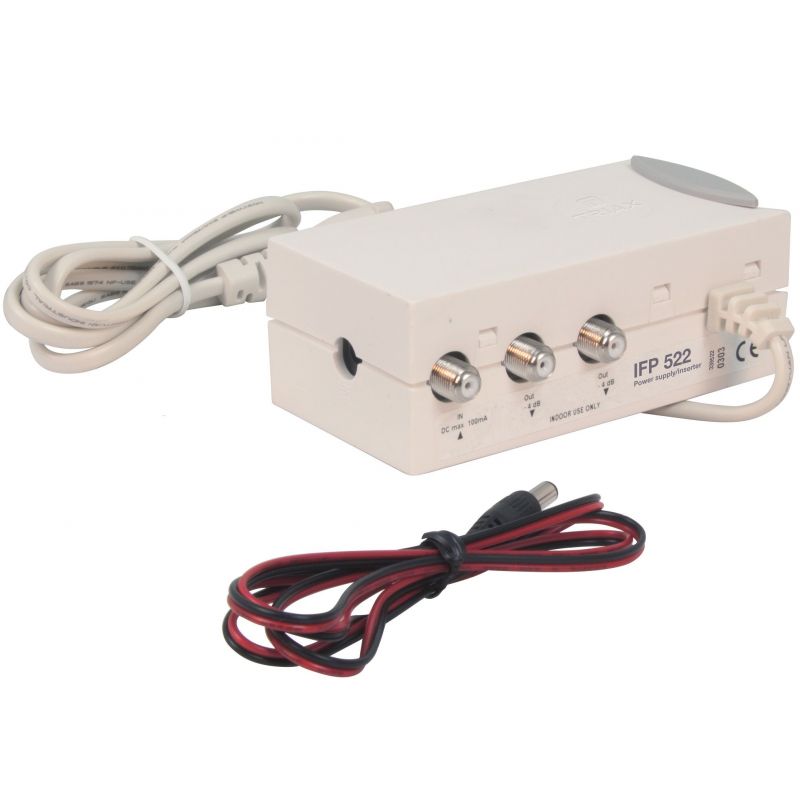

Triax IFP 522 Power Supply/Inserter 12Vdc for UFO150

Triax 12 Vdc Power Supply for UFO 150 Series Antennas. Indoor use only

€47.19
Tax included
Reference triax-339522
Brand Triax
Quantity
Available in 4/5 days

Free shipping
Triax IFP 522 Power Supply/Inserter 12Vdc for UFO150

Triax IFP 522 Power Supply/Inserter 12Vdc for UFO150

€47.19

This model is replaced by the Triax IFP 224

Triax 12 Vdc Power Supply for UFO 150 Series Antennas.

Main Features

  • 12 VDC / 85mA output on RF input for UFO 150
  • Automatic switch from 12 VDC to 220 VAC input upon availability
  • 1 x RF F-connector input from UFO 150 (12 VDC / 85 mA)
  • 2 x RF F-connector outputs for 2 x TV sets.
  • Signal insertion loss: 4dB.
  • Quick and easy installation
  • Install instruction already available on UFO 150 box and manual
  • Single packed in compact color retail cardboard box

Specs

CHARACTERISTICS
Type UFO 150
FREQUENCY
Band VHF/UHF
Frequency range 47-862 MHz
LOSS
Through loss 4 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
AC Supply voltage 230 VAC
Power Consumption (typ.) 3 W
PSU output DC voltage 12 VDC
PSU output max. DC current 85 mA
CONNECTORS
Connector Type F-female
Number of inputs 2
Number of outputs 2
MECHANICAL
Colour white
Packing QTY 1
Remarks f-connector/DC jack and red/black cable for battery
Packaging Volume 0,001 m3
Net Weight 0,315 kg
Tara Weight 0,030 kg
Total Weight 0,345 kg
Packaging Height 0,070 m
Packaging Width 0,110 m
Packaging Depth 0,150 m
