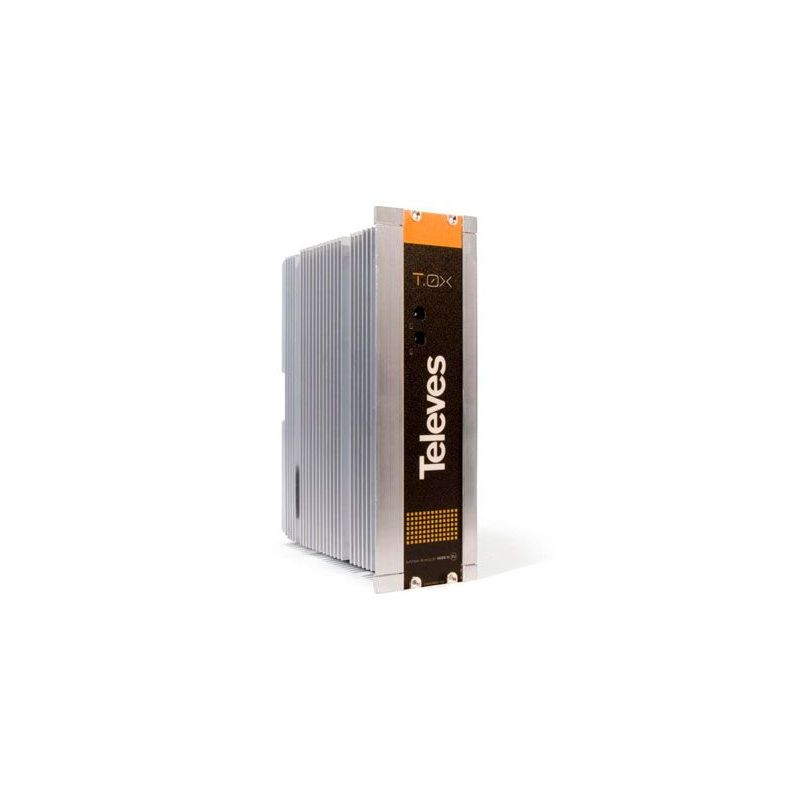

alimentation for T0X Televes
High power switched-mode PSU, flyback type, high efficiency (> 85%) and capable of delivering 5A at 24V (120W).
€296.30
Tax included
Reference
televes-5629
Brand
Televes
alimentation for T0X Televes
€296.30
High power switched-mode PSU, flyback type, high efficiency (> 85%) and capable of delivering 5A at 24V (120W).
Features
- Equipped with two outputs monitored by LEDs to indicate the status of the voltage delivered.
- Detects either overload or short-circuit.
- 4A maximum current per output.
- It offers protection against output voltage variation.
Specifications
| Reference | 5629 | ||||
| Mains voltage | V ( ~ ) | 196-253 | |||
| Frequency | Hz | 50 / 60 | |||
| Max. input current | A ~ | 1,35 | |||
| Maximum power | 140 | ||||
| Output voltage | V = | 24(1) | |||
| Max. output current | A = | 5(2) | |||
| Max. output power | W | 120 | |||
| Maximum working temp. | ºC | 45 | |||
| Protection Level | IP 20 | ||||
| Weight | g | 1368 | |||
| Dimensions | mm | 217,8x 164 x 70 | |||
(1) Provides protection voltage variation from 21 to 27V.
(2) Maximum current per output limited to 4A.
High power switched-mode PSU, flyback type, high efficiency (> 85%) and capable of delivering 5A at 24V (120W).
