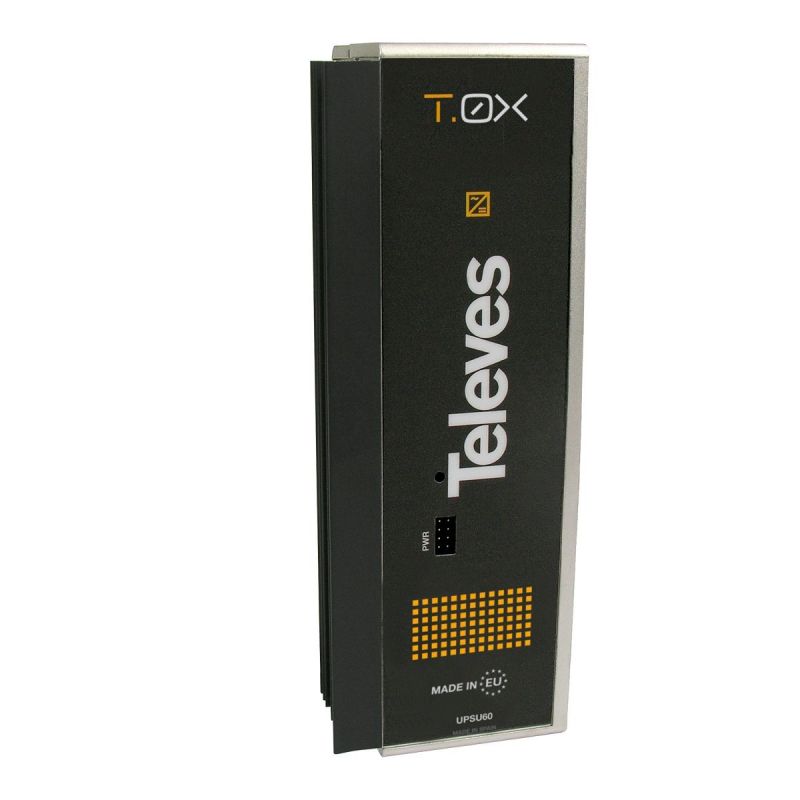

Switching Power Supply 60W 24V-2.5A Televes
High power switched-mode PSU, flyback type, high efficiency (> 85%) and capable of delivering 2.5A at 24V (60W), Equipped with two outputs monitored by LEDs to indicate the status of the voltage delivered, Detects either overload or short-circuit, It offers protection against output voltage variation.
€168.58
Tax included
Reference
televes-562910
Brand
Televes
Switching Power Supply 60W 24V-2.5A Televes
€168.58
High power switched-mode PSU, flyback type, high efficiency (> 85%) and capable of delivering 2.5A at 24V (60W).
Features
- Equipped with two outputs monitored by LEDs to indicate the status of the voltage delivered.
- Detects either overload or short-circuit.
- It offers protection against output voltage variation.
Specifications
| Reference | 562910 | ||||
| Mains voltage | V ( ~ ) | 196-253 | |||
| Frequency | Hz | 50 / 60 | |||
| Max. input current | A ~ | 0,65 | |||
| Maximum power | 70 | ||||
| Output voltage | V = | 24 | |||
| Max. output current | A = | 2,5 | |||
| Max. output power | W | 60 | |||
| Maximum working temp. | ºC | 45 | |||
| Protection Level | IP 20 | ||||
| Weight | g | 926 | |||
| Dimensions | mm | 198 x 92 x 70 | |||
High power switched-mode PSU, flyback type, high efficiency (> 85%) and capable of delivering 2.5A at 24V (60W), Equipped with two outputs monitored by LEDs to indicate the status of the voltage delivered, Detects either overload or short-circuit, It offers protection against output voltage variation.
