SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 5274 AND id_lang = 1 Triax TLC 8120 Kit LTE800 mast amplifier and 24VDC power supply 5...20 dB
Triax TLC 8120 Kit mast amplifier and 24VDC power supply
search
  • Triax TLC 8120 Kit mast amplifier and 24VDC power supply

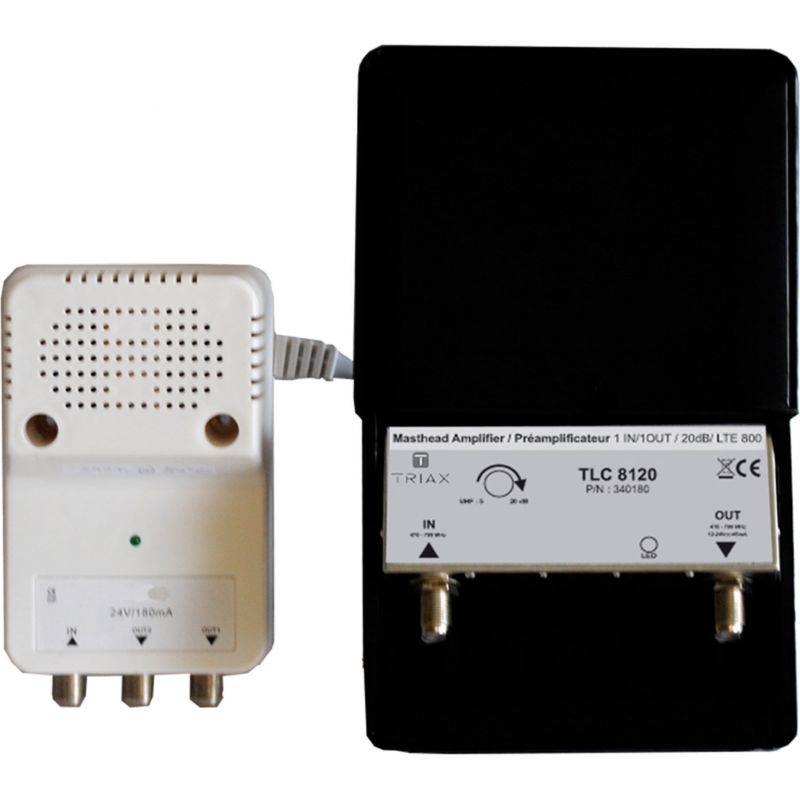

Triax TLC 8120 Kit LTE800 mast amplifier and 24VDC power supply 5...20 dB

Kit composed of mast amplifier TLC series and power supply series ALF 280 24Vdc and 180 mA. The mast amplifiers of the TLC series have 1 UHF input and 1 output and have an LTE filter with 800 MHz cut-off (LTE / 4G).

€36.00
Tax included
Reference triax-340180
Brand Triax
Quantity
Available in 4/5 days

Free shipping
Triax TLC 8120 Kit mast amplifier and 24VDC power supply

Triax TLC 8120 Kit LTE800 mast amplifier and 24VDC power supply 5...20 dB

€36.00

Kit consisting of mast amplifier TLC series and power supply series ALF 280 24Vdc and 180 mA. The mast amplifiers of the TLC series have 1 UHF input and 1 output and have an LTE filter with 800 MHz cut-off (LTE / 4G).

Characteristics

  • 20 dB gain
  • Gain regulation 0 - 15 dB
  • Output level of 103 dBuV.
  • 800 MHz LTE protection
  • Caja de plástico fabricada con materiales resistentes a los agentes atmosféricos.
  • Led indicador de funcionamiento.
  • Ganancia ajustable (0 - 15 dB).
  • Baja figura de ruido.
  • Alimentación de 12 a 24 Vcd.
  • Simple y fácil montaje en mástil o pared.

Specifications

FREQUENCY
[Input 1] - channels 21...60
[Input 1] - frequency 470...790 MHz
LTE protection 800
GAIN
[Input 1] - gain 5...20 dB
[Input 1] - noise figure 2.5 dB
LOSS OF RETURN
Return losses >10.0 dB
ELECTRICAL DATA
Impedance 75 Ω
OPERATIONAL
DC Working voltage 12...24 VDC
External PSU Incluida
Consumption of tension 45 mA
CONNECTORS
Connector Type F-female
Number of outputs 1
PACKING DETAILS
Depth Packing 0,058 m
Packing height 0,176 m
Total Weight 0,740 kg
Width Packing 0,228 m
Net weight 0,640 kg
Packaging quantity 1
Tara weight 0,100 kg
Volume Packaging 0,002 m3
