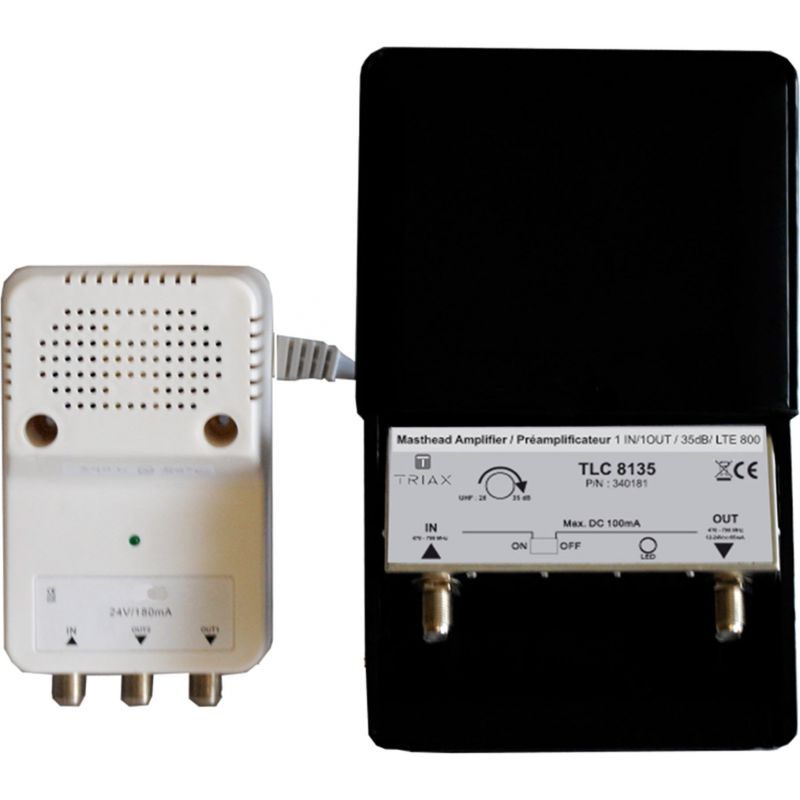

Triax TLC 8135 Kit LTE800 mast amplifier and 24VDC power supply 20...35 dB
Kit composed of mast amplifier TLC series and power supply series ALF 280 24Vdc and 180 mA. The mast amplifiers of the TLC series have 1 UHF input and 1 output and have an LTE filter with 800 MHz cut-off (LTE / 4G).
€40.54
Tax included
Reference
triax-340181
Brand
Triax
Triax TLC 8135 Kit LTE800 mast amplifier and 24VDC power supply 20...35 dB
€40.54
Kit consisting of mast amplifier TLC series and power supply series ALF 280 24Vdc and 180 mA. The mast amplifiers of the TLC series have 1 UHF input and 1 output and have an LTE filter with 800 MHz cut-off (LTE / 4G).
Characteristics
- 20 dB gain
- Gain regulation 0 - 15 dB
- Output level of 103 dBuV.
- 800 MHz LTE protection
- Plastic box made of materials resistant to atmospheric agents.
- Led operation indicator.
- Low noise figure
- Current step.
- Power supply from 12 to 24 Vdc.
- Simple and easy mounting on mast or wall.
Specifications
| FREQUENCY | |
|---|---|
| Input 1 - channels | 21...60 |
| Input 1 - frequency | 470...790 MHz |
| LTE protection | 800 |
| GAIN | |
| Input 1 - gain | 20...35 dB |
| Input 1 - noise figure | 3.5 dB |
| RETURN LOSS | |
| Return Loss | >10.0 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Operating voltage | 12...24 VDC |
| DC Passthrough | Yes (max. 100mA) |
| External PSU | Included |
| LED indicator | Yes |
| DC Current consumption | 55 mA |
| CONNECTORS | |
| Connector Type | F-female |
| Number of outputs | 1 |
| MECHANICAL | |
| Packaging Depth | 0,058 m |
| Packaging Height | 0,176 m |
| Total Weight | 0,740 kg |
| Packaging Width | 0,228 m |
| Net Weight | 0,640 kg |
| Packing QTY | 1 |
| Tara Weight | 0,100 kg |
| Packaging Volume | 0,002 m3 |
Kit composed of mast amplifier TLC series and power supply series ALF 280 24Vdc and 180 mA. The mast amplifiers of the TLC series have 1 UHF input and 1 output and have an LTE filter with 800 MHz cut-off (LTE / 4G).
