Triax TLC 7135 Kit LTE700 mast amplifier and 24VDC power supply
search
  • Triax TLC 7135 Kit LTE700 mast amplifier and 24VDC power supply

Triax TLC 7135 Kit LTE700 mast amplifier and 24VDC power supply 20...35 dB

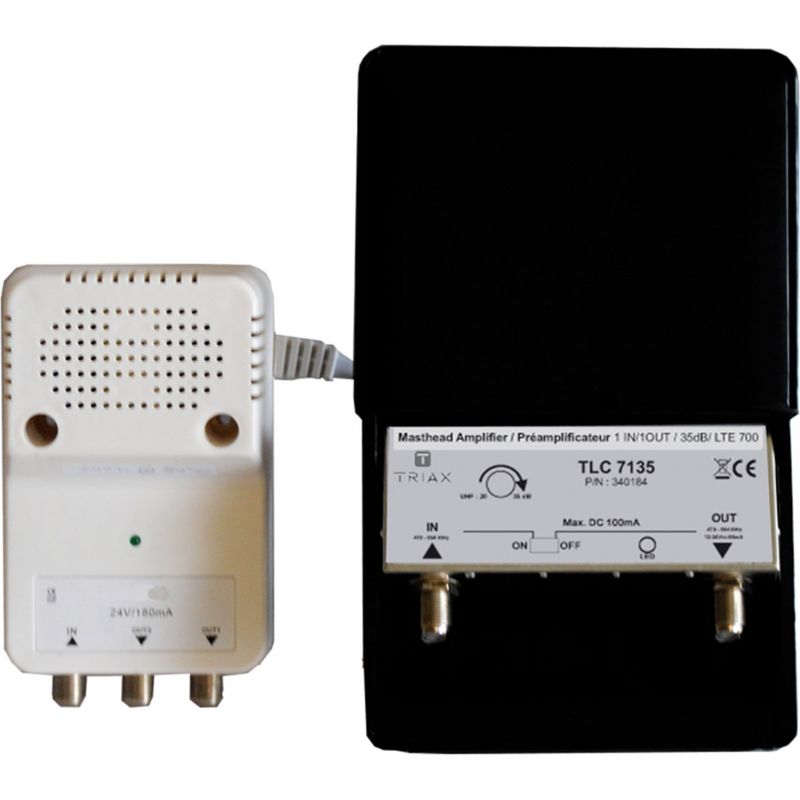

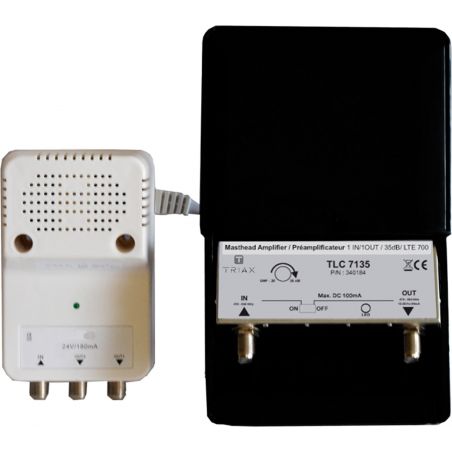

Kit composed of mast amplifier TLC series and power supply series ALF 280 24Vdc and 180 mA. The mast amplifiers of the TLC series have 1 UHF input and 1 output and have an LTE filter with 700 MHz cut-off (LTE/4G).

€42.59
Tax included
Reference triax-340184
Brand Triax
Quantity
Available Now

Free shipping
Triax TLC 7135 Kit LTE700 mast amplifier and 24VDC power supply

Triax TLC 7135 Kit LTE700 mast amplifier and 24VDC power supply 20...35 dB

€42.59

Kit consisting of mast amplifier TLC series and power supply series ALF 280 24Vdc and 180 mA. The mast amplifiers of the TLC series have 1 UHF input and 1 output and have an LTE filter with 700 MHz cut-off (LTE / 4G).

Characteristics

  • 20 dB gain
  • Gain regulation 0 - 15 dB
  • Output level of 103 dBuV.
  • 700 MHz LTE protection
  • Plastic box made of materials resistant to atmospheric agents.
  • Led operation indicator.
  • Low noise figure
  • Current step.
  • Power supply from 12 to 24 Vdc.
  • Simple and easy mounting on mast or wall.

Specifications

FREQUENCY
Input 1 - channels 21...48
Input 1 - frequency 470...694 MHz
LTE protection 700
GAIN
Input 1 - gain 20...35 dB
Input 1 - noise figure 3.5 dB
RETURN LOSS
Return Loss >10.0 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
DC Operating voltage 12...24 VDC
DC Passthrough Yes (max. 100mA)
External PSU Included
LED indicator Yes
DC Current consumption 55 mA
CONNECTORS
Connector Type F-female
Number of outputs 1
MECHANICAL
Packaging Depth 0,058 m
Packaging Height 0,176 m
Total Weight 0,740 kg
Packaging Width 0,228 m
Net Weight 0,640 kg
Packing QTY 1
Tara Weight 0,100 kg
Packaging Volume 0,002 m3
