SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 740 AND id_lang = 1 Televes PicoKom Power Supply 24V / 130mA Easy F
Fuente de Alimentación Televes Picokom 24V/130mA Easy F
search
  • Fuente de Alimentación Televes Picokom 24V/130mA Easy F

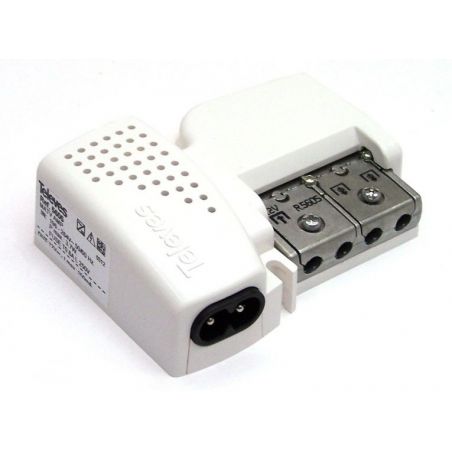

Televes Picokom Power Supply 24V / 130mA Easy F

New power supply Televes model 5795 that replaces the previous model 5495 improving its performance.

€32.74
Tax included
Reference televes-5795
Brand Televes
Quantity
Available in 24/48h

Free shipping
Fuente de Alimentación Televes Picokom 24V/130mA Easy F

Televes Picokom Power Supply 24V / 130mA Easy F

€32.74

New power supply Televes model 5795 that replaces the previous model 5495 improving its performance. Its design is based on the use of latest generation micro-components (1mm x 0.5mm) that allow to reduce the size of the devices as well as their electrical consumption. achieving a very small total size that makes them discreet and suitable for installation in registers of 100x100 and lower.

It has two asymmetric RF outputs where one can be directly connected to a TV and the other output to a distribution network.

In addition, the output power has increased from 100mA to 130mA

Features

  • Power supply of 130 mA / 24 Vdc with 2 easyF flange outputs to feed mast amplifiers or active elements through the coaxial cable.
  • The power supply (F. A.) of Televes model 5795 is an essential component in case of using amplifiers of masts or outside, MRD, or antennas HD Boss Tech.
  • High performance switched-mode power supplies, up to 40% less energy consumption than traditional PSUs.
  • A esthetic design and small size (86x65x26 mm). Fits into 100x100 mm connection boxes.
  • Possibility of being fixed to the wall.
  • EasyF connection. Complies with the bending radius of the coaxial cable.

Specifications

Outputs 2
 Frequency range MHz 5-862
 Insertion losses using 1 output dB MATV: < 2
SAT IF: <10
using 2 outputs dB MATV: < 4
SAT IF: < 6,5
 Mains voltage (50/60 Hz)  Vac 196-264
 Output voltage Vdc 24
 Output current mA 130
 Connection type easyF
 Working temperature range ºC -5...+45
 Protection Index IP 20
 Dimensions (Wid x Hei x Dep) mm 90 × 68 × 28
