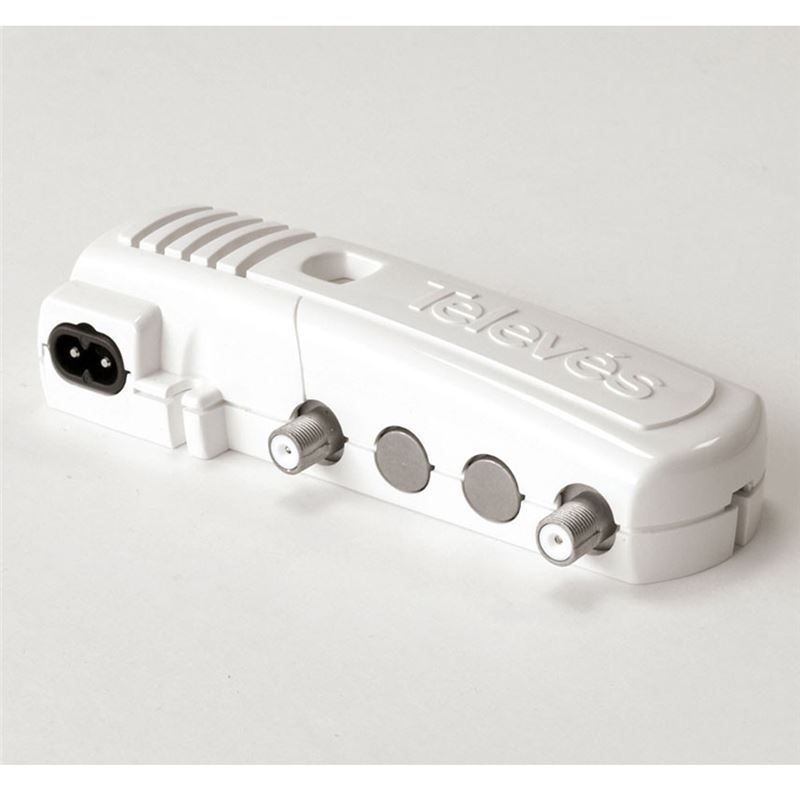

Power supply 130 mA 24V with F connector Televes
24V (130mA) home power supply, which sends power through the input coaxial cable, allowing the TV signal to pass through. It is sandwiched in the installation to power mast amplifiers or a BOSS system. In addition, it incorporates a distributor to generate two outputs.
€33.29
Tax included
Reference
televes-5504
Brand
Televes
Power supply 130 mA 24V with F connector Televes
€33.29
Power supply "F"
24V - 130mA, 2 outputs
24V (130mA) home power supply, which sends power through the input coaxial cable, allowing the TV signal to pass through. It is sandwiched in the installation to power mast amplifiers or a BOSS system. In addition, it incorporates a distributor to generate two outputs.
It also serves to feed MRD from antennas.
Stands out for
- High performance switching power supply: consumption savings of up to 40%
- Discreet, restrained design
- "F" connectors
- Fully automated manufacturing subjected to rigorous quality controls
Main features
- Screwable on wall
- The step losses vary depending on whether 1 or the 2 outputs are used
Specifications
| Frequency range | MHz | 5 - 862 | |
| Step losses | 1 out | dB | Main: 1.5 typ. / Aux: --- |
| 2 out | Main: 4 typ. / Aux: 4 typ. | ||
| Output voltage | V --- | 24 | |
| Current max. exit |
mA | 130 | |
| Current min. exit |
mA | 30 | |
| Feeding | 207-253V ~ 50 / 60Hz | ||
| Consumption max. | mA ~ | 35 | |
| Protection index | IP | twenty | |
| Operating temperature | ºC | -10 ... +45 | |
| Plug type | EU |
Application example
24V (130mA) home power supply, which sends power through the input coaxial cable, allowing the TV signal to pass through. It is sandwiched in the installation to power mast amplifiers or a BOSS system. In addition, it incorporates a distributor to generate two outputs.
