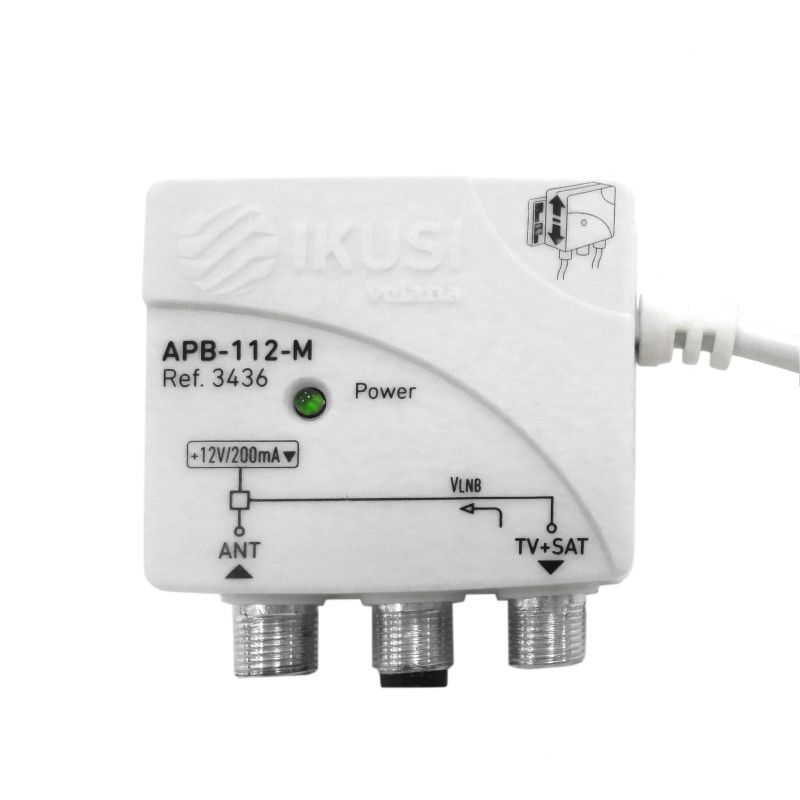

Ikusi APB-112-M Micro 12 V 200 mA power supply unit, 1 output

Power supplies “micro” APB series. Switch mode power supplies for mast amplifiers. Smaller size with terrestrial and satellite inputs.

€30.86
Tax included
Reference ikusi-3436
Brand Ikusi
Quantity
Available Now

Free shipping
Ikusi APB-112-M Micro 12 V 200 mA power supply unit, 1 output

Ikusi APB-112-M Micro 12 V 200 mA power supply unit, 1 output

€30.86

IKUSI APB-112-M. Power supplies “micro” APB series. Switch mode power supplies for mast amplifiers. Smaller size with terrestrial and satellite inputs.

Features

  • The smallest on the market.
  • It allows installation in any junction box.
  • Optimum power consumption. Low power switch mode.
  • Mounting without tools.
  • 1RF input connector + DC output port / 1 or 2 RF outputs ports.

Technical specifications

REF. 3436
Regulation type switch mode
Output 1
Mains voltage (50 Hz) VAC 100 - 240
Output voltage VDC +12 (±5%)
Output voltage mA 200
Frequency range MHz 47 - 2400
RF insertion loss dB ≤ 1.5
Current pass through mA 300
Efficiency % >70
Dimensions mm 50 x 50 x 25



Manual/Datasheet
