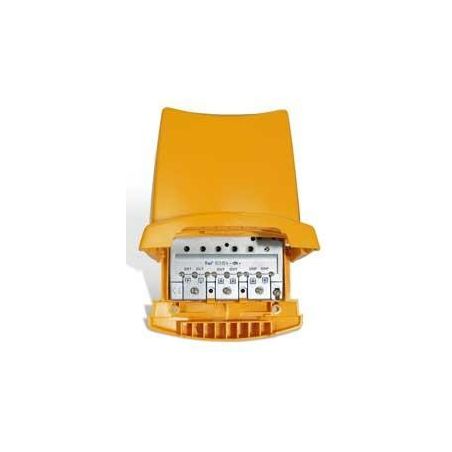

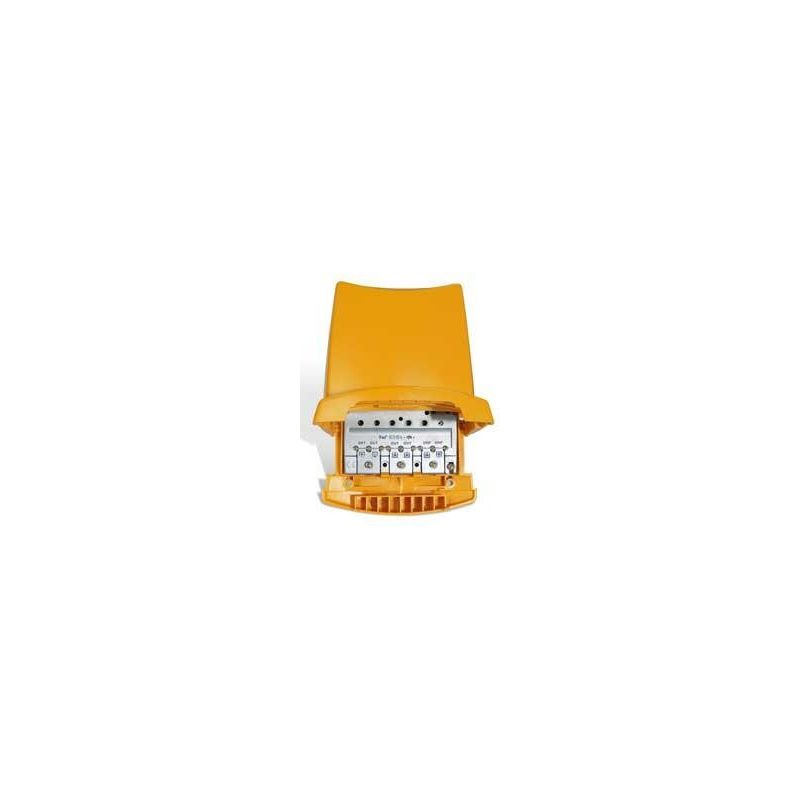

[Refurbished] Amplificador de mastro Televes 2e / 4s U / Vmix-FI mix 4s
The Televes 5354 mast amplifier has 2 inputs and 4 outputs that also allow the passage of the signal of a parabolic antenna, with an amplification power of 21db.
€20.50
€37.28
Save 45%
Tax included
Reference
televes-5354
Brand
Televes
[Refurbished] Amplificador de mastro Televes 2e / 4s U / Vmix-FI mix 4s
€20.50
€37.28
Save 45%
Wide range of mast amplifiers offering solutions for both terrestrial and satellite reception. Supplied in a weatherproof box made of ABS plastic.
Features
- High / Low gain versions. Products with satellite input.
- Automatic DC bypass to the inputs.
- User friendly design for easy of use.
- EasyF connection type.
- Weatherproof cases made of ABS plastic.
Specifications
| Reference | 5354 | |||||
| Inputs/ Bands | VHF | UHF | SAT | |||
| Frequency range | MHz | 47-254 | 470-862 | 950-2200 | ||
| Gain | dB | -9 | 20 | 12 | ||
| Gain adjustment range | dB | 0 | 15 | 0 | ||
| Noise figure | dB | - | 2.5 | - | ||
| Output level DIN45004B | dBµV | - | 93 | - | ||
| Max current through inputs | mA | - | 40 | 350 | ||
| Power supply | Vdc | 12...24 | ||||
| Current consumption | mA | 40 | ||||
| Protection index | IP | 23 | ||||
| Dimensions (Wid x Hei x Dep) | mm | 120 x 130 x 40 | ||||
The Televes 5354 mast amplifier has 2 inputs and 4 outputs that also allow the passage of the signal of a parabolic antenna, with an amplification power of 21db.
