SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 52SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 28743 AND id_lang = 1 Comelit comelit-6701W MONITOR MINI CON AURICULAR SIMPLEBUS2
Comelit comelit-6701W MONITOR MINI CON AURICULAR SIMPLEBUS2
search
  • Comelit comelit-6701W MONITOR MINI CON AURICULAR SIMPLEBUS2

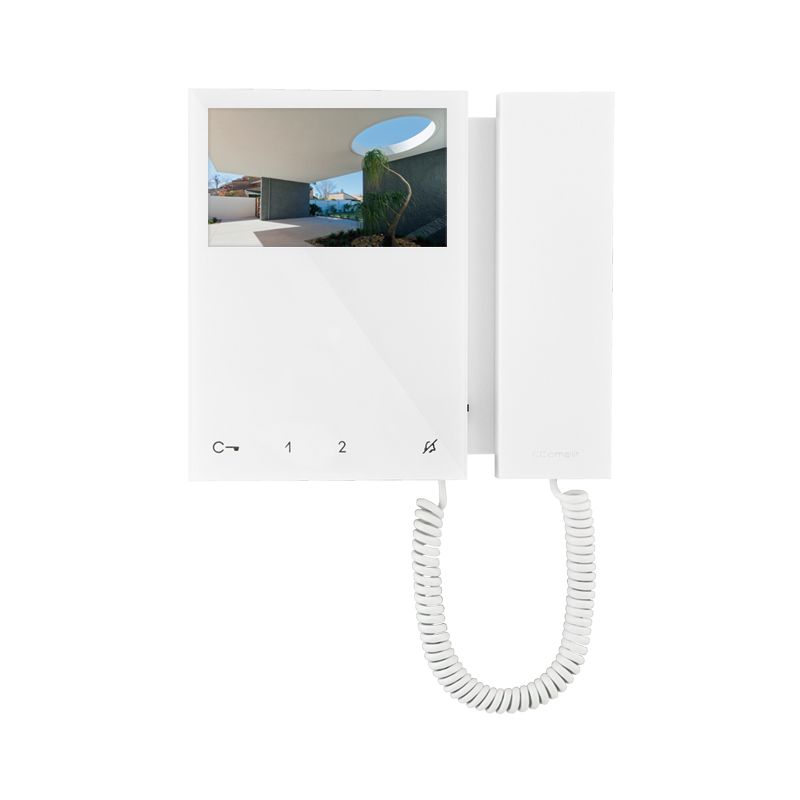

Comelit comelit-6701W MONITOR MINI CON AURICULAR SIMPLEBUS2

Wall-mounted colour monitor with 4.3 16:9 screen and handset. Allows brightness and contrast control, plus adjustment of the volume of the ringtone, which can be customised with a choice of different melodies. Equipped as standard with 4 soft touch buttons for door-opening, self activation,…
€414.09
Tax included
Reference comelit-6701W
Brand Comelit
Quantity
In Stock

Free shipping
Comelit comelit-6701W MONITOR MINI CON AURICULAR SIMPLEBUS2

Comelit comelit-6701W MONITOR MINI CON AURICULAR SIMPLEBUS2

€414.09

Wall-mounted colour monitor with 4.

3 16:9 screen and handset.

Allows brightness and contrast control, plus adjustment of the volume of the ringtone, which can be customised with a choice of different melodies.

Equipped as standard with 4 soft touch buttons for door-opening, self activation,…

System

https://staticpro.comelitgroup.com/storage/2020/10/26130/conversions/sb2-medium.png

Exemple d'application:

https://staticpro.comelitgroup.com/storage/2019/08/21643/conversions/villa-medium.png

Features

GENERAL DATA
Height (mm)160
Width (mm)175
Depth (mm)22
Product weight (g)600
Product colorWhite RAL9003
Type of finishing materialsABS
Wall-mountedYes
Desk base-mountedYes, with a dedicated accessory
COMPATIBLE SYSTEMS
Audio/video Simplebus 2 with power supply art. 4888CYes
Audio/video Simplebus 2 with power supply art. 1210/1210AYes
Simplebus 2 audio/video kit with power supply art. 1209Yes
DISPLAY
Display size (&4.3
Aspect Ratio16:9
Resolution (pixels)480x272
AUDIO FEATURES
Microphone6mm (Ø), Omnidirectional
Loudspeaker40 (ø) x 5.1 (H)mm, 100 ohm, 0.25W
ELECTRICAL CHARACTERISTICS
Type of power supplyPower supply from video door entry bus
Supply voltage22÷34 VDC (Bus)
Absorption in stand-by (W)0.13
Maximum absorption (W)7.3
HARDWARE FEATURES
Type of buttonsCapacitive
Service buttonsLock-release, Silent (Privacy), Door open
No. of programmable buttons for additional functions2 (6 with accessory art. 6733W)
ClampsL L CFP1 CFP2
Removable terminalsYes
SETTINGS
Ringtone volumeYes
Screen brightness controlYes
Screen colourYes
ENVIRONMENTAL AND COMPLIANCE FEATURES
IP protection ratingIP30
Operating temperature (°C)5 ÷ 40
Operating humidity (RH max) (%)25 ÷ 75
Environmental classI (B1)
CE certificationsRoHS II - 2011/65/UE (EN IEC 63000:2018), EMC 2014/30/UE (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
GENERAL FEATURES
Door openerYes
Automatic door opening on call (Doctor)Yes
Silent mode (Privacy)Yes
Self ActivationYes
CPS callYes
Intercom callsYes
Outside door call inputYes
Customisable ringtoneYes
Sending alarm callsYes
GENERAL FEATURES
Actuator controlYes
Multiple addressYes
Door open signalingYes
