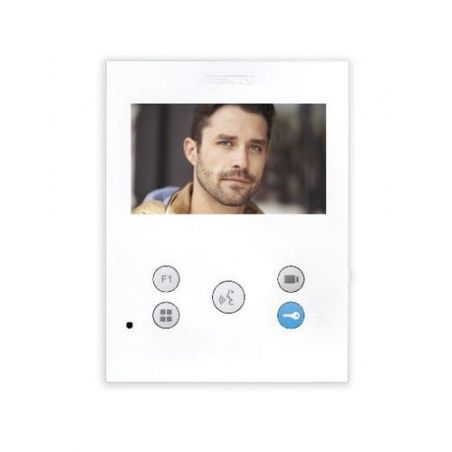

VEO-XS hands-free monitor. It is characterized by its reduced size and thickness, extra-flat.

Thanks to its OSD menu and the layout of the buttons, its interaction with the user is simple and intuitive. Made of high impact ABS plastic. Textured finish for easy cleaning and UV protection to make it more resistant to sunlight. VEO-XS features a 4.3 "(16: 9) widescreen color display. Its clean, clean, balanced design is distinctive, modern, and minimalist. VEO-XS blends into the environment. When a call comes through, the image appears automatically When the conversation button is pressed the conversation with the visitor begins The image disappears automatically after 90 seconds or when the button is pressed again To open the door press the key button.

Specifications

General characteristics

• Technology: DUOX PLUS (full digital 2-wire non-polarized)
• Audio / Video System: Audio / Video Color
• Mounting: Surface (request separate connector ref. 9447)
• Desktop support: Yes (ref. 9420)
• Hands-free communication: Yes
• Optional press-to-talk communication: Yes
• Inductive loop: No (request monitor ref. 9458 with inductive loop)
• Screen dimensions: 4.3 ”(16: 9 Panoramic)
• Screen resolution (H x V): 480 x 272
• Product Color: Matte White
• Total buttons: 5
• Push buttons type: Mechanical (silicone)
• Number of LEDs for light signals: 3 (red, blue, green with various states)

Terminal address programming

• From the terminal: From the OSD menu
• From the license plate or concierge: Yes
• From the plate through the doorbell (without entering the house): Yes

Features

• Automatic photo capture (PHOTOCALLER): Yes (1 photo / call, up to 150 photos, 368 x 288 pixels). This function can be enabled by the user. Disabled by default.
• Call to the concierge center: Yes (from the door open button)
• Self-ignition: Yes (up to 3 plates / cameras)
• On-screen OSD menu: Yes
• Button for additional function F1: Yes (sending negative and / or command)
• Additional function F2 from screen: Yes (command only, not negative)
• Door bell with differentiated plate melody: Yes
• Connection for devices add. (ext. of calls, act. of lights and bells, etc.): Yes (ref. 2040, ref. 2438, ref. 3267)
• Additional terminals with the same address: Yes, maximum 2 additional terminals (an additional power supply may be required)
• Doormatic (opening function for professionals): Yes (configurable up to 12 h). Green led activated

Adjustments

• Date and time: Yes
• Melody selection: Yes (5). Configurable for Plate 0 of block, Plate 1 of block, Plate 0 of General Entrance and Guard.
• Call volume regulation: Yes (10 levels per OSD menu and slider)
• Do not disturb function: Yes (via OSD menu) + Red led signaling
• Conversation Audio Volume Regulation: Yes (10 levels per OSD menu and slider)
• Brightness, contrast and color regulation: Yes (via OSD menu)

Technical characteristics

• Product dimensions (Width x Height x Depth mm): 125 x 165 x 21
• Time to answer or open since the call occurs: 30 s.
• Talk time: 90 s.
• Conversation privacy: Yes
• Supply voltage: 18-24 Vdc
• Maximum consumption (W): 6.5W (14.4W the ref. 9458 if inductive loop activated)
• Standby power consumption (W): 0.8 W
• Operating temperature (ºC, ºF), Humidity: [-5ºC, + 40ºC] [23ºF, 106ºF], [0%, 90%]
• Line adapter included in the monitor: Yes (A, C, default position OFF)
• Terminals: Bin, Bin, Bout, Bout, -, A +, F1, T
