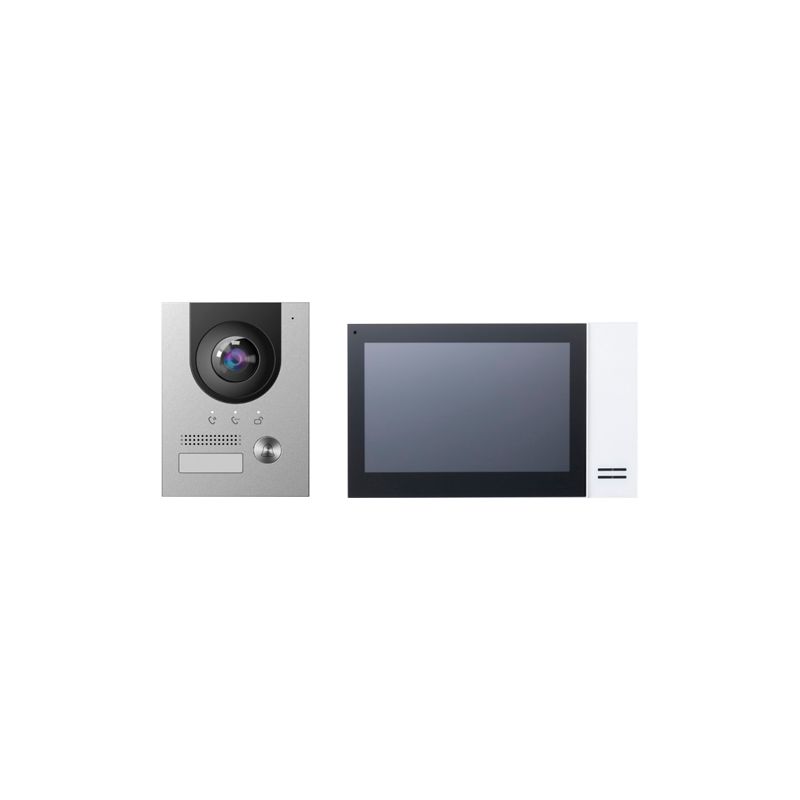

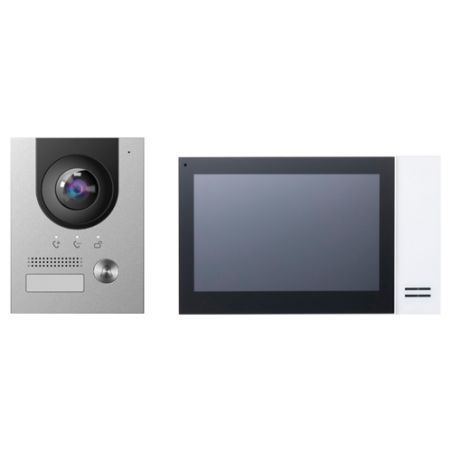

X-Security XS-VTK2202-IP - Video-intercom kit, IP and PoE Technology, Includes…
search
  • X-Security XS-VTK2202-IP - Video-intercom kit, IP and PoE Technology, Includes…

X-Security XS-VTK2202-IP - Video-intercom kit, IP and PoE Technology, Includes…

Video-intercom kit - IP and PoE Technology - Includes panel and monitor - PoE switch and bracket inc. - Mobile App with P2P - Surface mounting
€331.50 €510.00 Save 35%
Tax included
Reference XS-VTK2202-IP
Brand X-Security
Quantity
Available in 24/48h

Free shipping
X-Security XS-VTK2202-IP - Video-intercom kit, IP and PoE Technology, Includes…

X-Security XS-VTK2202-IP - Video-intercom kit, IP and PoE Technology, Includes…

€331.50 €510.00 Save 35%

You might also like

  • X-Security
  • Intercom Kit
  • IP Interface
  • Can be powered by PoE
  • Kit consisting of:
  • XS-V2202E-IP exterior video intercom panel with 2Mpx camera
  • XS-V2421M-IP-POE 7" LCD TFT interior monitor
  • Surface bracket for the panel
  • Switch from 4 PoE ports and 1 Uplink
  • 2 x PSU 12VDC
  • Monitoring using SmartPSS software or mobile App

Features

  • Video-intercom kit
  • IP and PoE Technology
  • Includes panel and monitor
  • PoE switch and bracket inc.
  • Mobile App with P2P
  • Surface mounting

Specs

Panel
Brand X-Security
Model XS-V2202E-IP
Operating system LINUX OS
Image sensor 2 MP CMOS HD low light
Lens 2 mm
Viewing angle D: 120º H:160º
Audio Bidirectional audio with microphone and speaker
Keypad Mechanical button with LED backlit name-tag
Outputs 1 for lock control, 1 alarm, 1 tamper, 1 12V/100mA output
Inputs 1 alarm, 1 door status, 1 Eoc, 1 push button
Remote access Web browser, Mobile App or SmartPSS software
Network interface Ethernet 10/100 BaseT
Power DC 12 V / 1A max. / (802.3af) PoE
Degree of protection IP65, IK07
Material Aluminum Alloy
Temp. operation -30º C ~ +60º C
Dimensions 130 (H) x 96 (W) x 28.5 (D) mm
Weight 350 g

Monitor
Brand X-Security
Model XS-V2421M-IP-POE
Operating system LINUX OS
LCD 7" 1024x600, Capacitive
Operation mode Tactile Buttons
Inputs 6 Configurable alarm entries
Audio Two-way audio with microphone and speaker with noise cancellation
Remote access Mobile App or SmartPSS software
Memory Internal 8GB / Allows MicroSD up to 32 GB
Network interface Ethernet 10/100 BaseT
Power DC 12 V / 500 mA max. / (802.3af) PoE
Temp. operation -10º C ~ +55º C
Dimensions 119.6 (H) x 211.5 (W) x 21.5 (D) mm
Weight 350 g

Package content

  • Outdoor video intercom panel
  • Surface bracket for the panel
  • Interior monitor
  • PoE Switch
  • Power supply

Data sheet

Weight
350 g
Power
DC 12 V / 1A max. / (802.3af) PoE
DC 12 V / 500 mA max. / (802.3af) PoE
Temp. operation
-10º C ~ +55º C
-30º C ~ +60º C
Degree of protection
IP55, IK07
Dimensions
119.6 (H) x 211.5 (W) x 21.5 (D) mm
119.6 (H) x 211.5 (W) x 21.5 (D) mm
130 (H) x 96 (W) x 28.5 (D) mm
Inputs
1 alarm, 1 door status, 1 Eoc, 1 push button
6 Configurable alarm entries
Outputs
1 for lock control, 1 alarm, 1 tamper, 1 12V/100mA output
Power supply
DC 12 V / 1A max. / (802.3af) PoE
Material
Aluminum Alloy
Audio
Bidirectional audio with microphone and speaker
Two-way audio with microphone and speaker with noise cancellation
Operating system
LINUX OS
Memory
Internal 8GB / Allows MicroSD up to 32 GB
Internal 8GB / Allows MicroSD up to 32 GB
Image sensor
2 MP CMOS HD low light
Lens
2 mm
Viewing angle
D: 120º H:160º
Remote access
Mobile App or SmartPSS software
Web browser, Mobile App or SmartPSS software
Network interface
Ethernet 10/100 BaseT
LCD
7\" 1024x600, Capacitive
Operation mode
Tactile Buttons
Keypad
Mechanical button with LED backlit name-tag
