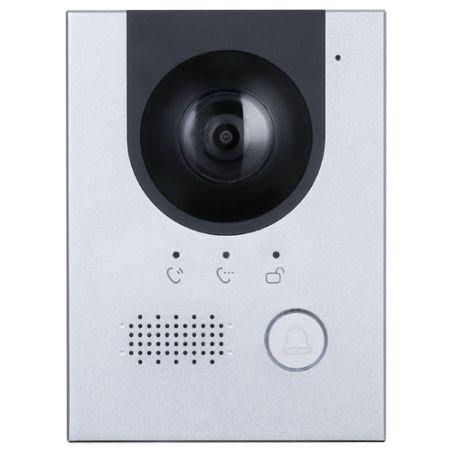

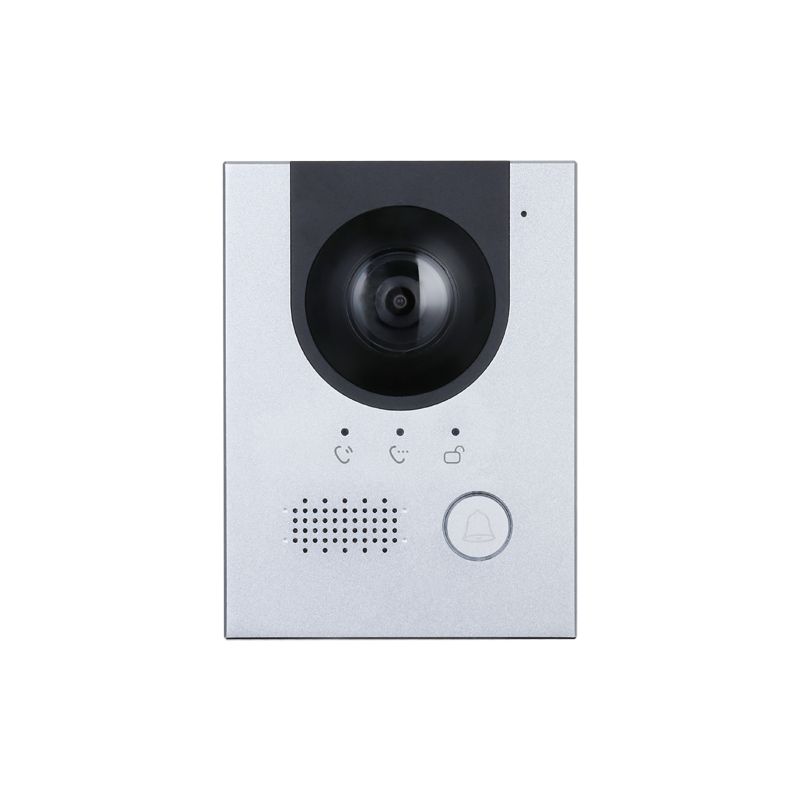

X-Security XS-V2202E-IP - Video intercom system 2 wires or IP, Camera 2Mpx, IR…
search
  • X-Security XS-V2202E-IP - Video intercom system 2 wires or IP, Camera 2Mpx, IR…

X-Security XS-V2202E-IP - Video intercom system 2 wires or IP, Camera 2Mpx |…

Video intercom system 2 wires or IP - Camera 2Mpx | Bidirectional Audio - IR night vision - Can be powered by PoE - Suitable for exterior IP65 - Anodized Aluminum sabotage resistant
€210.00
Tax included
Reference XS-V2202E-IP
Brand X-Security
Quantity
Available in 24/48h

Free shipping
X-Security XS-V2202E-IP - Video intercom system 2 wires or IP, Camera 2Mpx, IR…

X-Security XS-V2202E-IP - Video intercom system 2 wires or IP, Camera 2Mpx |…

€210.00

You might also like

  • X-Security
  • IP Video Intercom and 2 Wires with Camera 2Mpx
  • Wide angle lens
  • Integrated speaker and microphone
  • IR night vision
  • TCP/IP Connection
  • Compatible with XS-V2003B-2IP
  • Remote monitoring via Smart PSS software, Mobile App or interior monitor
  • Remote door opening
  • Flush or surface mounting
  • LED status indicator
  • Can be powered by PoE
  • Sabotage-resistant anodised aluminium surface

Features

  • Video intercom system 2 wires or IP
  • Camera 2Mpx | Bidirectional Audio
  • IR night vision
  • Can be powered by PoE
  • Suitable for exterior IP65
  • Anodized Aluminum sabotage resistant

Specs

Brand X-Security
Image sensor 2.0 Megapixel CMOS
Lens 1.95mm
Viewing angle H:160º
Audio Two-way audio with microphone and speaker and status LED
Keypad Mechanical call button
Outputs 1 for lock control. Second door opening with the RS485 accessory . Power supply output 12V 100mA. Alarm output
Inputs Exit button, feedback, sensor
Remote access Web browser, Mobile App or SmartPSS software
Communication 2-hilos or TCP/IP with PoE technology
Network interface Available with XS-V2003B-2IP accessory
Power DC 48 V / 1000 mA max. / Standard PoE
Degree of protection IP65, IK07
Material Stainless steel
Temp. operation -30º C ~ +60º C
Dimensions 130 (H) x 96 (W) x 28.5 (D) mm
Weight 350 g

Package content

  • Outdoor video intercom panel
  • User instructions

Data sheet

Weight
350 g
Power
DC 12 V / 1000 mA max. / Standard PoE
DC 48 V / 1000 mA max. / Standard PoE
Temp. operation
-30º C ~ +60º C
Degree of protection
IP55, IK07
IP65, IK07
Dimensions
130 (H) x 96 (W) x 28.5 (D) mm
Inputs
Exit button, feedback, sensor
Outputs
1 for lock control. Second door opening with the RS485 accessory . Power supply output
1 for lock control. Second door opening with the RS485 accessory . Power supply output 12V 100mA. Alarm output
1 for the mail lock. Second door opening with the RS485 accessory . Power supply output
Power supply
DC 12 V / 1000 mA max. / Standard PoE
Material
Stainless steel
Communication
2-hilos or TCP/IP Technology
2-hilos or TCP/IP with PoE technology
Audio
Two-way audio with microphone and speaker and status LED
Image sensor
2.0 Megapixel CMOS
Lens
1.95mm
Viewing angle
H:160º
Remote access
Web browser, Mobile App or SmartPSS software
Network interface
Available with VTNS1006A-2 accessory
Available with XS-V2003B-2IP accessory
Keyboard
Mechanical call button
Keypad
Mechanical call button
