SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 115SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 10114 AND id_lang = 1 X-Security XS-V3221E-IP - IP Video Intercom for villa, Camera 2Mpx,…
X-Security XS-V3221E-IP - IP video intercom for apartments, Camera 2Mpx,…
search
  • X-Security XS-V3221E-IP - IP video intercom for apartments, Camera 2Mpx,…

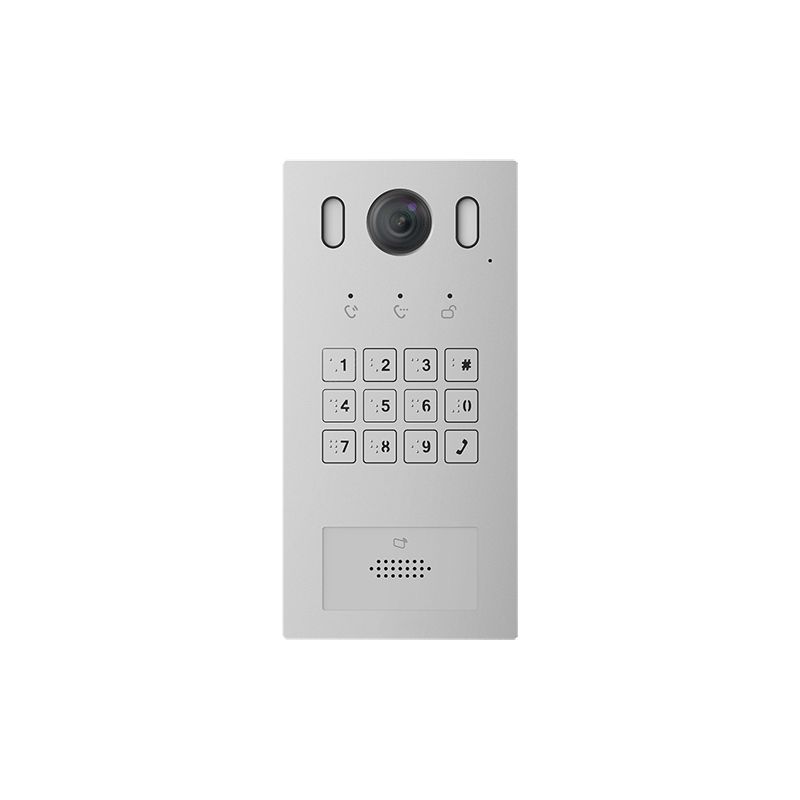

X-Security XS-V3221E-IP - IP Video Intercom for villa, Camera 2Mpx,…

IP Video Intercom for villa - Camera 2Mpx - Bidirectional audio - Mobile App for remote monitoring - Access by code or MF card - Powered via standard PoE
€360.00
Tax included
Reference XS-V3221E-IP
Brand X-Security
Quantity
Out-of-Stock

Free shipping

You might also like

  • X-Security
  • IP video intercom phone with camera 2Mpx CMOS
  • Adjustable wide angle lens
  • Integrated speaker and microphone
  • TCP/IP Connection
  • Remote monitoring via software, mobile app or internal monitor
  • Remote door opening
  • Surface-mounted or recessed with bracket
  • Access keypad and MF card reader from Access Control
  • Can be powered by PoE
  • Anti-vandal aluminium alloy surface

Features

  • IP Video Intercom for villa
  • Camera 2Mpx
  • Bidirectional audio
  • Mobile App for remote monitoring
  • Access by code or MF card
  • Powered via standard PoE

Specs

Brand X-Security
Operating system LINUX OS
Image sensor 1/2.9" 2.0 Megapixel CMOS
Lens 2 mm
Viewing angle H: 140º D: 82º
Audio Bidirectional audio with microphone and speaker
Access Controls Keyboard and MF Card 13,56MHz
Keypad Mechanical push button panel with Braille
Relay 1 for lock control.
Inputs Output button and power loop.
Remote access Mobile App or SmartPSS software
Network interface TCP/IP
Power DC 12 V / 2000 mA max / PoE(802.3af)
Degree of protection IP55 y IK08
Material Aluminium
Temp. operation -40º C ~ +60º C
Dimensions 200 (H) x 98 (W) x 32 (D) mm
Weight 1500 g

Package content

  • Outdoor video intercom panel
  • Mounting material
  • User instructions

Data sheet

Weight
1500 g
Power
DC 12 V / 2000 mA max / PoE(802.3af)
Temp. operation
-40º C ~ +60º C
Degree of protection
IP55 y IK08
Dimensions
200 (H) x 98 (W) x 32 (D) mm
Inputs
Output button and power loop.
Power supply
DC 12 V / 2000 mA max / PoE(802.3af)
Material
Aluminium
Audio
Bidirectional audio with microphone and speaker
Operating system
LINUX OS
Image sensor
1/2.9\" 2.0 Megapixel CMOS
Lens
2 mm
Relay
1 for lock control.
1 for the mail lock.
Viewing angle
H: 140º D: 82º
Remote access
Mobile App or SmartPSS software
Network interface
TCP/IP
Keyboard
Mechanical push button panel with Braille
Access Controls
Keyboard and MF Card 13,56MHz
Keyboard and MIFARE Card 13,56MHz
Keypad and Mifare Card 13,56MHz
Keypad
Mechanical push button panel with Braille
