X-Security XS-V2101E-IP-V2 - Video intercom IP, Camera 2Mpx wide-angle with WDR,…

Video intercom IP - Camera 2Mpx wide-angle with WDR - Bidirectional audio - Mobile App for remote monitoring - IK10 protection anti-vandal - Surface mounting | PoE
€176.00
Tax included
Reference XS-V2101E-IP-V2
Brand X-Security
Quantity
Out-of-Stock

Free shipping
  • X-Security
  • IP video door phone with camera 2Mpx WDR
  • Lens 2.8 mm wide angle
  • Integrated speaker and microphone
  • IR night vision
  • TCP/IP Connection
  • Remote monitoring via Smart PSS software, Mobile App or interior monitor
  • Remote door opening
  • Surface mounting
  • Call button
  • Can be powered by PoE
  • Vandal-proof stainless steel finish
  • Suitable for outdoor IP65 and IK10 anti-vandal

Features

  • Video intercom IP
  • Camera 2Mpx wide-angle with WDR
  • Bidirectional audio
  • Mobile App for remote monitoring
  • IK10 protection anti-vandal
  • Surface mounting | PoE

Specs

Brand X-Security
Operating system LINUX OS
Image sensor 1/2.7" 2 Megapixel CMOS WDR
Lens 2.8 mm
Viewing angle H: 100º Adjustable: -45º ~ +45º
Audio Bidirectional audio with microphone and speaker
Keypad Mechanical call button
Relay 1 for lock control. Second door opening with the DEE1010B accessory
Inputs Output button and power loop.
Remote access Web browser, Mobile App or SmartPSS software
Network interface Ethernet 10/100 BaseT and SIP
Power DC 12 V / 850 mA max. / IEEE802.3af PoE
Degree of protection IP65, IK10
Material Stainless steel
Temp. operation -40º C ~ +60º C
Dimensions 163 (H) x 73 (W) x 54.5 (D) mm
Weight 800 g

Package content

  • Outdoor video intercom panel
  • Ethernet cable connector
  • User instructions

Data sheet

Weight
2180 g
Power
DC 12 V, 10 W
Dimensions
101 (H) x 151 (W) x 65 (D) mm
120 (H) x 120 (W) x 37 (D) mm

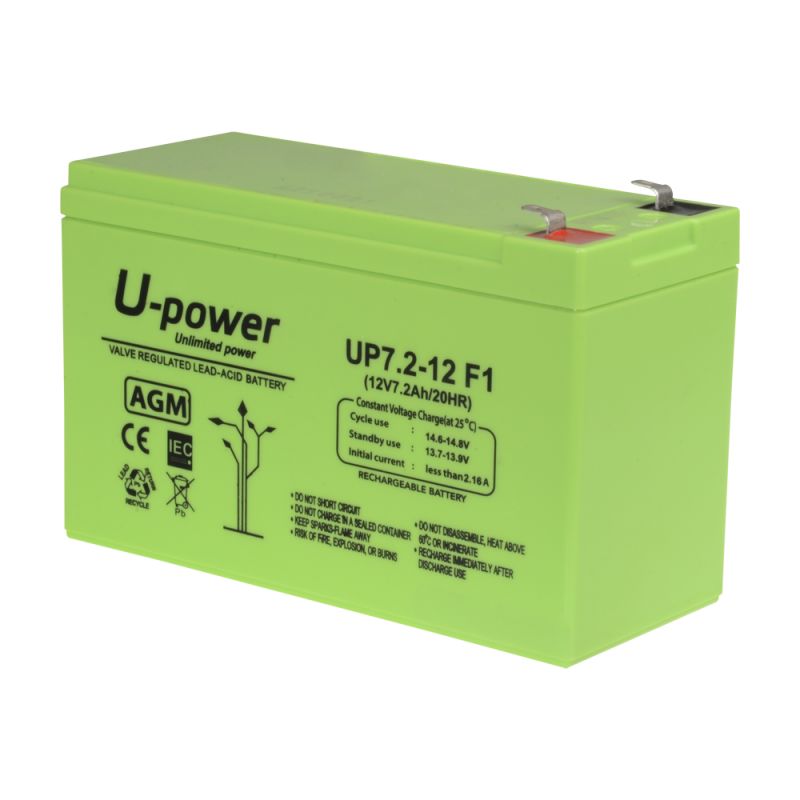

Nominal voltage
12 V
Nominal capacity
7.2 Ah (20HR)
Standby use
13.5 ~ 13.8 V
Cyclic use
14.4 ~ 15.0 V
Initial intensity
≤ 2.16 A
Maximum discharge intensity
108 A max.
Internal resistance
18 mΩ
Connection type
F1
