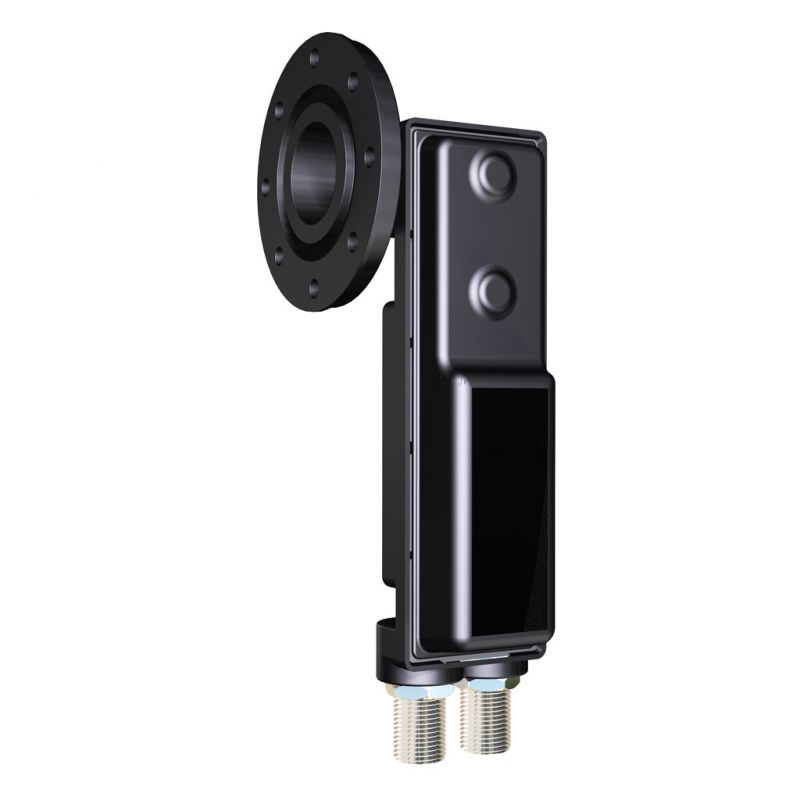

LNB Inverto Pro Twin Flange

LNB Universal Twin tipo FLANGE, sin guía de ondas, con entrada C-120 (Foco centrado), para su uso en reposición en antenas tipo prime-focus. Bajo ruido de fase, compatible DVB-S2 (HDTV). Bajo consumo de energía. Aislamiento de polarización cruzada. Estabilidad en altas frecuencias.

28,57 €
Impuestos incluidos
Referencia Inverto-3214
Marca Inverto
Cantidad
Disponible en 24/48h

Free shipping
LNB Inverto Pro Twin Flange 3214 IDLB-TWNF00-OOPRO-OPP

LNB Inverto Pro Twin Flange

28,57 €

También podría interesarle

Diseñado específicamente para los mercados DTH europeos, este LNB ofrece capacidades de recepción optimizadas. Permite la recepción de señales de un satélite y su distribución a un máximo de dos Set Top Boxes con un solo sintonizador (o un STB con Twin Tuner). Está listo para transmisiones de alta definición y proporciona un excelente rendimiento de la figura de ruido. Diseñado para cumplir con las estrictas especificaciones y fabricado con los más altos estándares de calidad de la industria, este LNB es una solución ideal para la recepción de radiodifusión por satélite en toda Europa.

Características

  • Ruido de baja fase, compatible con DVB-S2 (HDTV)
  • Figura de bajo ruido
  • Bajo consumo de energía
  • Aislamiento de alta polarización cruzada
  • Estabilidad de alta frecuencia

Especificaciones

Inverto IDLB-TWNF00-OOPRO-OPP
Low Band Input Frequency Range 10.7 ~ 11.7 GHz
Low Band Output Frequency Range 950 ~ 1950 MHz
Low Band LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 ~ 12.75 GHz
High Band Output Frequency Range 1100 ~ 2150 MHz
High Band LO Frequency 10.6 GHz
Noise Figure 0.2 dB
LO Initial Accuracy +/- 1.0 MHz Max.
LO Temperature Drift +/- 3.0 MHz Max.
Phase Noise (@ 10 kHz) - 80 dBc / Hz Max.
Conversion Gain 55 dB Min.
Gain Ripple (Over 26MHz Bandwidth) +/- 0.75 dB
Gain Variation (Over Full Band)  +/- 4 dB Max.
Image Rejection 40 dB Min.
1 dB Compression Point (@ Output) 0.0 dBm Min.
Cross Polarization Isolation 22 dB Min.
Control Signal Ca (Vertical Polarization) 10.0 ~ 14.0 V
Control Signal Cb (Horizontal polarization) 16.0 ~ 20.0 V
Control Signal Cc (Band Switching) 22 +/- 4 kHz
Output VSWR 2.5 : 1
In-Band Spurious - 60 dBm Max.
Current Consumption 120 mA Max. @ 11 ~ 20 V
Operating Temperature - 30 °C  ~  + 60 °C
Output Impedance 75 Ω
Output Connector F-Type (Female)
Weight 180 g
