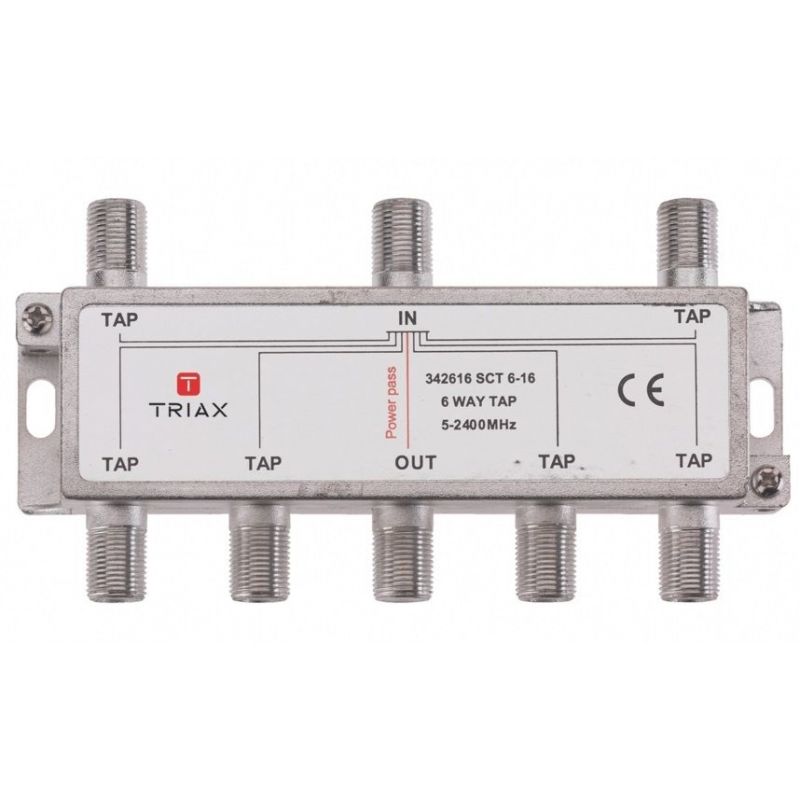

Triax SCT 6-16 Derivador de 6 salidas 16dB
Derivador de 6 salidas y 16dB de atenuación, con conectores F, 5-2400 MHz, ideal para redes de distribución SAT-FI y MATV.
10,29 €
Impuestos incluidos
Referencia
triax-342165
Marca
Triax
Triax SCT 6-16 Derivador de 6 salidas 16dB
10,29 €
Derivador Triax ideal para redes de distribución SAT-FI y MATV.
Características
- Rango de frecuencia 5-2400 MHz
- Paso de corriente DC a través del IN-OUT
- Alta protección
- Pérdida de retorno Grado 3
- Carcasa de fundición inyectada de alta calidad (Sn) recubierta
- Según normas EN 50083-2 y EN 60728-4
- Anteriormente triax-342616
Especificaciones
| SCT 6-16 | |
| SHIELDING | |
| Shielding effeciency VHF/UHF | > 110 dB |
| CHARACTERISTICS | |
| Type | COAX tap |
| FREQUENCY | |
| Frequency range | 5...2400 MHz |
| LOSS | |
| Tap Loss (in-tap) 1000-2150 MHz | 18.0 (± 2.5) dB |
| Tap loss (in-tap) 2150-2400 MHz | 18.0 (± 3.0) dB |
| Tap loss (in-tap) 40-1000 MHz | 16.0 (± 1.5) dB |
| Tap loss (in-tap) 5-40 MHz | 16.0 (± 1.5) dB |
| ISOLATION | |
| Isolation (out-tap) 1000-2150 MHz | 24 dB |
| Isolation (out-tap) 2150-2400 MHz | 23 dB |
| Isolation (out-tap) 40-1000 MHz | 28 dB |
| Isolation (out-tap) 5-40 MHz | 28 dB |
| Isolation (tap-tap) 1000-2150 MHz | 23 dB |
| Isolation (tap-tap) 2150-2400 MHz | 23 dB |
| Isolation (tap-tap) 40-1000 MHz | 23 dB |
| Isolation (tap-tap) 5-40 MHz | 26 dB |
| RETURN LOSS | |
| Return Loss (in-out) 1000-2150 MHz | 12.0 dB |
| Return loss (in-out) 2150-2400 MHz | 12.0 dB |
| Return loss (in-out) 40-1000 MHz | 12.0 dB |
| Return loss (in-out) 5-40 MHz | 11.0 dB |
| Return Loss (tap) 1000-2150 MHz | 12.0 dB |
| Return loss (tap) 2150-2400 MHz | 12.0 dB |
| Return loss (tap) 40-1000 MHz | 13.0 dB |
| Return loss (tap) 5-40 MHz | 13.0 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Certification | CE, RoHS |
| DC Passthrough | Yes IN-OUT (max. 500mA) TAPS DC blocked |
| Screening Efficiency | Class A |
| CONNECTORS | |
| Connector Type | F-female |
| Number of inputs | 1 |
| Number of outputs | 1 |
| Number of taps | 6 |
| MECHANICAL | |
| Product Depth | 17 mm |
| Extra high bracket (Optional) | 2 x BL-Brackets Large 6-8 T&S (Art.No.342102) |
| Packaging Depth | 0,120 m |
| Packaging Height | 0,020 m |
| Total Weight | 0,122 kg |
| Packaging Width | 0,070 m |
| Net Weight | 0,122 kg |
| Packing QTY | 1 |
| Product Width | 119 mm |
| Product Height | 65 mm |
