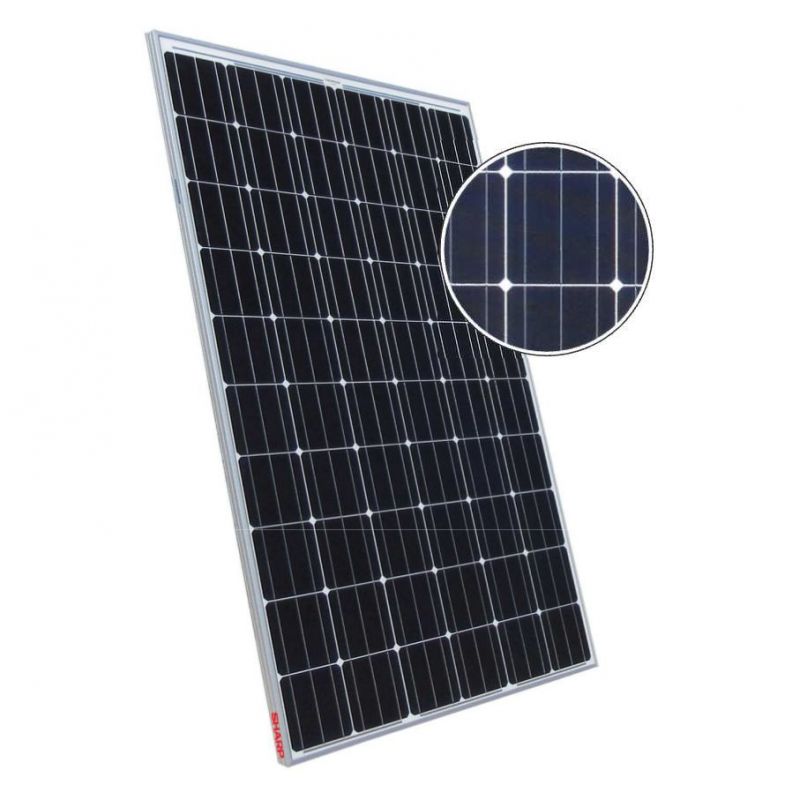

Panel solar monocristalino SHARP 300W
SHARP NU-RC300. Panel solar monocristalino de 300W.
738,10 €
Impuestos incluidos
Referencia
tecatel-ES-NURC300
Marca
Sharp
Panel solar monocristalino SHARP 300W
738,10 €
SHARP NU-RC300. Panel solar monocristalino de 300W.
Especificaciones
| General | |
| Nominal output (Wp) | 300 |
| Module Performance (%) | 18.3 |
| Mechanical data | |
| Cell size (mm) ² | 156 |
| Number of cells and connections | 60 in series |
| Dimensions (Length x Width x Width) (mm) | 1660x990x50 |
| Weight (kg) | twenty |
| Maximum mechanical load (N / m2) | 2400 |
| Electrical characteristics | |
| Open short-circuit voltage Vca (V) | 39.4 |
| Short-circuit current Icc (A) | 9.97 |
| Maximum power supply voltage (V) | 31.2 |
| Maximum supply current (A) | 9.63 |
| System voltage (V DC) | 1000 |
| Characteristics and thermal coefficients | |
| αPm (% / ° C) | -0.40 |
| αIsc (% / ° C) | 0.05 |
| αVoc (% / ° C) | -0.29 |
| Operating temperature (° C) | -40 to +85 |
| Storage temperature (° C) | -40 to +85 |
Descargas
PDF Guarantee
PDF Installation Manual
PDF Datasheet
ZIP Certificates
