SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 283 AND id_lang = 3 Triax RG11 716 Cable coaxial aluminio negro exterior bobina de 305 metros
Cable coaxial RG11 716 aluminio negro exterior bobina de 305 metros
search
  • Cable coaxial RG11 716 aluminio negro exterior bobina de 305 metros

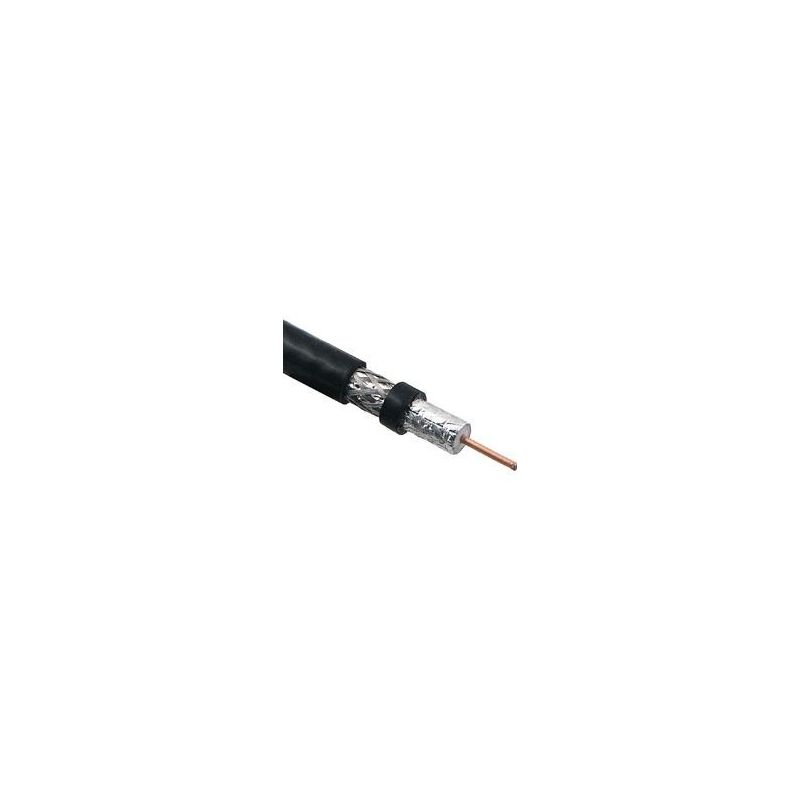

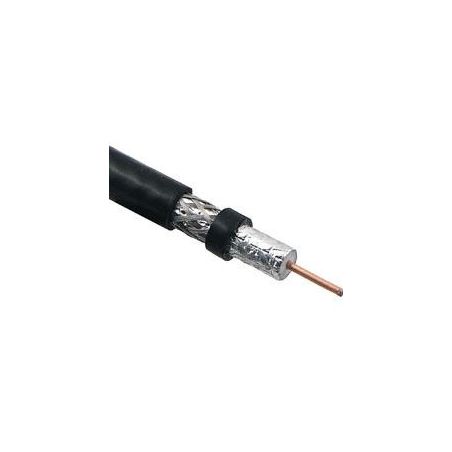

Triax RG11 716 Cable coaxial aluminio negro exterior bobina de 305 metros

Bobina de 305 metros de cable coaxial triax RG11 716 aluminio negro para exterior.

664,29 €
Impuestos incluidos
Referencia triax-197716300
Marca Triax
Cantidad
Disponible en 4/5 días

Free shipping
Cable coaxial RG11 716 aluminio negro exterior bobina de 305 metros

Triax RG11 716 Cable coaxial aluminio negro exterior bobina de 305 metros

664,29 €

Los cables Triax RG 11 son ideales para largos tendidos de cable en, por ejemplo, edificios residenciales. Los cables Triax RG11 están fabricados con materiales de alta calidad para garantizar una gran estabilidad durante muchos años. Los cables están altamente protegidos para proteger la calidad de la señal.

Especificaciones

ORDER INFORMATION
EAN Number 5702661501173
CONSTRUCTION
Inner conductor - material Cu
Inner conductor - dimension 1.63 ± 0.01 mm
Dielectric - material PEG
Dielectric - dimension 7.2 ± 0.15 mm
Shield (First) foil 1 – material Al/Pet tape - bonded
Shield (First) foil 1 – overlap 20 %
Shield (Second) – braid material CuSn
Shield (Second) – braid coverage 75 ± 3 %
Third shield – foil 2 – material Al/Pet/Al tape
Jacket – dimension 10.16 ± 0.15 mm
Jacket - material PE
SHIELDING
Screening attenuation @ 30-1000 MHz > 90 dB
Screening attenuation @ 1000-2000 MHz > 75 dB
Screening attenuation @ 2000-3000 MHz > 65 dB
CHARACTERISTICS
Type COAX 10mm
LOSS
Attenuation (at 20°C) @ 5 MHz 1.25 dB
Attenuation (at 20°C) @ 50 MHz 2.85 dB
Attenuation (at 20°C) @ 200 MHz 5.84 dB
Attenuation (at 20°C) @ 470 MHz 9.31 dB
Attenuation (at 20°C) @ 862 MHz 13.15 dB
Attenuation (at 20°C) @ 1000 MHz 14.27 dB
Attenuation (at 20°C) @ 1350 MHz 16.99 dB
Attenuation (at 20°C) @ 1750 MHz 19.80 dB
Attenuation (at 20°C) @ 2150 MHz 22.40 dB
Attenuation (at 20°C) @ 2400 MHz 23.95 dB
Attenuation (at 20°C) @ 3000 MHz 27.46 dB
RETURN LOSS
Structural return loss @ 5-470 MHz > 20 dB
Structural return loss @ 470-1000 MHz > 18 dB
Structural return loss @ 1000-2000 MHz > 16 dB
Structural return loss @ 2000-3000 MHz > 15 dB
ELECTRICAL
Impedance 75 ± 3 Ω
Capacity 53 pF/m
Velocity ratio 83 %
Inner DC resistance < 9 Ω/km
Outer DC resistance < 12 Ω/km
OPERATIONAL
Application Outdoor
Screening Efficiency EN50117 (Class A)
MECHANICAL
Cable length 305 m
Minimum bending radius - single/repeated 38/100 mm
Colour Black
