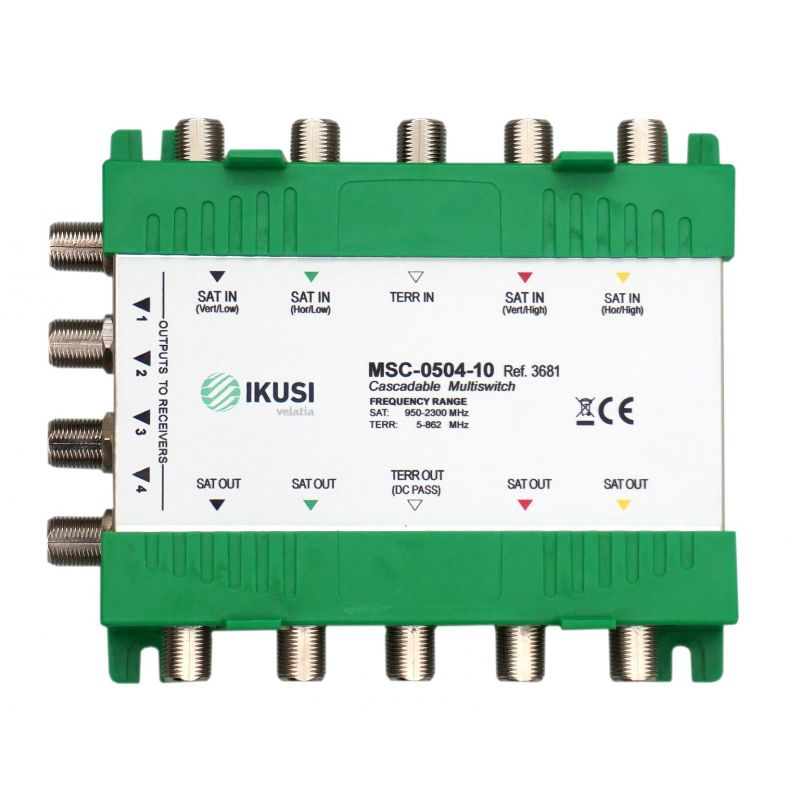

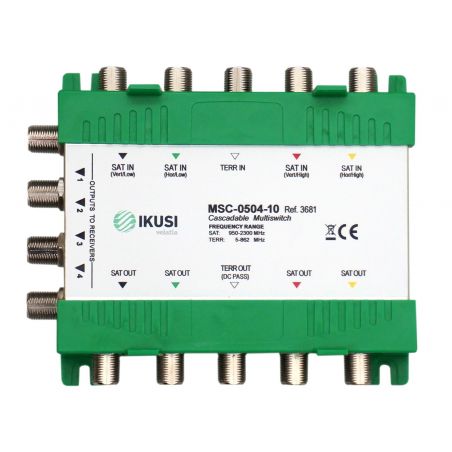

Ikusi MSC-0504-05 - Multiswitch cascadable 5 entradas 4 salidas -5dB
search
  • Ikusi MSC-0504-05 - Multiswitch cascadable 5 entradas 4 salidas -5dB

Ikusi MSC-0504-10 - Multiswitch cascadable 5 entradas 4 salidas -10dB

Multientradas de satélite + entrada terrestre pasivo, alimentación externa o desde el receptor SAT, 5 entradas de las cuales 4 de satelite y 1 de terrestre,  4 salidas para el usuario.

130,20 €
Impuestos incluidos
Referencia ikusi-3681
Marca Ikusi
Cantidad
Disponible en 24/48h

Free shipping
Ikusi MSC-0504-05 - Multiswitch cascadable 5 entradas 4 salidas -5dB

Ikusi MSC-0504-10 - Multiswitch cascadable 5 entradas 4 salidas -10dB

130,20 €

Multientradas de satélite + entrada terrestre pasivo, alimentación externa o desde el receptor SAT, 5 entradas de las cuales 4 de satelite y 1 de terrestre,  4 salidas para el usuario.

Especificaciones

MODEL

MSC-0504-05

MSC-0504-10

MSC-0508-05

MSC-05082A-10

MSC-0512-05

MSC-0512-10

MSC-0516-05

MSC-0516-10

REF.

3680

3681

3682

3683

3684

3685

3686

3687

Number of entries

5 (4 SAT + 1 TERR)

Number of Outputs

5

Number of outputs for the user

4

4

8

8

12

12

16

16

SAT frequency band

MHz

950-2300

950-2300

950-2300

950-2300

950-2300

950-2300

950-2300

950-2300

TERR frequency band

MHz

5 - 862

5 - 862

5 - 862

5 - 862

5 - 862

5 - 862

5 - 862

5 - 862

Insertion losses SAT trunk line

dB

2

2

2

2

2

2

2

2

Insertion losses TERR trunk line

dB

3

3

3

3

3

3

3

3

Insertion loss SAT user line

dB

5

10

5

10

10

10

10

10

TERR lead insertion loss

dB

18

21

21

24

22

22

22

22

Disconnection between H / V polarities at the user outputs

dB

25

25

25

25

25

25

25

25

Disconnection between L / H bands at the user outputs

dB

30

30

30

30

22

22

22

22

Decoupling between trunk lines

dB

30

30

30

30

30

30

30

30

Maximum input level SAT

dBμV

90

90

90

90

90

90

90

90

TERR Maximum Input Level

 dBμV

110

110

110

110

110

110

110

110

SAT user maximum output level

dBμV

85

85

85

80

80

80

80

80

TERR Maximum User Level

dBμV

92

89

89

86

85

85

85

85

Consumption of receivers

mA

fifty

fifty

fifty

fifty

fifty

fifty

fifty

fifty

Operating temperature

oC

-30 ... +70

-30 ... +70

-30 ... +70

-30 ... +70

-30 ... +70

-30 ... +70

-30 ... +70

-30 ... +70

Dimensions (W x D x H)

cm

12.7 x 10.4 x 4.1

12.7 x 10.4 x 4.1

13.5 x 10.4 x 4.1

13.5 x 10.4 x 4.1

13.5 x 10.4 x 4.1

13.5 x 10.4 x 4.1

13.5 x 10.4 x 4.1

13.5 x 10.4 x 4.1
