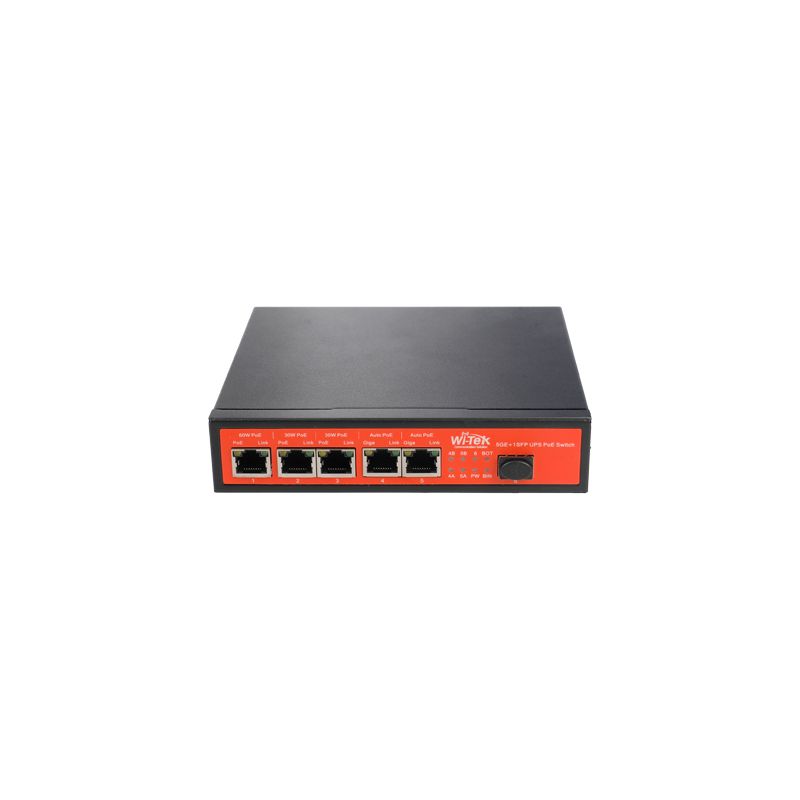

SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 105SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 20426 AND id_lang = 3 SW0605POE-GF-120W-UPS - Switch PoE, 5 ports PoE + 1 SFP, Vitesse des ports…
SW0605POE-GF-120W-UPS - Switch PoE, 5 puertos PoE + 1 SFP, Velocidad de…
search
  • SW0605POE-GF-120W-UPS - Switch PoE, 5 puertos PoE + 1 SFP, Velocidad de…

SW0605POE-GF-120W-UPS - Switch PoE, 5 ports PoE + 1 SFP, Vitesse des ports…

Switch PoE - 5 ports PoE + 1 SFP - Vitesse des ports 10/100/1000 Mbps - 60W port 1 / 30W port 2-5 / Maximum 120W - PoE/PoE+/HiPoE IEEE802.3af/at/bt et Passif 24V - Prend en charge une batterie de secours 12V ou 24V
Referencia SW0605POE-GF-120W-UPS
Marca Branded
Cantidad

Free shipping
  • Switch de bureau
  • 5 ports RJ45 10/100/1000 Mbps + 1 SFP
  • Supporte une alimentation PoE jusqu'à 120W au total pour tous les ports
  • Jusqu'à 60W sur le port 1
  • Compatible avec PoE/PoE+/HiPoE IEEE802.3af/at/bt et Passif 24V
  • Contrôleur batterie UPS et panneau solaire (non inclus)
  • Sortie DC 18-30 V avec batterie 12 V (non inclus)
  • Sortie DC 30-36 V avec batterie 24 V (non inclus)

Caracteristicas

  • Switch PoE
  • 5 ports PoE + 1 SFP
  • Vitesse des ports 10/100/1000 Mbps
  • 60W port 1 / 30W port 2-5 / Maximum 120W
  • PoE/PoE+/HiPoE IEEE802.3af/at/bt et Passif 24V
  • Prend en charge une batterie de secours 12V ou 24V

Especificaciones

Interface 5 ports PoE RJ45 10/100/1000 Mbps + 1 SFP Gigabit
Vitesse de port RJ45 5x 10/100/1000M
Vitesse du port SFP 1x Gigabit
Source d'énergie électrique Jusqu'à 60W (Hi-POE) port 1 et un maximum de 30W entre les ports 2 er 5 (120 W pour tous les dispositifs)
Caractéristiques PoE Selon la norme IEEE 802.3bt Hi-PoE / IEEE 802.3at PoE+ / IEEE 802.3af PoE
Caractéristiques PoE passif 24 V ports 4-5 (auto-détectable)
Fonction UPS Alimentation électrique ininterrompue via le contrôleur de batterie 12 V ou 24 V 50Ah (batterie non incluse)
Sorties alimentation DC 18-30 V (avec batterie 12 V) ou DC 30-36V (avec batterie 24 V)
Contrôleur de panneau solaire Avec batterie 12V: DC 15-30V maximum 250 W (centrale non inclus)
Avec batterie 24V: DC 30-44V maximum 250 W (centrale non inclus)
Alimentation DC 24V / 2A
Température de fonctionnement -20º C - 60º C
Dimensions 158 (Pr) x 35 (H) x 142 (L) mm

Contenido del paquete

  • Switch
  • Adaptateur secteur
  • Mode d'emploi

Ficha técnica

Potencia
DC 24V / 2A
Dimensiones
158 (Fo) x 35 (Al) x 142 (An) mm
Temperatura de funcionamiento
-20º C - 60º C
Alimentación
Hasta 60W (Hi-POE) en el puerto 1 y hasta un máximo de 30W entre los puertos 2 y 5 (120 W para todo el dispositivo)
Características PoE
Según norma IEEE 802.3bt Hi-PoE / IEEE 802.3at PoE+ / IEEE 802.3af PoE
Interfaz
5 puertos PoE RJ45 10/100/1000 Mbps + 1 SFP Gigabit
Salidas de alimentación
DC 18-30 V (con batería 12 V) o DC 30-36V (con batería 24 V)
Función UPS
Alimentación ininterrumpida mediante controladora para batería 12 V o 24 V 50Ah (batería no incluida)
Velocidad puertos RJ45
5x 10/100/1000M
Velocidad puerto SFP
1x Gigabit
Características PoE Pasivo
24 V puertos 4-5 (autodetectable)
Controladora panel solar
Con batería 12V: DC 15-30V máximo 250 W (panel no incluido)
