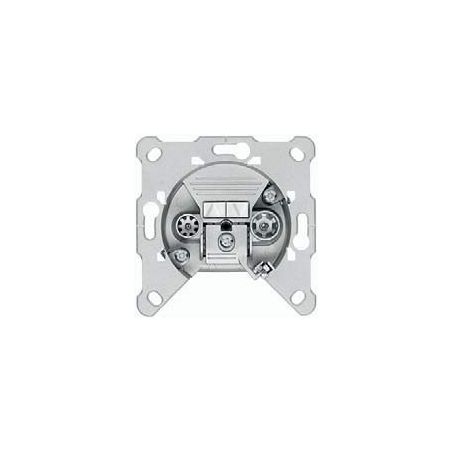

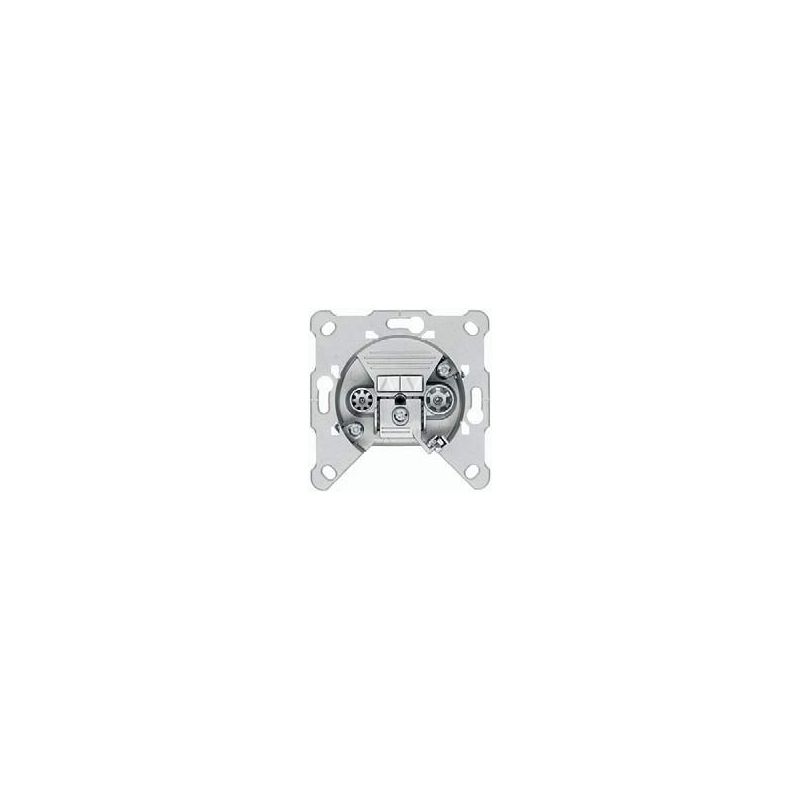

Triax GEDU Prise de distribution 10dB (5 à 2400 MHz dans les deux entrées)
Pas moyen pour les signaux TV et SAT. Idéal pour les installations de distribution domestique CATV et SAT-FI. Faible perte de passage Atténuation de branche 10 dB. Retour canal.
11,20 €
TTC
Référence
triax-306211
Marque
Triax
Triax GEDU Prise de distribution 10dB (5 à 2400 MHz dans les deux entrées)
11,20 €
Pas à pas pour les signaux TV et SAT
Caractéristiques
- Idéal pour les installations de distribution domestique CATV et SAT-FI
- Pertes de faible niveau
- Atténuation de branche 10 dB
- Retour canal
Spécifications
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663062115 |
| SHIELDING | |
| Shielding @ 1000...2400 MHz | ≥ 55.0 dB |
| Shielding @ 300-470 MHz | ≥ 80.0 dB |
| Shielding @ 30-300 MHz | ≥ 85.0 dB |
| Shielding @ 470-1000 MHz | ≥ 75.0 dB |
| CHARACTERISTICS | |
| Outlet Type | Loop through |
| FREQUENCY | |
| Frequency Range IN-OUT | 5...2150 (2400) MHz |
| Frequency Range RF | 5...2150 (2400) MHz |
| Frequency Range TV | 5...2150 (2400) MHz |
| LOSS | |
| Through Loss IN-OUT @SAT | 3.8 ±0.4 dB |
| Through Loss IN-OUT | 2.2 ±0.4 dB |
| Through Loss IN-RF | 10.0 dB |
| Through Loss IN-TV | 10.0 dB |
| ISOLATION | |
| Isolation OUT-FM | 30.0 dB |
| Isolation OUT-TV | 30.0 dB |
| Isolation TV-FM | >36.0 dB |
| RETURN LOSS | |
| Return Loss FM | 15.0 dB |
| Return Loss IN | 15.0 dB |
| Return Loss OUT | 18.0 dB |
| Return Loss TV | 15.0 dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| Screening Efficiency | EN50083-2 (Class A) |
| Operating temperature range | -25...+55 °C |
| MTBF (mean time between failures) | >1.000.000 hours |
| Temperature - shipping | -40...+70 °C |
| Temperature - storage | -25...+55 °C |
| CONNECTORS | |
| Adaptable Cable Diameters - Inner Conductor | 0.58...1.15 mm |
| Adaptable Cable Diameters - F-female | 0.6...1.13 mm |
| Adaptable Cable Diameters- Jacket | 4.5...7.2 mm |
| Adaptable Cable Diameters - Outer Conductor | 3.7...5.8 mm |
| Connector type data | F-female (IEC 60 169-24) |
| Connector IN-OUT | Spring Clamp Termination |
| Connector RF | IEC-female |
| Connector TV | IEC-male |
| MECHANICAL | |
| Main Material | Zinc die-cast |
| Dimensions product (H x D x W) | 70.6 x 70.6 x 21.9 mm |
| Packaging Depth | 0,071 m |
| Packaging Height | 0,035 m |
| Total Weight | 0,105 kg |
| Packaging Width | 0,071 m |
| Net Weight | 0,096 kg |
| Packing QTY | 10 |
| Remarks | Wideband socket box with Sat IF range. Continuous frequency ranges 5 to 2400 MHz on both outlets (universal socket box). Advantage: Upgrading or retrofitting of the wideband house network with direct satellite reception always possible. |
| Tara Weight | 0,009 kg |
| Tensile Strength - Inner Conductor 2 (Ø) | > 50 @ 1.13mm N/mm2 |
| Tensile Strength - Inner Conductor 1 (Ø) | > 25 @ 0.75mm N/mm2 |
