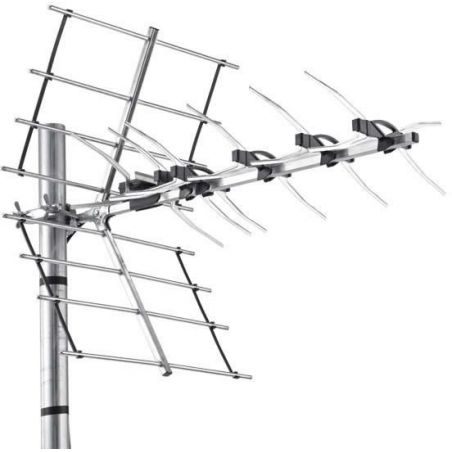

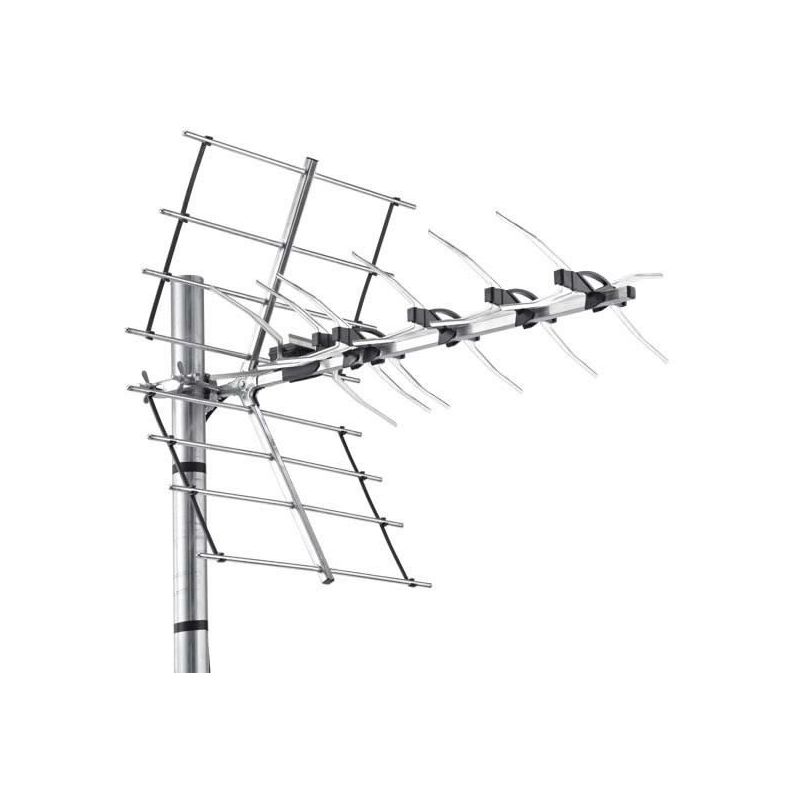

Antenne UHF UNIX32 avec filtre LTE Triax avec 32 éléments pour C21 / C60 (G- 12,5 dB)

Antenne UHF avec filtre LTE à 32 éléments pour C21 / C60 (G- 12,5 dB)

61,40 €
TTC
Référence triax-108441
Marque Triax
Quantité
Disponible dans 4/5 jours

Free shipping

Antenne UHF UNIX32 avec filtre LTE Triax avec 32 éléments pour C21 / C60 (G- 12,5 dB)

61,40 €

Antenne UHF avec filtre LTE à 32 éléments pour C21 / C60 (G- 12,5 dB)

Caractéristiques

  • Performances de gain et de rejet inégalées.
  • Conçu pour recevoir des signaux TNT (TV numérique terrestre) dans la gamme 470-790 MHz (chapitre 21-60).
  • Rejette les signaux 4G / LTE dans la gamme 791-862 MHz en utilisant le "système passe-bas d'antenne" de Triax.
  • Maison dipôle scellée avec connecteur F pointant vers l'arrière pour une performance optimale du signal TV.
  • Résistant aux conditions climatiques extrêmes (en alliage d'aluminium, de magnésium et de manganèse).
  • Supports réglables pour mâts jusqu'à 60 mm.
  • Type de support: Support de mât arrière.
  • Emballage: boîte de couleur individuelle, 5 pcs dans le carton externe

Spécifications

ORDER INFORMATION
EAN Number 5702661055027
CHARACTERISTICS
Type UNIX 32
FREQUENCY
Band B IV/V UHF
Channels 21...60
Frequency range UHF 470...790 MHz
LTE protection 800
GAIN
Gain @ 474 MHz (Ch. 21) 8.5 dBi
Gain @ 538 MHz (Ch. 29) 11,0 dBi
Gain @ 730 MHz (Ch. 53) 12.5 dBi
Gain @ 786 MHz (Ch. 60) 10.0 dBi
Gain @ 602 MHz (Ch. 37) 12.5 dBi
LOSS
Rejection @ 811 MHz (LTE D1) 0.0 dB
Rejection @ 821 MHz (LTE D6) 3.0 dB
Rejection @ 832 MHz (LTE U1) 6.0 dB
Rejection @ 862 MHz (LTE U6) 20.0 dB
ELECTRICAL
Front to back ratio - horisontal 24 dB
Impedance 75 Ω
CONNECTORS
Connector Type F-female
MECHANICAL
Main Material Aluminium
Beamwidth horisontal ± 20 °
Bracketry Mast - backmounting
Elements 32
Packaging Depth 0,925 m
Packaging Height 0,080 m
Total Weight 1,080 kg
Packaging Width 0,420 m
Net Weight 0,980 kg
Tara Weight 0,100 kg
Packaging Volume 0,031 m3
Windload 58 N
