SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 231 AND id_lang = 2 Commutateur final Multiswitch 8 Triax + 8 polarités récepteurs terrestres y compris l'alimentation
  • -163,96 €
Conmutador Final 8 polaridades + terrestre para 8 receptores alimentacion incluida
search
  • Conmutador Final 8 polaridades + terrestre para 8 receptores alimentacion incluida

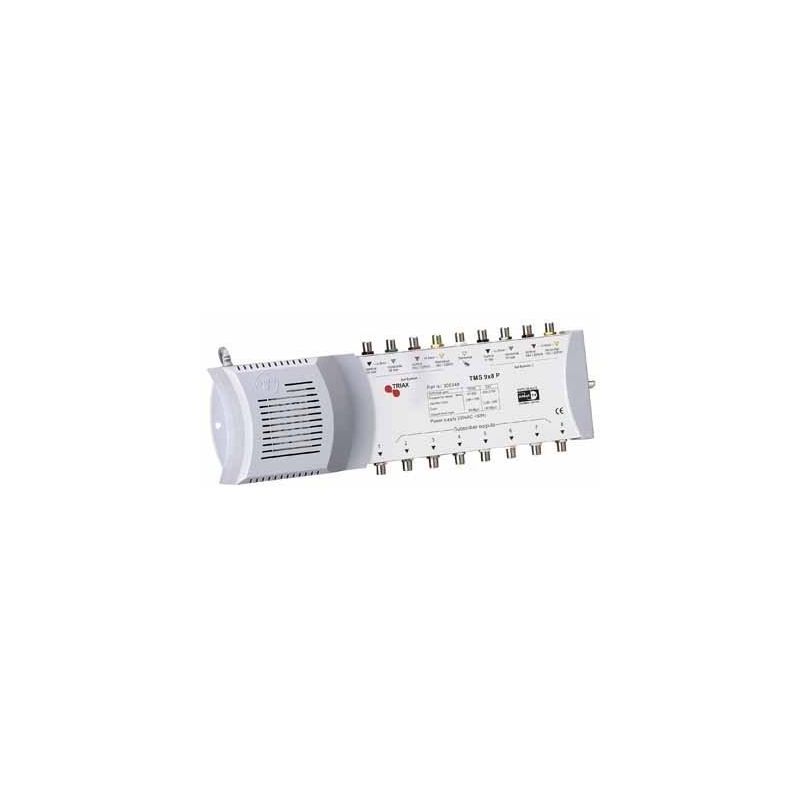

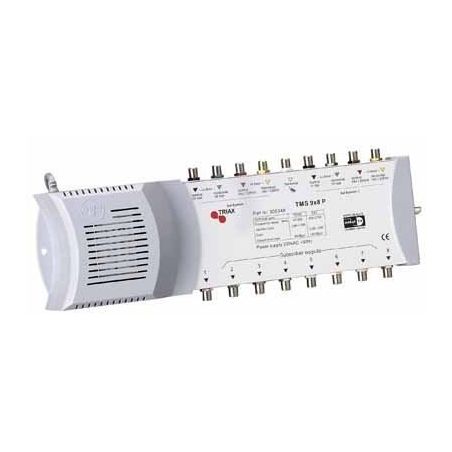

Triax TMS 9x8P Multiswitch End Switch 8 polarités + terrestre. Alimentation incluse. 9e/8s

Multi-commutateurs Triax TMS 9x - 8 polarités (2 positions + 1 ter.) Pour deux positions de satellite dans des réseaux plus petits, la série Triax TMS 9xP avec alimentation intégrée est le bon choix.

135,49 € 299,45 € Économisez 163,96 €
TTC
Référence triax-300348
Marque Triax
Quantité
Derniers articles en stock

Free shipping
Conmutador Final 8 polaridades + terrestre para 8 receptores alimentacion incluida

Triax TMS 9x8P Multiswitch End Switch 8 polarités + terrestre. Alimentation incluse. 9e/8s

135,49 € 299,45 € Économisez 163,96 €

Multiswitch 8 polarités SAT + 1 Terrestre. 8 sorties

Caractéristiques

  • Pour deux positions de satellite dans des réseaux plus petits
  • Alimentation intégrée

Spécifications

INFORMATIONS SUR LA COMMANDE
Code EAN 5702663003484
CARACTÉRISTIQUES
Niveau de sortie max. SAT à -35 dB IMD3 100 dBµV
Niveau de sortie max. TER à -60dB IMD3 85 dBµV
Commandes de commutation 13/18 V, 0/22 kHz, DiSEqC 1.0
BANDE DE FRÉQUENCES
Bande passante SAT 950-2150 MHz
Bande passante TER 47-862 MHz
GAIN
Gain SAT (avec pente de 5 dB) 2 dB
Gain - TER [47-862 MHz] - 2.0 dB
ISOLATION
Isolation sortie-sortie SAT 30 dB
Isolation sortie-sortie TER 26 dB
Isolation SAT vers TER 30 dB
Isolation TER vers SAT 28 dB
ADAPTATION
Perte de retour entrées SAT 14 dB
Perte de retour sorties SAT 7 dB
Perte de retour entrées TER 11 dB
Perte de retour sorties TER 8 dB
CARACTÉRISTIQUES ÉLECTRIQUES
Impédance 75 Ω
OPÉRATIONNEL
DC Tension d'alimentation 15.0 ± 1.0 VDC
Courant max. de passage par connecteur F 1000 mA
Plage de température 0...+55 °C
CONNECTEURS
Type de Connecteur F-femelle
Nombre de sorties 9
Nombre d'entrées ligne de transport 8 SAT, 1 TER
Nombre de sorties ligne de transport 8 SAT, 1 TER
Sorties usagers 8
MÉCANIQUE
Profondeur 103 mm
Profondeur brute 3,500 m
Hauteur brute 0,550 m
Poids brut 1,600 Kg
Largeur brute 1,200 m
Poids net 1,600 kg
Quantité par emballage 1
Volume 2,310 m3
Largeur 359 mm
Hauteur 71 mm
