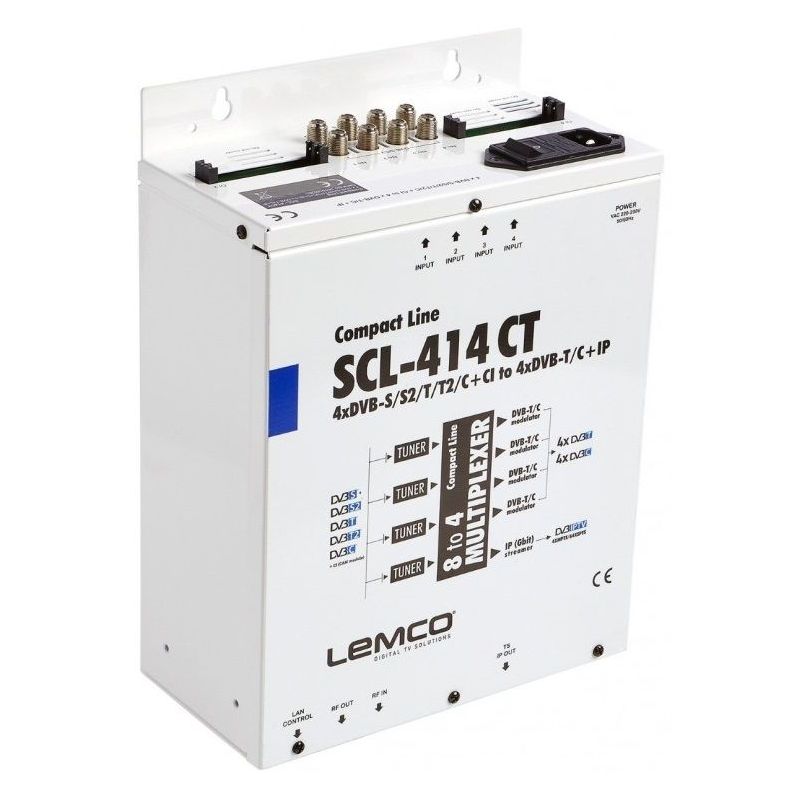

Lemco SCL-414CT Tête numérique + IP streaming
search
  • Lemco SCL-414CT Tête numérique + IP streaming
  • Lemco SCL-414CT Tête numérique + IP streaming
  • Lemco SCL-414CT Tête numérique + IP streaming
  • Lemco SCL-414CT Tête numérique + IP streaming

Lemco SCL-414CT Tête numérique + IP streaming

Le SCL-414CT est un appareil tout-en-un professionnel très puissant capable de recevoir jusqu'à 4 signaux DVB-S/S2, terrestres (DVB-T/T2) ou câbles (DVB-C) CI CAM et les convertir en 4 x DVB-T/C RF canaux de sortie tout en faisant Gbit IP streaming simultanément.

2 108,00 €
TTC
Référence lemco-scl-414ct
Marque Lemco
Quantité
Disponible dans 5/7 jours

Free shipping
Lemco SCL-414CT Tête numérique + IP streaming

Lemco SCL-414CT Tête numérique + IP streaming

2 108,00 €

Vous aimerez aussi

Le SCL-414CT est un appareil tout-en-un professionnel très puissant capable de recevoir jusqu'à 4 signaux DVB-S/S2, terrestres (DVB-T/T2) ou câbles (DVB-C) CI CAM et les convertir en 4 x DVB-T/C RF canaux de sortie tout en faisant Gbit IP streaming simultanément. Il prend en charge la technologie «pool», ce qui signifie que l'utilisateur est capable de sélectionner n'importe quel programme à partir de l'une des 4 entrées et l'affecter à l'une des 4 sorties RF + IP offrant une grande flexibilité.

Le serveur Web embarqué de la SCL-414CT offre une interface utilisateur très conviviale ainsi que la possibilité de contrôle à distance ou local de l'appareil via Ethernet.

Sa petite taille et ses caractéristiques puissantes rendent le SCL-414CT la solution idéale dans les cas où nous voulons distribuer des programmes de télévision FTA (Free-To-Air) en provenance du satellite (DVB-S/S2), terrestre (DVB-T/T2) Ou câbles (DVB-C) à une installation CATV utilisant la technologie DVB-T/C et IP.

Caractéristiques

  • 4 x entrées multi-standard indépendantes DVB-S/S2/T/T2/C
  • 4 entrées CI CI
  • 4 x sortie RF DVB-T / C (logiciel sélectionnable)
  • Gbit IP streaming (jusqu'à 64 x SPTS / 4 x MPTS)
  • Technologie "Pool"
  • Valeur MER> 40dB
  • Spectre RF très propre
  • Re-estampage PCR
  • Interface utilisateur très conviviale
  • Montage mural ou en rack
  • Format compact
  • Garantie 5 ans

Spécifications

Input
Type 8 x DVB-S/S2/T/T2/C
Frequencies 950…2150 MHz DVB-S/S2 - 118…900MHz DVB-T/T2/C
Connector 75Ω - F, female
Descrambling Yes, Accepts 4 x universal CAM
LNB
Voltage OFF / 13V / 18V
Current Less than 400mA
22 kHz signal On / Off
22 kHz signal - Voltage 0.65V ±0.35V
22 kHz signal - Frequency 22 KHz ±4Hz
22 kHz signal - DiSEqC 1.0 (Port A, B, C, D)
DVB-S (IN)
Symbol rate 1 - 45 MBaud
Roll off factor 0.35
Code rate 1/2, 2/3, 3/4, 5/6, 7/8 (Automatic)
Spectral inversion Reverse, Non-reverse (Automatic)
DVB-S2 (IN)
Constellation QPSK, 8PSK (Automatic)
Symbol rate 1 - 45 MBaud (QPSK) - 1 - 30 MBaud (8PSK)
Roll off factor 0.2 / 0.35 (Automatic)
Code rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 (QPSK-Automatic) - 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 (8PSK-Automatic)
Spectral inversion Reverse, Non-reverse (Automatic)
DVB-T (IN)
Bandwidth 6, 7, 8 MHz
Mode 2K, 8K
Constellation QPSK, 16QAM, 64QAM
Guard interval 1/4, 1/8, 1/16, 1/32
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
DVB-T2 (IN)
Bandwidth 5, 6, 7, 8 MHz
Mode 2K, 8K
Constellation QPSK, 16QAM, 64QAM
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C (Annex A,B,C) (IN)
Bandwidth 5, 6, 7, 8 MHz
Mode Automatic modulation detection
Constellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
DVB-T (OUT)
Bandwidth 5, 6, 7, 8 MHz
Mode 2K, 8K
Constellation QPSK, 16QAM, 64QAM
Guard interval 1/4, 1/8, 1/16, 1/32
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
DVB-C (OUT)
Bandwidth 5, 6, 7, 8 MHz
Mode 2K, 8K
Constellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Symbol rate 1-7.2 Ms/s
Programming Interface
Ethernet webserver Yes, embedded webserver
Speed 10/100 Mbps
Connector RJ45
Browser compatibility Chrome, Firefox, Safari, Opera, Edge et al.
Transport Stream Processing
Services User selection by service names
Automatic regeneration PAT, CAT, SDT, PMTs, EITs tables
NIT Pass-through, custom,automatic
PCR re-stamping
LCN support Yes
IP Streaming
IP TS Out Yes
Protocol UDP / RTP (Multicast/Unicast)
Speed 1 Gbit (480 Mbps in IP only mode)
IGMP support Yes, v2, v3
Type MPTS (up to 4 TS) - SPTS (up to 8 HD programs
RF Output
Type 4 x RF out in adjacent channels
Output Frequencies 36…950 MHz (1 Hz step)
Output Level 90dBµV
Connector 75Ω - F, female
Output Attenuator 0…-20dB
MER More than 40dB
Output loop-through loss Less Than 1dB
General
Power supply 108 to 240 VAC 50/60Hz
Power supply consumption 55 VA max.
Operating temperature 0 ºC to 40 ºC
Storage temperature -10 ºC to +70 ºC
Humidity Up to 90%
Dimensions 296.2 x 204.50 x 106 mm
Weight 1.7 Kg
