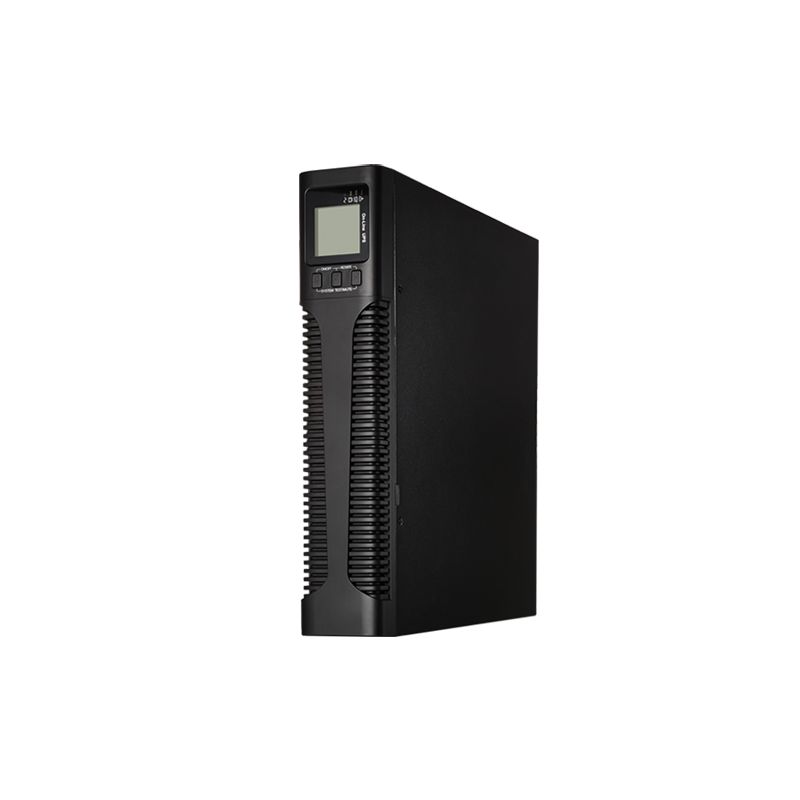

UPS1500VA-ON-2-RACK - Online UPS for rack or tower installation, Power…
Online UPS for rack or tower installation - Power 1500VA/1350W - 2 surge protected outputs - Recharge time 4h 90% - Hot swappable - 3 sealed lead-acid batteries (included)
390,00 €
TTC
Référence
UPS1500VA-ON-2-RACK
Marque
Branded
- UPS online
- Power1500 VA / 1350 W
- 90% Efficiency
- Entry 220~240 VAC
- 2 salidas backup con protección SAI
- 3 Sealed lead-acid maintenance-free batteries 12 V 9.5 Ah (included)
- Recharge time 4~5 h
- Special format to be installed in a rack using UPS-RACK-KIT (not included)
- Emergency Power Off (EPO) function
- Cold start
Caractéristiques
- Online UPS for rack or tower installation
- Power 1500VA/1350W
- 2 surge protected outputs
- Recharge time 4h 90%
- Hot swappable
- 3 sealed lead-acid batteries (included)
Spécifications
| Power | 1500VA/1350W |
| Input voltage | 220~240 Vac |
| Output voltage | 220~240 Vac |
| Power factor | 0.98 |
| Harmonic Distortion | ≤3% THD (Linear load) ≤5% THD (Non-linear load) |
| Waveform output | Pure sine |
| Efficiency | AC mode = ≥90% when fully loaded Battery mode = ≥85% when fully loaded ECO mode = ≥94% when fully loaded |
| Transfer time | Main - Battery = 0ms Main - Bypass = ≤4ms |
| Other features | ECO Mode, LCD information panel, audible warning of possible faults |
| Battery type | Maintenance-free lead 12V 9.5Ah battery |
| Recharge time | 4 hours to 90% capacity |
| Dimensions | 430 (H) x 86.5 (W) x 440 (D) mm |
| Weight | 16 Kg |
| Output power point | 2 protected backup power points Schuko type |
| Temp. operation | 0°C ~ 40°C |
Contenu de l'emballage
- UPS
- 3 sealed lead-acid batteries (included)
- Installation material
- User instructions
Fiche technique
- Poids
- 16 Kg
- Power
- 1500VA/1350W
- Temp. operation
- 0°C ~ 40°C
- Dimensions
- 430 (Al) x 86.5 (An) x 440 (Fo) mm
- Voltage de sortie
- 200~240 Vac
- Tension en entrée
- 220~240 Vac
- Type de batterie
- Batterie de 12V 9Ah de plomb sans entretien
- Temps de rechargement
- 5 heures à 90% de capacité
- Prises de sortie
- 2 prises sauvegarde type Schuko protégées
- Efficacité
- Modo AC ﹦ ≥90% a plena carga Modo Batería ﹦ ≥85% a plena carga Modo ECO ﹦ ≥94% a plena carga
- Factor de potencia
- 0.9
- Distorsión armónica
- ≤3% THD (Carga lineal) ≤5% THD (Carga no-lineal)
- Forma de onda de salida
- Sinusoidal pura
- Tiempo de transferencia
- Principal - Batería ﹦ 0ms Principal - Bypass ﹦ ≤4ms
- Otras características
- ECO Mode, LCD information panel, audible warning of possible faults
Online UPS for rack or tower installation - Power 1500VA/1350W - 2 surge protected outputs - Recharge time 4h 90% - Hot swappable - 3 sealed lead-acid batteries (included)
