Spaun SMK 17129 F Multiswitch en cascade 17x12. Spaun 842426
search
  • Spaun SMK 17129 F Multiswitch en cascade 17x12. Spaun 842426
  • Spaun SMK 17129 F Multiswitch en cascade 17x12. Spaun 842426

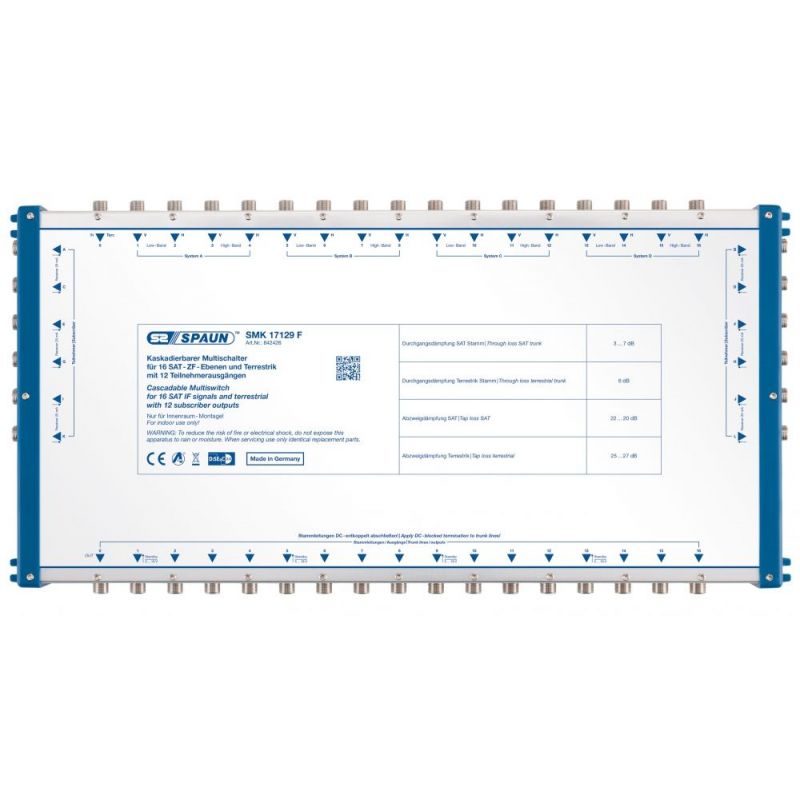

Spaun SMK 17129 F Multiswitch en cascade 17x12

Multiswitch en cascade pour 16 signaux SAT-BIS et terrestre avec 12 sorties d'abonné.

423,50 €
TTC
Référence spaun-smk17129f
Marque Spaun
Quantité
Rupture de stock

Free shipping

Vous aimerez aussi

Livraison en 7 jours, contactez-nous pour confirmer la disponibilité.

Multiswitch en cascade pour 16 signaux SAT-BIS et terrestre avec 12 sorties d'abonné.
(Peut être utilisé uniquement avec une unité de base système SBK 55xx NFx)

Satellite

  • La commutation s'effectue par la tension d'alimentation LNB ou par la tonalité de 22 kHz du récepteur via le câble HF.
  • Signalisation en veille via la ligne principale 1.
  • Contrôle en veille.
  • Pince à la terre.

Terrestre

  • Compatible avec le retour, passif terrestre.

Spécifications

Model
Art. Number		 SMK 17089 F SMK 17129 F SMK 17169 F
Frequency range 5-2200 MHZ 5-2200 MHZ 5-2200 MHZ
Inputs 16 SAT + 1 TERR 16 SAT + 1 TERR 16 SAT + 1 TERR
Outputs 16 SAT + 1 TERR 16 SAT + 1 TERR 16 SAT + 1 TERR
Subscriber outputs 8 12 16
Through loss
terrestrial		 6,5 ... 6 dB 6,5 ... 6 dB 6,5 ... 6 dB
Throug loss
satellite		 2 ... 5 dB 4 ... 8 dB 4 ... 8 dB
Tap loss terrestrial 22 ... 27 dB 20 ... 24 dB 21 ... 25 dB
Tap loss satellite 20 ... 17 dB 22 ... 16 dB 22 ... 16 dB
Current consumption
for each receiver max.		 max. 25 mA max. 25 mA max. 25 mA
Isolation
Trunk / trunk		 > 30 dB > 30 dB > 26 dB
Isolation
Receiver / receiver		 > 30 dB > 30 dB > 26 dB
DC - through trunk
0; 2 ... 8		 2A 2A 2A
Ambient temperature -20...+50°C -20...+50°C -20...+50°C
Dimensions mm 426 x 132 x 39 426 x 132 x 39 426 x 211 x 39
