SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 33SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 2776 AND id_lang = 2 Prise séparée 5...1000 MHz TV-FM

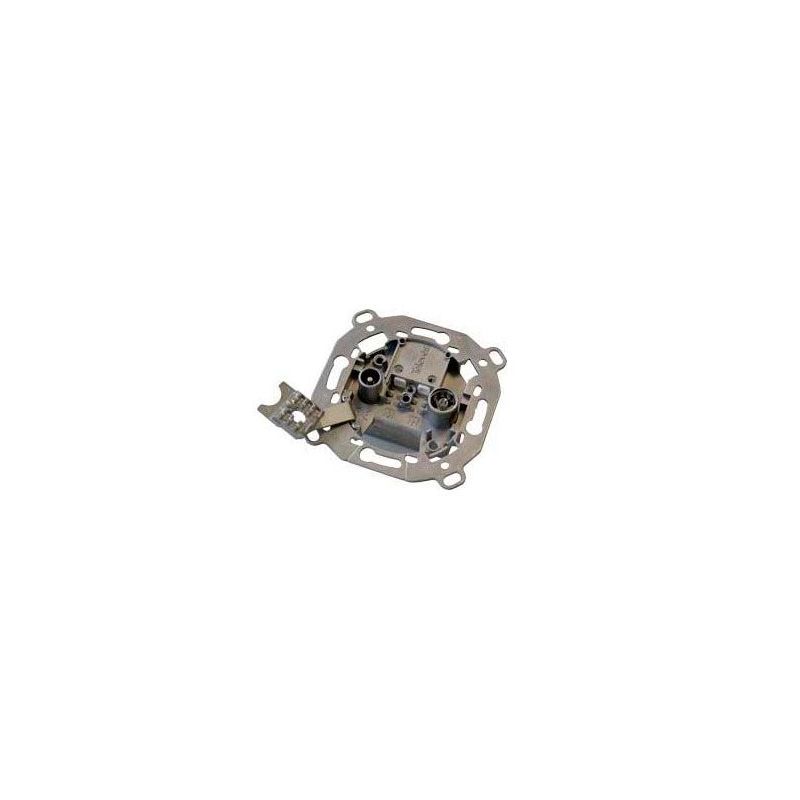

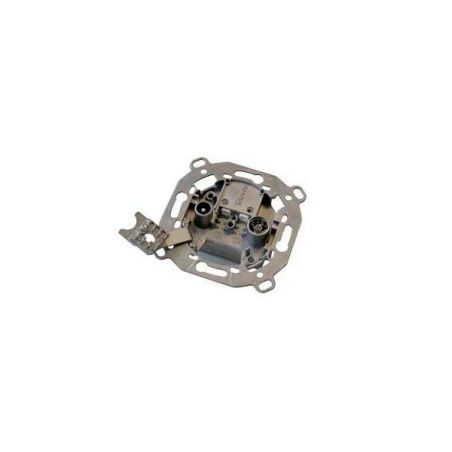

Prise séparée 5...1000 MHz TV-FM
search
  • Prise séparée 5...1000 MHz TV-FM

Prise séparée 5...1000 MHz TV-FM

TOMA TERMINAL 5...1000MHz TV-FM 0,5-3dB

90,87 €
TTC
Référence televes-5232
Marque Televes
Quantité
Disponible dans 24/48h

Free shipping
Prise séparée 5...1000 MHz TV-FM

Prise séparée 5...1000 MHz TV-FM

90,87 €
  • Connexion de l‘âme par simple pression, aucune vis à serrer.
  • Permet de visualiser la connexion.
  • Compatible avec les âmes de Ø 0,65 à Ø 1,2 mm.
  • Compatible avec les gaines extérieures de câble de Ø 5 a Ø 6.9 mm.
  • Conformes aux Directives Européennes 2004/108/CEE et 2006/95/CEE
  • Les prises avec connexion datas sont compatibles DOCSIS 3.0





Réf. Connecteur  Bande Atténuation (dB) Passage de courant DC
(350 mA)
MHz V.R. FM VHF UHF BIS
5...65 87,5...108 125...470 470...862
470...790*		 950...2150 2150...2400

524605		 CEI mâle TV  < 8 4,5 > 9  -
CEI femelle FM < 8 4,5 > 9 -
F femelle SAT > 8 > 6 1,5 SAT -> IN
 5250 CEI mâle TV - - < 5 - - -
CEI femelle FM - < 10 - - - -
F femelle SAT < 4,5 < 3,8 < 5 < 6,5 - SAT->IN
 5232 CEI mâle TV 0,5 - 0,5 - -
CEI femelle FM - 3 - - -
 5226/
522610*		 CEI mâle TV/FM 0,6 - -
CEI femelle SAT - 1,5 - SAT ->IN
 5270 CEI mâle FM/TV/SAT < 2 TOUTES
CEI femelle FM/TV/SAT < 2
