SELECT * FROM ps_od_oosbutton_manufacturerSELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 278 AND id_lang = 2 Câble coaxial RG6 TriShield 80% bobine de bouclier blanc int-ext 305 mètres
Cable coaxial RG6 trishield 80% apantallamiento blanco int-ext bobina 305 metros
search
  • Cable coaxial RG6 trishield 80% apantallamiento blanco int-ext bobina 305 metros

Câble coaxial RG6 trishield 77 blindage blanc bobine int-ext 305 mètres

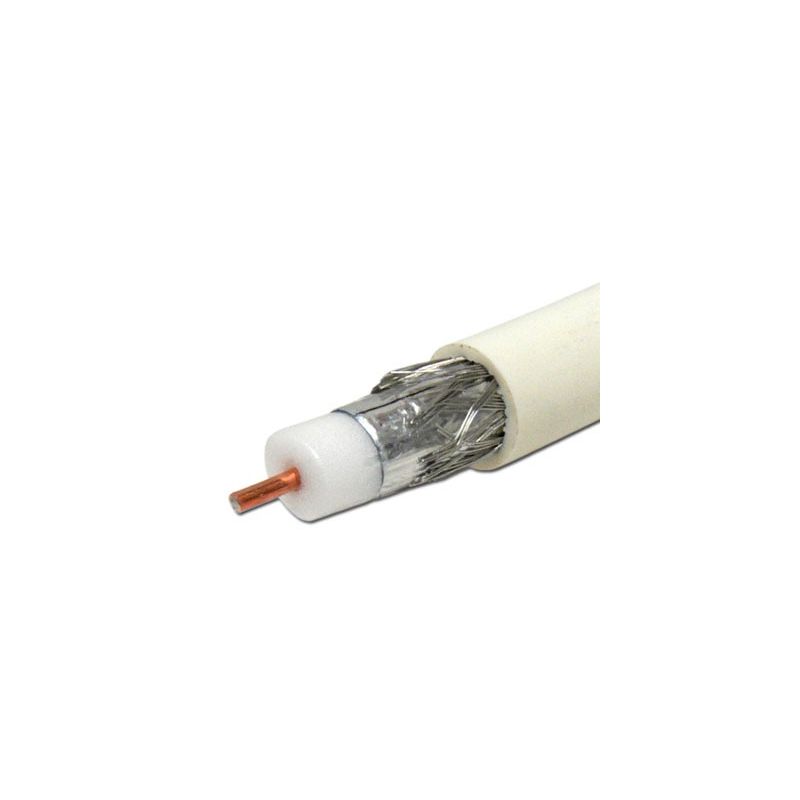

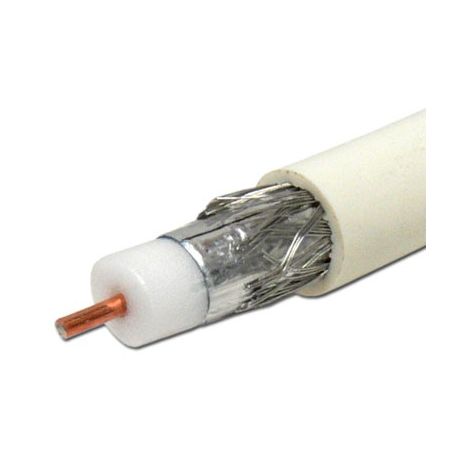

Bobine de 305 mètres. Câble coaxial de classe A + triple blindage, qui offre un transport de haute qualité de signal TV / Vidéo avec une faible interférence LTE. Série 6 - LTE. Conducteur en acier cuivré. Diélectrique en mousse de polyéthylène. Bouclier laminé APA collé. 77% Tresse d'aluminium.

183,05 €
TTC
Référence 2625-RG6
Quantité
Disponible dès maintenant

Free shipping
Cable coaxial RG6 trishield 80% apantallamiento blanco int-ext bobina 305 metros

Câble coaxial RG6 trishield 77 blindage blanc bobine int-ext 305 mètres

183,05 €

Câble coaxial de classe A + triple blindage, qui offre un transport de haute qualité de signal TV / Vidéo avec une faible interférence LTE.

Caractéristiques

  • Câble coaxial Série 6 - LTE
  • Conducteur en acier cuivré
  • Diélectrique en mousse de polyéthylène
  • Bouclier laminé APA collé
  • 77% Tresse d'aluminium
  • APA Laminate Shield (ShieldX ™)
  • Veste en PVC blanc
  • Compatible RoHS et WEEE
  • Conforme à la classe A + Blindage, EN 50117 2-4

Spécifications

Material Detail inches mm
Inner Conductor Copper-Clad Steel 0.0403 1.02
Dielectric Foamed Polyethylene 0.181 4.60
1st Outer Conductor Sealed APA Tape 0.189 4.80
2nd Outer Conductor 77% Aluminum Braid 0.205 5.21
3rd Outer Conductor APA Tape (ShieldXTM) 0.210 5.33
Floodant --- --- ---
Jacket PVC, White 0.268 6.81
Messenger --- --- ---
Mechanical Specifications
Minimum Bend Radius, in. (mm)   1.00 (25.40)
Product Weight (less reel) 28 lbs /kft 42 kg / km
Pull Force   > 11 lbf < 18 lbf > 50 N < 80 N
Tensile   ≥ 40 lbf ≥ 180 N
 Electrical Specifications
 Impedance, Ω     75 ± 3
 Velocity of Propagation, %    85
 Capacitance, Nominal  16.2 pF/ft     53.2 pF/m
 DC Resistance   Ω / kft    Ω / km
 Inner Conductor   31.0    102
 Outer Conductor  5.70     19
 Loop  36.7     120
 Structural Return Loss, dB
 5-30 MHz     -27
30-470 MHz    -27
470-1000 MHz    -24
1000-2000 MHz    -22
2000-3000 MHz    -20
RFI Shielding
Meets Class A+ Shielding, EN 50117 2-4
Transfer Impedance
5-30 MHz   ≤ 2.5 mΩ•m
Screening Attenuation
30-1000 MHz    ≥ 95 dB
1000-2000 MHz    ≥ 85 dB
2000-3000 MHz    ≥ 75 dB
 Attenuation, Maximum @ 68 °F (20 °C)
 Frequency, MHz   dB / 100 ft   dB / 100 m
 5  0.58  1.90
 55  1.50 4.92
 100  2.00 6.56
 211  3.05  10.01
 250  3.23  10.60
 270  3.24  10.63
 300  3.55  11.65
330 3.74 12.27
350 3.85 12.63
400 4.15 13.62
450 4.28 14.04
500 4.66 15.29
550 4.90 16.08
600 5.10 16.73
750 5.65 18.54
870 6.09 19.98
1000 6.53 21.42
1450 7.89 25.89
1750 8.74 28.67
2150 9.46 31.04
2250 9.91 32.51
2500 10.44 34.25
3000 11.44 37.53
