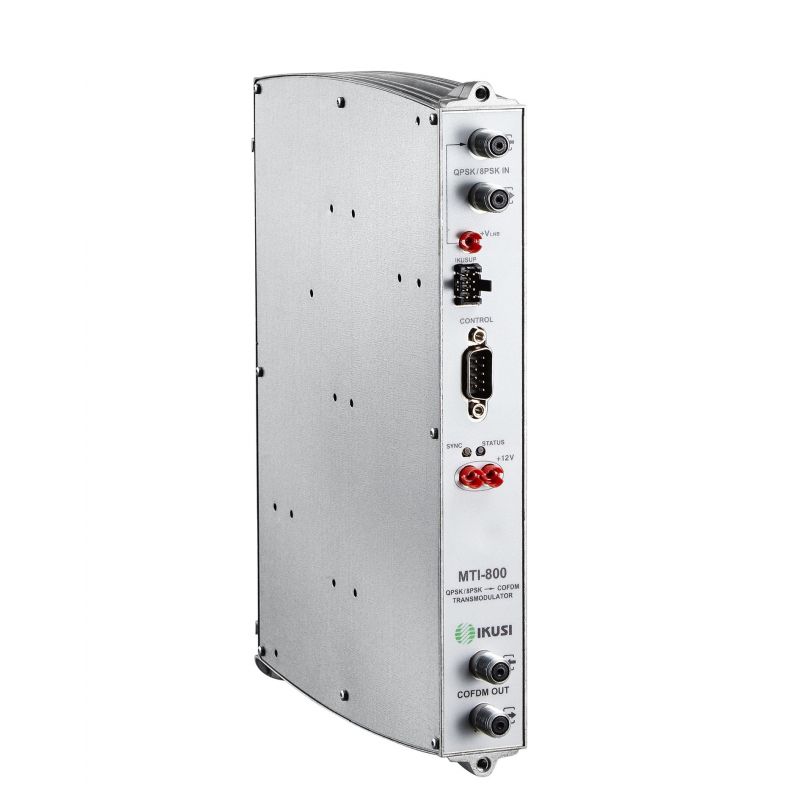

Ikusi MTI-800 Transmodulateur DVBS/S2 ► DVBT
DVB-S / S2 vers COFDM transmodulateur libre d'air
Tuner TNT DVB-S / S2
Sortie sur un canal COFDM
Robuste avant les coupures de signal
786,50 €
TTC
Référence
ikusi-4099
Marque
Ikusi
Ikusi MTI-800 Transmodulateur DVBS/S2 ► DVBT
786,50 €
Caractéristiques
DVB-S / S2 vers COFDM transmodulateur libre d'air
Tuner TNT DVB-S / S2
Sortie sur un canal COFDM
Robuste avant les coupures de signal
Spécification
| Template | MTI-900 | MTI-800 | |
| REF. | 4098 | 4099 | |
| Reception | DVB-S; DVB-S2 | ||
| Transport Stream Processing (TS) | Yes | ||
| Common Interface (EN 50221) | Yes | No | |
| Maximum number of decrypted programs | Variable (depends on the CAM module) | - | |
| Input | |||
| Standard | EN 300 421 | ||
| Input frequency band | MHz | 950-2150 | |
| Input level | dBm |
-65 ... -25 (DVB-S) -70 ... -25 (DVB-S2) |
|
| Input loop gain | dB | 0 (± 1) | |
| CAF margin | MHz | ± 5 | |
| Input Rate | MS / s |
10 ... 30 (DVB-S2) 2 ... 45 (DVB-S) |
|
| Processing | |||
| Data Processing | EN 300 744 | ||
| Operating modes | 2K ,, 4K (DVB-H), 8K | ||
| Constellation | QPSK ,, 16QAM ,, 64QAM | ||
| Code rate | 1/2 ,, 2/3 ,, 3/4 ,, 5/6 ,, 7/8 | ||
| Guard interval | 1/4 ,, 1/8 ,, 1/16 ,, 1/32 | ||
| In-depth interlacing (just in DVB-H) | Applicable (in 2K and 4K modes) | ||
| Modulation error rate (MER) | dB | > 38 (typ.) | |
| Output | |||
| Selectable output channel, between: | MHz | 47-862 | |
| Bandwidth | MHz | 5 (DVB-H) ,, 6 ,, 7, 8 | |
| Adjustable output level | dB μ V | 65 to 80 | |
| Frequency Stability | ppm | ≤ < 30 > | |
| Output loop step attenuation | dB | 1.1 | |
| Band Spurs | dBc | < -50 | |
| Broadband noise (ΔB = 5 MHz) | dBc | < -75 | |
| General | |||
| Feeding Tension | VDC | + 12 | |
| Consumption | mA |
730 (without CAM) 870 (with CAM) |
730 |
| Operating temperature | ̊C | 0 ... +45 | |
| Input RF loop connector | (2x) F female | ||
| Output RF loop connector | (2x) F female | ||
| Power connectors and telealiment. amplif. | banana socket | ||
| CAM Input | 1 Slot (EN 50221) | - | |
| Programming interface | RS-232 / DB-9 | ||
| IKUSUP Bus Connector | (2x) 4-pin base | ||
| Dimensions | mm | 230 x 195 x 32 | |
