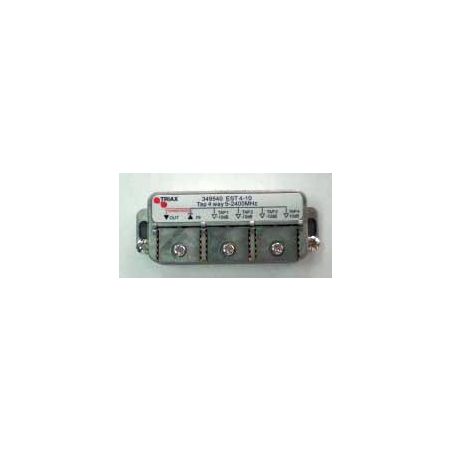

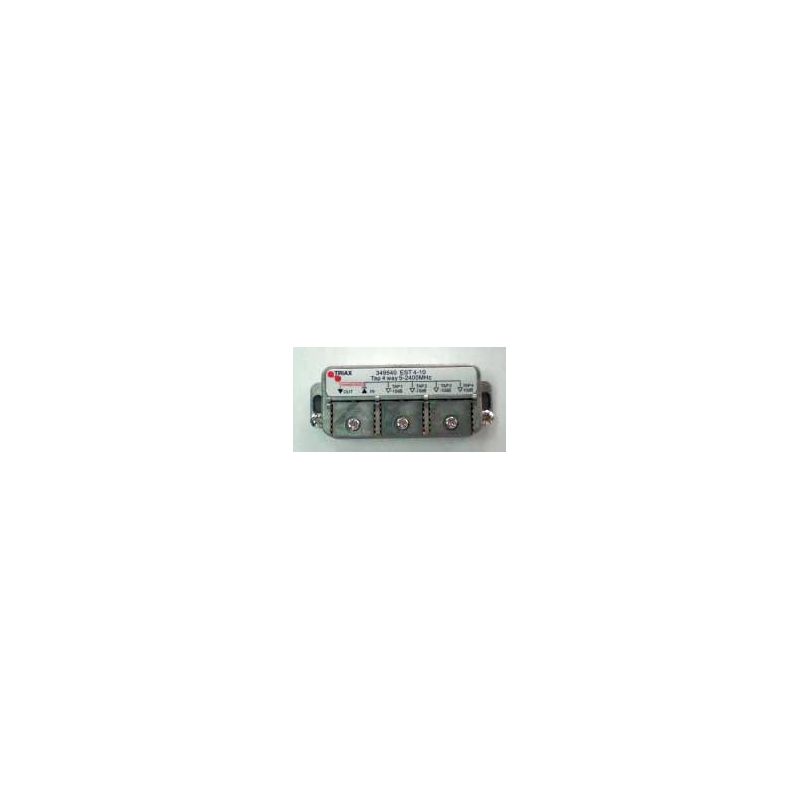

Dériver 4 sorties (connexion Easy clema) 20db EST 4-20 triax
Derivador 4 sorties (Connection clema fácil) 20db EST 4-20
14,12 €
TTC
Référence
triax-349542
Marque
Triax
Dériver 4 sorties (connexion Easy clema) 20db EST 4-20 triax
14,12 €
Derivador 4 sorties (Connection clema fácil) 20db EST 4-20
Spécifications
| Model | EST 4-20 | |
| Code | 349542 | |
| Frequency range | MHz | 5 - 2400 |
| No. of outputs | pcs | 4 |
| Lost in step (typical) 5 - 40 MHz | dB | 1,5 |
| 40 - 1000 MHz | dB | 1,8 |
| 1000 - 1750 MHz | dB | 2,2 |
| 1750 - 2150 MHz | dB | 2,5 |
| 2150 - 2400 MHz | dB | 03 |
| Lost in shunt 5 - 40 MHz | dB | 20.0 (± 2.0) |
| 40 - 1000 MHz | dB | 20.0 (± 1.5) |
| 1000 - 1750 MHz | dB | 20.0 (± 1.5) |
| 1750 - 2150 MHz | dB | 20.0 (± 2.0) |
| 2150 - 2400 MHz | dB | 20.0 (± 2.5) |
| Decoupling | dB | 22 |
| Lost of return (in / out) | dB | 14 |
| Lost of return (derivation) | dB | 14 |
| Protection of the shield | dB | ≥ 110.0 |
| Current passage | Input / Output | |
| Impedance | Ohm | 75 |
| Dimensions (h x d x w) | mm | 82 x 31 x 20 |
