SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 22SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 6892 AND id_lang = 2 Triax KOKA 110 A+ câble de bobine coaxial en PVC 100m blanc
Triax KOKA 110 A+ câble de bobine coaxial en PVC, 100m blanc
search
  • Triax KOKA 110 A+ câble de bobine coaxial en PVC, 100m blanc
  • Triax KOKA 110 A+ câble de bobine coaxial en PVC, 100m blanc
  • Triax KOKA 110 A+ câble de bobine coaxial en PVC, 100m blanc

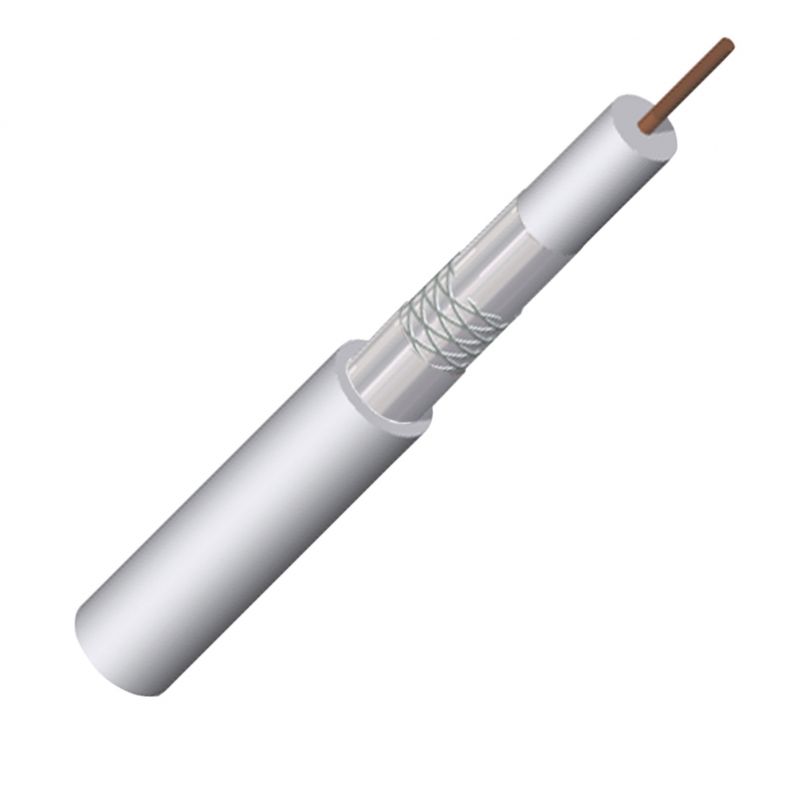

Triax KOKA 110 A+ câble de bobine coaxial en PVC 100m blanc

É um cabo coaxial classe A tripla blindado, que oferece transporte de alta qualidade de sinal de TV/Vídeo com baixa interferência LTE. Este cabo é a escolha certa se você precisar de uma imagem de TV clara sem pixilation. Bobina 100m Branco.

142,55 €
TTC
Référence triax-151611
Marque Triax
Quantité
Disponible dans 4/5 jours

Free shipping
Triax KOKA 110 A+ câble de bobine coaxial en PVC, 100m blanc

Triax KOKA 110 A+ câble de bobine coaxial en PVC 100m blanc

142,55 €

KOKA 110 A+ - PVC blanc - Bobine de 100m

Il s’agit d’un câble coaxial à triple blindage de classe A +, qui assure un transport de haute qualité du signal TV / vidéo avec une faible interférence LTE. Ce câble est le bon choix si vous avez besoin d’une image de télévision claire sans pixilation.

Caractéristiques

  • ClasseA + (EN 50117-2-4) et câble PE (EN 50117-2-5)
  • Des matériaux de haute qualité signifient une longue durabilité
  • Haute performance même sur de longues distances
  • Protégé LTE - tresse en cuivre étamé et feuilles à deux couches pour protéger les signaux

Spécifications

ORDER INFORMATION
EAN Number 5702661516115
CONSTRUCTION
Inner conductor - material Cu
Inner conductor - dimension 1.02 ± 0.01 mm
Dielectric - material PE gas injected
Dielectric - dimension 4.6(+0.2-0.3) mm
Shield (First) foil 1 – material Al/Pet/Copolymer bonded
Shield (First) foil 1 – overlap 20 %
Shield (Second) – braid material CuSn
Shield (Second) – braid coverage 60 %
Third shield – foil 2 – material AL/Pet bonded
Jacket – dimension 6.8 ± 0.1 mm
Jacket - material PVC
SHIELDING
Screening attenuation @ 30-1000 MHz ≥ 120 dB
Screening attenuation @ 1000-2000 MHz ≥ 120 dB
Screening attenuation @ 2000-3000 MHz ≥ 120 dB
TRANSFER IMPEDANCE
Transfer Impedance @ 5-30 MHz < 2.5 mΩ/m
CHARACTERISTICS
Type KOKA 110
LOSS
Attenuation (20°C/100mtr) @ 5 MHz 1.5 dB
Attenuation (20°C/100mtr) @ 200 MHz 9.0 dB
Attenuation (20°C/100mtr) @ 470 MHz 13.5 dB
Attenuation (20°C/100mtr) @ 862 MHz 18.8 dB
Attenuation (20°C/100mtr) @ 1000 MHz 20.3 dB
Attenuation (20°C/100mtr) @ 2400 MHz 32.5 dB
RETURN LOSS
Structural return loss @ 5-470 MHz ≥ 25 dB
Structural return loss @ 470-1000 MHz ≥ 23 dB
Structural return loss @ 1000-2400 MHz ≥ 20 dB
ELECTRICAL
Impedance 75 ± 3 Ω
Capacity 53 ± 2 pF/m
Velocity ratio 83 ± 1 %
Inner DC resistance < 21.5 Ω/km
Outer DC resistance < 12.0 Ω/km
OPERATIONAL
Application Indoor
Fire Class Eca
DoP number TR0010
Notified Body 2479
Screening Efficiency EN50117 (Class A+)
MECHANICAL
Cable length 100 m
Colour White
Packaging Volume 0.001 m3
Net Weight 4.5 kg
Total Weight 5.2 kg
