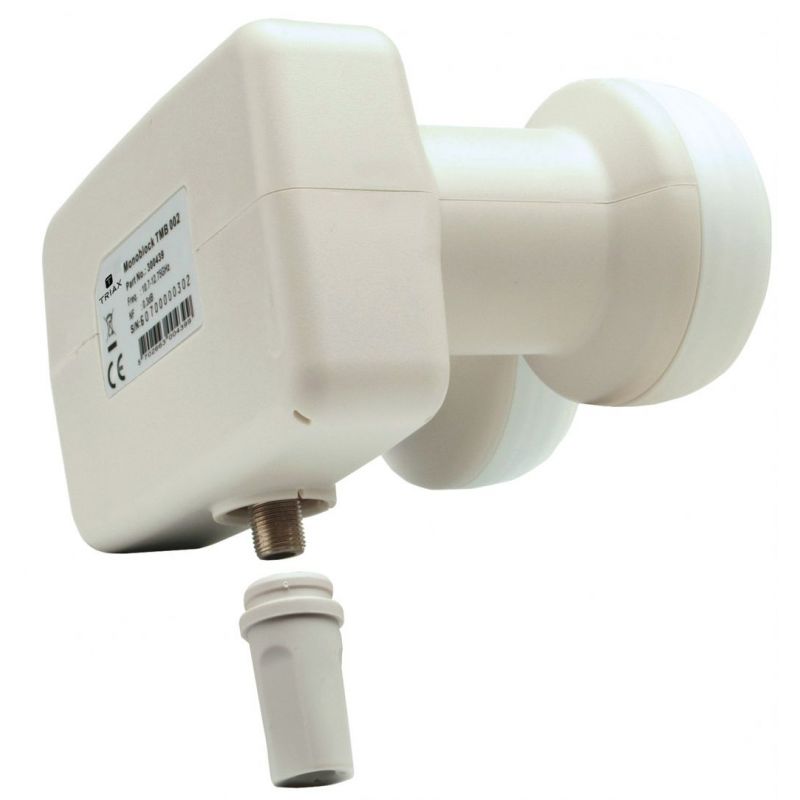

Triax TMB 002 - LNB Universal monoblock 6ème. 1 sortie DiSEqC 1.0.

Monobloc universel TMB 002. LNB monobloc 6 °. 1 sortie DiSEqC 1.0. Satellites: Astra - A (repos) / Hot-Bird - B. Couverture complète en bande KU pour la réception analogique et numérique. Faible bruit Gain élevé et excellente isolation de polarisation croisée. Niveau de sortie élevé et faible consommation d'énergie. Variation plate du gain. Pour 2 ou 4 décodeurs.

38,39 €
TTC
Référence triax-300439
Marque Triax
Quantité
Disponible dans 4/5 jours

Free shipping
Triax TMB 002 LNB Universal monoblock 6ème. 1 sortie DiSEqC 1.0.

Triax TMB 002 - LNB Universal monoblock 6ème. 1 sortie DiSEqC 1.0.

38,39 €

Monobloc universel TMB 002.

Caractéristiques

  • LNB monobloc 6 °. 1 sortie DiSEqC 1.0. Satellites: Astra - A (repos) / Hot-Bird - B.
  • Couverture complète en bande KU pour la réception analogique et numérique.
  • Faible bruit.
  • Gain élevé et excellente isolation de polarisation croisée.
  • Niveau de sortie élevé et faible consommation d'énergie.
  • Variation plate du gain.
  • Pour 2 ou 4 décodeurs.
  • Couvercle coulissant disponible en 2 couleurs.

Spécifications

ORDER INFORMATION
EAN Number 5702663004399
CHARACTERISTICS
Phase noise @ room temperature - 1 kHz - 60 dBc/Hz
Phase noise @ room temperature - 10 kHz - 80 dBc/Hz
Phase noise @ room temperature - 100 kHz - 100 dBc/Hz
Spurious level - 60 (max.) dBm
Image rejection (min.) 40 dB
Feedhorn F/D @ 11.7 0.615
Feedhorn diameter Ø 40 mm
Frequency stability (-40 ~ +60 °C) ± 2.0:1 MHz
LNB type Single
DiSEqC built in DiSEqC 2.0
Switching low band 0.0 kHz
Switching high band 22 (± 4) kHz
FREQUENCY
Input frequency low band 10.7 - 11.7 GHz
Input frequency high band 11.7 - 12.75 GHz
Output frequency low band 950 - 1950 MHz
Output frequency high band 1100 - 2150 MHz
L.O. frequency low band 9.75 GHz
L.O. frequency high band 10.6 GHz
GAIN
Gain flatness (across 26 MHz segm) ± 1.0 (typ.) dB
Gain variation (over operating band) 5 p-p (typ.)
Conversion gain (max.) 62 dB
Conversion gain (min. at room temperature) 50 dB
Conversion gain (typ.) < 62 dB
Noise figure max. 0.3 dB
ISOLATION
Cross polarization isolation 25 typ. dB
OPERATIONAL
DC Current consumption 110 mA
Operating voltage vertical 10.5 ~ 14.5 V/DC
Operating voltage horizontal 15.5 ~ 21.0 V/DC
Operating temperature range -40 ~ +60 °C
CONNECTORS
Connector Type F-female
MECHANICAL
Max. depth incl. feedhorn 145 mm
Product Height 137 mm
Product Depth 97 mm
Product Width 140 mm
Colour RAL 7035 - Light grey
Packing QTY 30
Packaging Height 0.110 m
Packaging Width 0.130 m
Packaging Depth 0.090 m
Packaging Volume 0.001 m3
Net Weight 0.346 kg
Tara Weight 0.056 kg
Total Weight 0.402 kg
