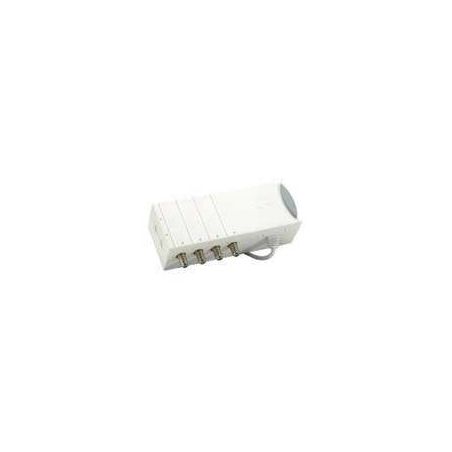

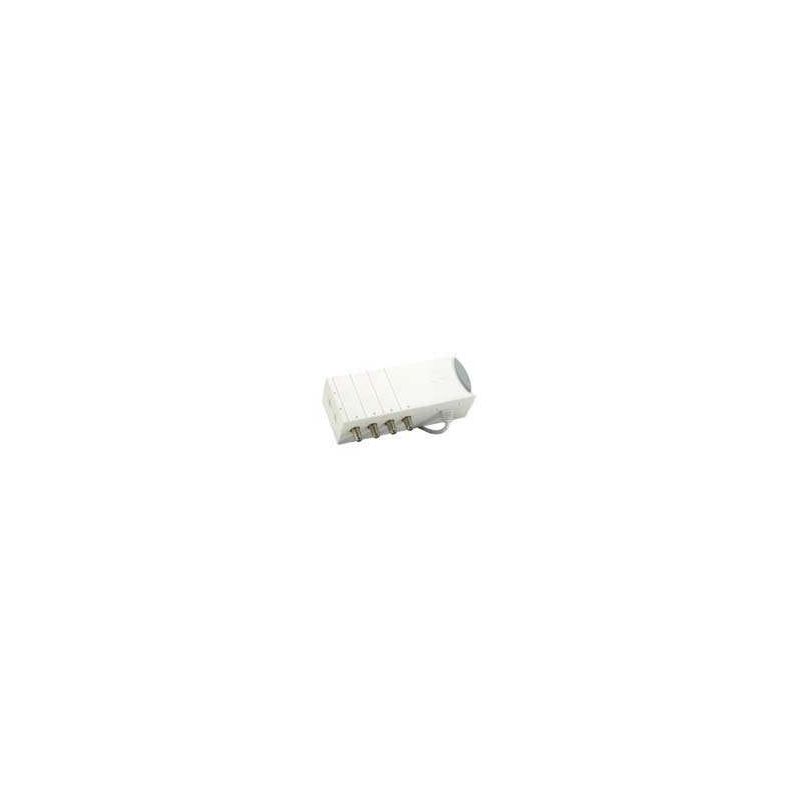

Triax IFM 103 Amplificador multibanda
IFM indoor multiband amplifier with F-connectors. Attractive housing design. F-connectors. Separate adjustable gain on VHF and UHF. Built-in power supply. New click-on wall mounting.
34,49 €
68,97 €
Économisez 50%
TTC
Référence
triax-339103
Marque
Triax
Triax IFM 103 Amplificador multibanda
34,49 €
68,97 €
Économisez 50%
IFM indoor multiband amplifier with F-connectors
Features
- Attractive housing design
- F-connectors
- Separate adjustable gain on VHF and UHF
- Built-in power supply
- New click-on wall mounting
Specifications
| Type | IFM 103 | ||
| Part No. | 339103 | ||
| Input 1 | Band | UHF | |
| Channel | 21-69 | ||
| Gain | dB | 12-22 | |
| Input 2 | Band | BIII | |
| Channel | 5-12 | ||
| Gain | dB | 12-22 | |
| Input 3 | Band | BI + FM | |
| Channel | |||
| Gain | dB | 2-12 | |
| Noise figure | |||
| UHF | dB | 4.0 | |
| VHF | dB | 4.0 | |
| Max. output voltage@ -60 dB IMA | dBμV | 105 | |
| Numbers of in-/output | 3/1 | ||
| Voltage | V/AC | 230 | |
| Power consumption | W | 3 | |
| Connector | type | F | |
| Impedance | Ohm | 75 | |
| Operation temperature range | oC | 0...+50 | |
| Weight | kg | 0.400 | |
| Dimensions (h x d x w) | mm | 61 x 44 x 118 | |
| Remarks | Automatic | ||
| DC-pass to | |||
| UHF input | |||
