SELECT * FROM ps_od_oosbutton_manufacturer WHERE id_manufacturer = 9SELECT * FROM ps_od_oosbutton JOIN ps_od_oosbutton_lang USING (id_product) WHERE id_product = 806 AND id_lang = 2 LNB Inverto Pro 8 Output 40mm
LNB Inverto Black Pro Octo 0.2dB 8 Salidas Envio Gratis
search
  • LNB Inverto Black Pro Octo 0.2dB 8 Salidas Envio Gratis
  • LNB Inverto Black Pro Octo 0.2dB 8 Salidas Envio Gratis

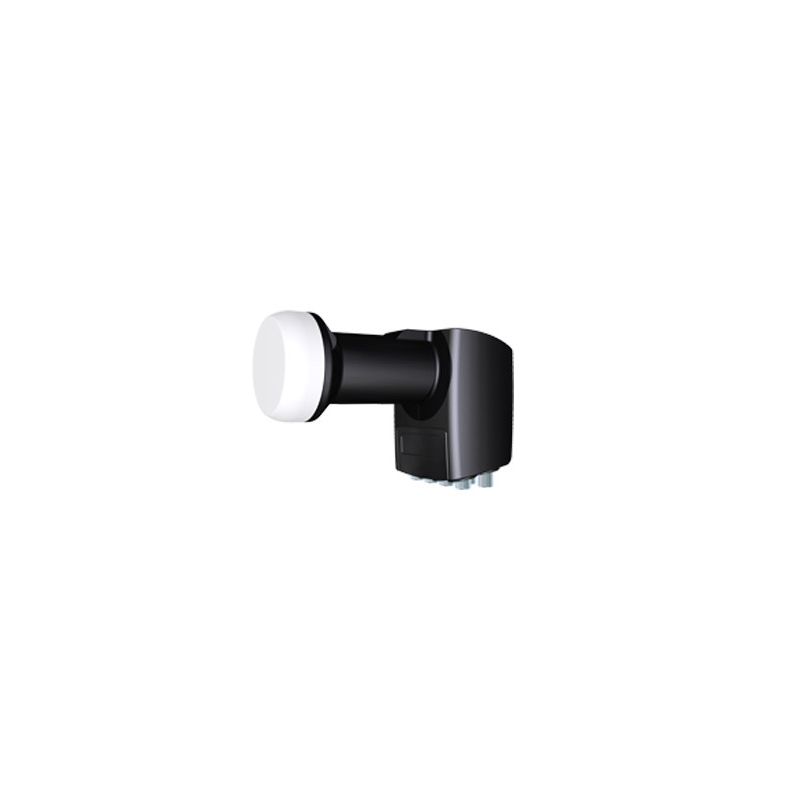

LNB Inverto Pro 8 Output 40mm

Spécialement conçu pour les marchés DTH européens, ce LNB offre des capacités de réception optimisées. Ce LNB permet la connexion de huit décodeurs au maximum avec un seul tuner (ou quatre 4 STB avec Twin Tuner) - sans avoir besoin d'un multi-switch externe. Il est prêt pour les transmissions haute définition et offre d'excellentes performances en matière de bruit.

59,00 €
TTC
Référence inverto-3001
Marque Inverto
Quantité
Disponible dès maintenant

Free shipping
LNB Inverto Black Pro Octo 0.2dB 8 Salidas Envio Gratis

LNB Inverto Pro 8 Output 40mm

59,00 €

Specifically designed for the European DTH markets, this LNB provides optimized reception capabilities. This LNB allows for the connection of maximum eight Set Top Boxes with Single Tuner (or to four 4 STBs with Twin Tuner) - without the need of an external Multi-Switch. It is ready for High Definition transmissions and provides excellent Noise Figure performance. Designed to meet strict specifications and manufactured to the highest industry quality standards, this LNB is an ideal solution for the satellite broadcast reception across Europe.

Main Features

  • Low Phase Noise, DVB-S2 (HDTV) compliant
  • Low Noise Figure (0.2 dB)
  • Low Power Consumption
  • Very high Cross Polarization Isolation
  • Very high Frequency Stability

Spécifications

Inverto IDLB-OCTL40-OOOOO-OPP
Low Band Input Frequency Range 10.7 ~ 11.7 GHz
Low Band Output Frequency Range 950 ~ 1950 MHz
Low Band LO Frequency 9.75 GHz
High Band Input Frequency Range 11.7 ~ 12.75 GHz
High Band Output Frequency Range 1100 ~ 2150 MHz
High Band LO Frequency 10.6 GHz
Noise Figure 0.2 dB Typ. (0.7 dB Max.)
LO Initial Accuracy +/- 1.0 MHz Max.
LO Temperature Drift +/- 3.0 MHz Max.
Phase Noise (@ 10 kHz) - 90 dBc / Hz Max.
Conversion Gain 55 dB Min.
Gain Ripple (Over 26 MHz Bandwidth) +/- 0.75 dB
Gain Variation (Over Full Band) +/- 4 dB Max.
Image Rejection 40 dB Min.
1 dB Compression Point (@ Output) 0.0 dBm Min.
Cross Polarization Isolation 22 dB Min.
Control Signal Ca (Vertical Polarization) 10.0 ~ 14.0 V
Control Signal Cb (Horizontal polarization) 16.0 ~ 20.0 V
Control Signal Cc (Band Switching) 22 +/- 4 kHz
Output VSWR 2.5 : 1
In-Band Spurious - 60 dBm Max.
Current Consumption 210 mA Max. @ 11 ~ 20 V
Operating Temperature - 30 °C ~ + 60 °C
Output Impedance 75 Ω
Output Connector F-Type (Female)
Weight 256 g
