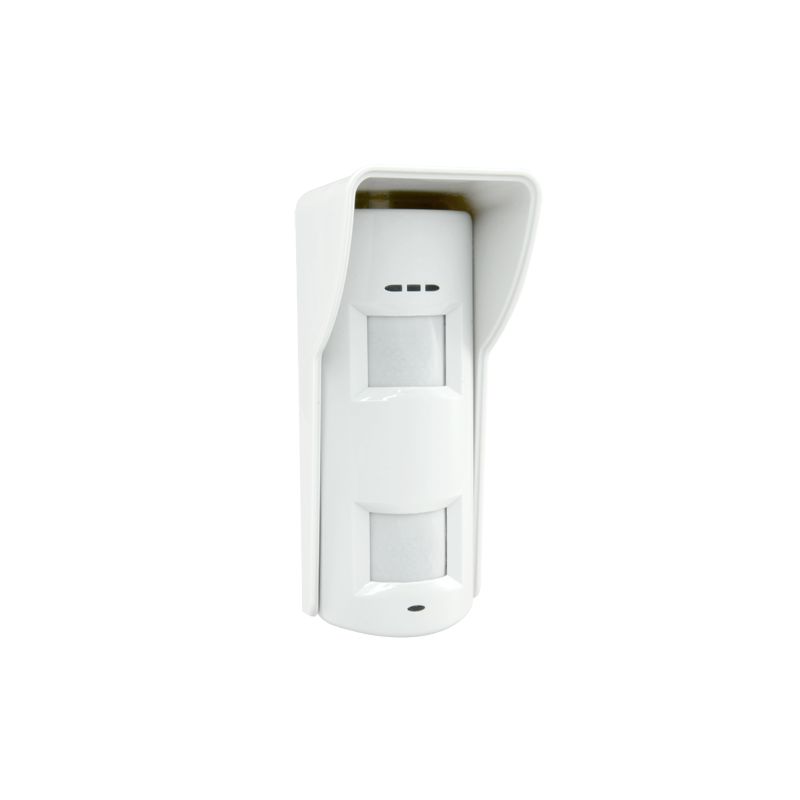

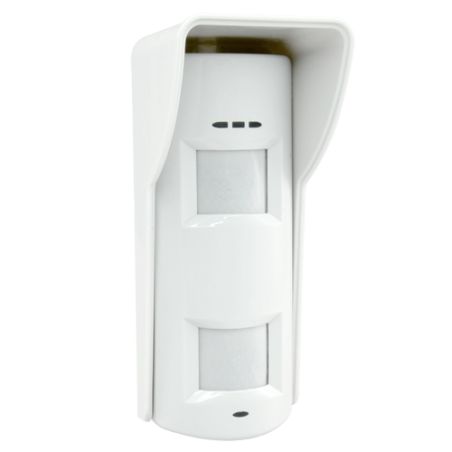

Pyronix XDL12TT-AM - Triple technology PIR Detector, Anti-masking function,…
Triple technology PIR Detector - Anti-masking function - Volumetric or curtain coverage - 2 Infrared, 1 Microwaves - Detection Range 12 m - Valid for exterior / Grade 2
79,38 €
122,13 €
Économisez 35%
TTC
Référence
XDL12TT-AM
Marque
Pyronix
Pyronix XDL12TT-AM - Triple technology PIR Detector, Anti-masking function,…
79,38 €
122,13 €
Économisez 35%
- Pyronix
- Combined triple-technology exterior detector with anti-masking
- Microwave and two PIR sensors with double pyroelectric elements
- PIR Coverage from 12m / 85º or curtain type from 12m / 17º
- Adjustable microwave coverage between 0-12m
- Pet proof up to 24Kg when installed at 1-1,5m (H)
- Reinforced UV protection lens
- Integrated single/double/triple EOL resisters
- Anti-masking 0-1m
- Certificate Grade 2
Caractéristiques
- Triple technology PIR Detector
- Anti-masking function
- Volumetric or curtain coverage
- 2 Infrared, 1 Microwaves
- Detection Range 12 m
- Valid for exterior / Grade 2
Spécifications
| Brand | Pyronix |
| Technology | 2 x PIR and 1 x Microwaves |
| PIR lens | 6 zone(s) & 1 plane(s) |
| Detection range | 12 m / 85º or 12m / 17º for install H = 1.2 m |
| Pet immunity | ≤ 24 Kg |
| Masking | Adjustable from 0 to 1 m |
| Sensitivity | Adjustable Automatic or High |
| Detection speed | 0.25~2.5 m/s |
| Relay Output | 3 x SELV, DC 60 V 50 mA |
| Tamper switch | Front and rear, DC 12 V 50 mA |
| Security certified | Grade 2 |
| Temp. operation | -30º C ~ 70º C |
| Dimensions (without bracket) | 188 (H) x 77 (W) x 84 (D) mm |
| Weight | 300 g |
Contenu de l'emballage
- PIR Perimeter detector
- User instructions
Fiche technique
- Poids
- 300 g
300 g - Technology
- 2 x PIR et 1 x Microondes
- Detection range
- 12 m / 85º ó 12m / 17º pour une H d\'installation ﹦ 1.2 m
- Pet immunity
- ≤ 24 Kg
- Masking
- Réglable de 0 à 1 m
- Sensitivity
- Ajustable Automatique ou Haute
- Temp. operation
- -30º C ~ 70º C
- Objectif PIR
- 6 zones et 1 plan
- Dimensions (sans support)
- 188 (H) x 77 (L) x 84 (Pr) mm
188 (H) x 77 (L) x 84 (Pr) mm - Vitesse de détection
- 0.25~2.5 m/s
- Sortie Relais
- 3 x SELV, DC 60 V 50 mA
- Switch sabotage
- Devant et derrière, DC 12 V 50 mA
- Brand
- Pyronix
- Certification de Sécurité
- Degré 2
Degré 3
Triple technology PIR Detector - Anti-masking function - Volumetric or curtain coverage - 2 Infrared, 1 Microwaves - Detection Range 12 m - Valid for exterior / Grade 2
