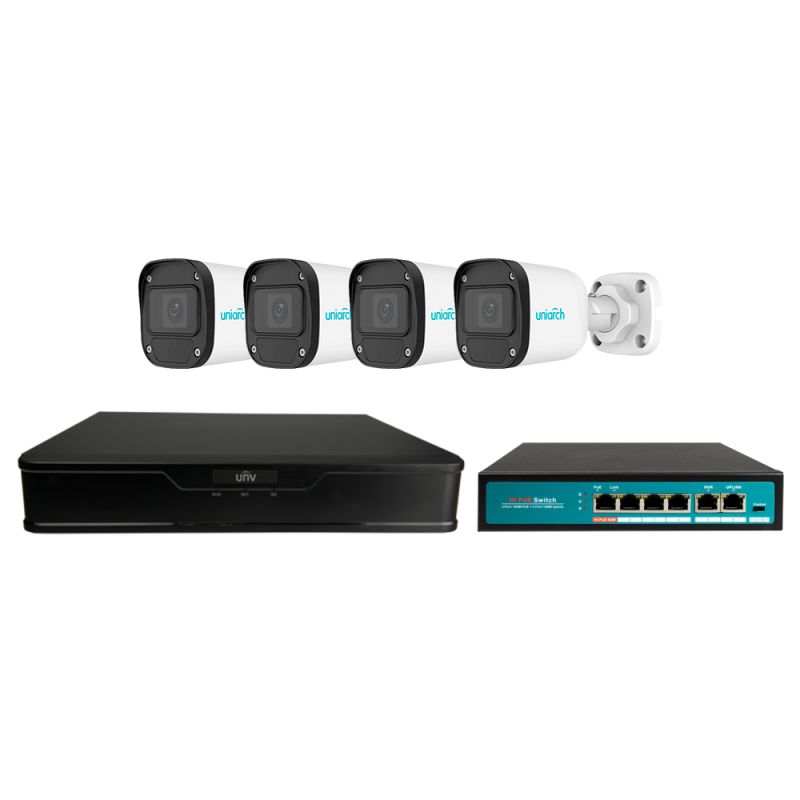

Uniarch UV-KIT101-B44XPOE - Uniarch Video Surveillance Kit, XVR 4CH (up to 6 IP),…
Uniarch Video Surveillance Kit - XVR 4CH (up to 6 IP) - 4 Bullet cameras IP67 - Hi-PoE Switch - Space for 1 HDD - WEB, CMS, Smartphone and NVR interface
Référence
UV-KIT101-B44XPOE
Marque
Uniarch
Vous aimerez aussi
- Uniarch
- Video surveillance kit
- 4 Bullet IP Cameras 2 Mpx
- IR Range 30 m
- Outdoor-safe cameras IP67
- XVR Recorder 4CH (up to 6 IP)
- Recording resolution 4K
- HDTVI, HDCVI, AHD, CVBS and IP
- HDMI Full HD, VGA and CVBS video output
- RS485 Communication
- Audio
- Compression H.265/H.264
- Hi-PoE Switch 65W
- Space for 1 HDD up to 10 TB
Caractéristiques
- Uniarch Video Surveillance Kit
- XVR 4CH (up to 6 IP)
- 4 Bullet cameras IP67
- Hi-PoE Switch
- Space for 1 HDD
- WEB, CMS, Smartphone and NVR interface
Spécifications
IP cameras | |
| Model | UV-IPC-B122-PF28 |
| Image sensor | 1/2.9” 2 Megapixel Progressive Scan CMOS |
| Resolution | 2 Megapixel (1920x1080) |
| Transfer Rate | Max 25 FPS |
| Compression | Ultra H.265 / H.265 / H.264 / MJPEG |
| Lens | 2.8 mm @ F2.1 |
| Minimum illumination | Colour: 0.02 Lux / 0 Lux B/W |
| Infrared range | 30 m |
| Image improvements | 2D/3D-DNR, DWDR, HLC, BLC, OSD, PM, ROI, MD |
| Internal memory | MicroSD Card, Max 256 GB (not included) |
| Network interface | Ethernet 10/100 BaseT |
| Protection | Suitable for exterior IP67 |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | DC 12 V / 3.5 W, PoE IEEE802.3af |
| Operating temperature | -30º C ~ 60º C |
| Dimensions / Weight | 142.1 (H) x 62.4 (W) x 65.2 (D) mm / 190 g |
XVR | |
| Model | UV-NVR301-04Q |
| Analog video inputs | 4 Channels BNC (HDTVI / HDCVI / AHD / CVBS) |
| IP video inputs | Up to 6 IP Channels. All analog channels are replaceable + 2 extra IP |
| Bandwidth | 40 Mbps downstream / 40 Mbps upstream |
| Video outputs | 1 HDMI Full HD, 1 VGA and 1 BNC (CVBS) |
| Audio | RCA | 1 Ingoing / 1 Exit |
| Video/audio compression format | H.265/H.264 | G.711u |
| Display resolution | 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Maximum recording resolution | 8 Mpx |
| Coding | Up to 8 Mpx Lite (Supports cameras from 8 Mpx) |
| Decoding | 6 channels simultaneously |
| Recording method | Manual, programmed, motion detection |
| Internal memory | 1 SATA HDD 3.5" of up to 10 TB (not included) |
| Communication | 2 x USB (Mouse and backup) / RJ45 (Ethernet) / RS485 |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | DC 12V / 12W |
| Dimensions | 46 (H) x 260 (W) x 240 (D) mm / 1,12 Kg |
PoE Switch | |
| Model | SW0604-60-HIPOE |
| Interface | 4 PoE ports RJ45 10/100 + 2 Uplink |
| Port speed RJ45 | 4 x 10/100 - 1 x 10/100 Mbps |
| Power supply | Up to 65W (Hi-POE) in port 1 and up to 30W in ports 2 to 4 (65 W in total for the switch) |
| PoE features | Hi-PoE / IEEE 802.3at PoE+ / IEEE 802.3af PoE |
| Transmission distance | CCTV mode up to 250m at 10Mbps |
| Smart PoE | PoE Watchdog - Progressive protected start |
| Power | AC 220 V |
| Operating temperature | -40° C - 55° C |
| Dimensions | 200 (D) x 40 (H) x 155 (W) mm |
Contenu de l'emballage
- Recorder UV-NVR301-04Q
- 4 cameras UV-IPC-B122-PF28
- SW0604-60-HIPOE Switch
- Installation material
- Power adapter
- USB mouse
Fiche technique
- Poids
- 231.7 g
3800 g - Power
- AC 220 V
DC 12 V / 3.5 W, PoE IEEE802.3af
DC 12V / 12W
≤10MΩ - Résolution
- 2 Mégapixel (1920x1080)
- Distance de transmission
- Mode CCTV jusqu\'à 250m pour 10Mbps
- Protection
- Apto para exterior IP67
- Dimensions
- 46 (H) x 260 (W) x 240 (D) mm / 1,12 Kg
101 (H) x 151 (L) x 98 (Pr) mm
200 (D) x 40 (H) x 155 (W) mm
220 (Al) x 75 (An) x 40 (Fo) mm - Taux de transfert
- Max 25 FPS
- Température de fonctionnement
- -30º C ~ 60º C
-40° C - 55° C - Alimentation
- Jusqu\'à 65W (Hi-POE) port 1 et un maximum de 30W entre les ports 2 er 4 (65 W pour tous les dispositifs)
- Dimensions / Poids
- 142.1 (Al) x 62.4 (An) x 65.2 (Fo) mm / 190 g
- Communication
- 2 x USB (Mouse and backup) / RJ45 (Ethernet) / RS485
- Audio
- RCA | 1 Ingoing / 1 Exit
- Bande de passante
- 40 Mbps downstream / 40 Mbps upstream
- Voltage nominal
- 12 V
- Capacité nominale
- 12.0 Ah (10HR)
- Usage standby
- 13.5~13.8 V
- L\'utilisation cyclique
- 14.4~15.0 V
- Intensité initiale
- ≤3.6 A
- Intensité de décharge maximale
- 180 A (5s)
- Résistance interne
- 18 mΩ
- Type de connexion
- F1
- Sécurité
- 231.7 g
- Capteur d\'image
- 1/2.9” 2 Megapixel Progressive Scan CMOS
- Illumination minimale
- Couleur: 0.02 Lux / 0 Lux N/B
- Objectif
- 2.8 mm @ F2.1
- Améliorations d\'image
- 2D/3D-DNR, DWDR, HLC, BLC, OSD, PM, ROI, MD
- Résolution d\'affichage
- 1920x1080, 1280x1024, 1280x720, 1024x768
- Méthode d\'enregistrement
- Manuel, programmé, Détection de movimiento
- Stockage interne
- 1 HDD SATA 3.5\" de jusqu\'à 10 TB (non inclus)
Carte MicroSD, Max 256 GB (non incluse) - Accès distant
- Navegador Web, Software CMS (EZStation), Smartphone (EZView/EZLive)
- Compression
- Ultra H.265 / H.265 / H.264 / MJPEG
- Network interface
- Ethernet 10/100 BaseT
- Caractéristiques PoE
- Selon la norme Hi-PoE / IEEE 802.3at PoE+ / IEEE 802.3af PoE
- Interface
- 4 ports PoE RJ45 10/100 + 2 Uplink
- Sorties vidéo
- 1 HDMI Full HD, 1 VGA and 1 BNC (CVBS)
- Encodage
- Up to 8 Mpx Lite (Supports cameras from 8 Mpx)
- Alcance Infrarrojos
- 30 m
- Décodage
- 6 channels simultaneously
- Smart PoE
- PoE Watchdog - Allumage progressif protégé
- Vitesse de port RJ45
- 4 x 10/100 - 1 x 10/100 Mbps
- Auto-Téléchargement
- jusqu\'à 6 mois (25º)
- Analog video inputs
- 4 Channels BNC (HDTVI / HDCVI / AHD / CVBS)
- Maximum recording resolution
- 8 Mpx
- Rango de medida intensidad DC y AC
- 100A
- Rango de medida de resistencia
- 20MΩ ±(1%+2)
- Rango de medida de capacitancia
- 20mF ±(4%+5)
- Cuentas display
- Hasta 2000
- Dimensiones display
- 39.3mm x 26.5mm
- Auto Rango / Rango manual / True RMS
- Sí dispone
- Test de diodos
- Alrededor de 3V
- Función VFC y NCV (Detección de voltaje sin contacto)
- Si dispone
- Modo relativo
- No dispone
- Registro MAX/MIN
- No dispone
- Test de continuidad
- Si dispone
- Indicador de batería baja
- Si dispone (≤3.6V)
- Protección de entrada
- Si dispone
- Impedancia de entrada DCV
- ≤10MΩ
- Rango de medida de tensión DC y AC
- 600V
- Modo ZERO
- Si dispone
- Apertura de pinza
- 17mm
- IP video inputs
- Up to 6 IP Channels. All analog channels are replaceable + 2 extra IP
- Video/audio compression format
- H.265/H.264 | G.711u
Uniarch Video Surveillance Kit - XVR 4CH (up to 6 IP) - 4 Bullet cameras IP67 - Hi-PoE Switch - Space for 1 HDD - WEB, CMS, Smartphone and NVR interface
