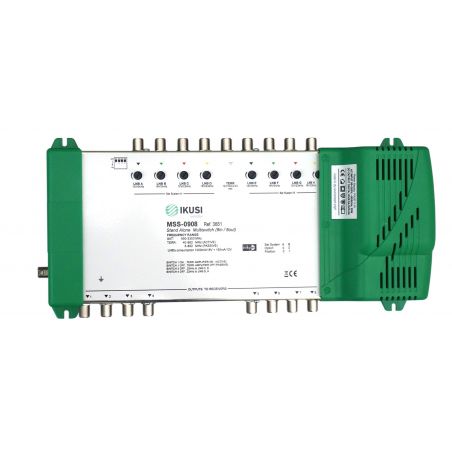

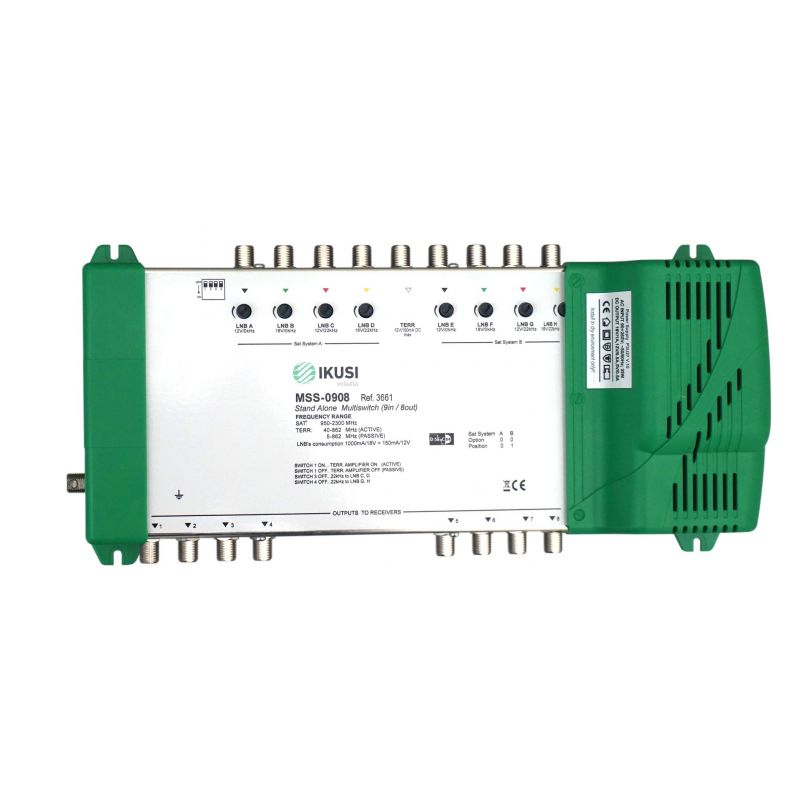

Ikusi MSS-0908 - Multiswitch autônomo 9 entradas 8 saídas

Entrada multi-entrada via satélite + entrada terrestre comutável (ativa ou passiva). Fonte de alimentação integrada e removível.

251,08 €
Com IVA
Referência ikusi-3661
Marca Ikusi
Quantidade
Disponível em 24/48h

Free shipping
Multiswitch autônomo 9 entradas 4 saídas mss-09

Ikusi MSS-0908 - Multiswitch autônomo 9 entradas 8 saídas

251,08 €

Informação

Uma solução para distribuir sinais de 1 a 4 satélites até 32 usuários

Specifications

MODEL MSS-0904 MSS-0908 MSS-0912 MSS-0916 MSS-0920 MSS-0926 MSS-0932
REF. 3660 3661 3662 3663 3664 3665 3666
Number of entries 9 (8 SAT + 1 TERR)
Number of outputs (users) 4 8 12 16 20 26 32
SAT frequency band MHz 950-2300 950-2300 950-2300 950-2300 950-2300 950-2300 950-2150
Frequency Band Active TERR
Passive TERR		 MHz 40 – 862 5 862 40 – 862 5 862 40 – 862 5 862 40 – 862 5 862 40 – 862 5 862 40 – 862 5 862 40 – 862 5 862
SAT insertion losses dB 0 0 0 0 4 5 950 MHz = 8 2150 MHz = +5
Insertion Losses Active TERR
Passive TERR		 dB -3
12		 0
16		 3
18		 5
21		 7
24		 8
25		 5
27
Disconnection of H / V polarities dB 20 20 20 20 20 20 25
Disconnection between LNBs dB 25 25 25 25 25 25 30
Maximum input level SAT dB µ V 90 90 90 90 90 90 85
Input level max. x Active TERR
Passive TERR		 dB µ V 90
100		 90
100		 90
100		 90
100		 90
100		 90
100		 90
110
Maximum output level SAT dB µ V 90 90 90 90 86 85 85
Maximum Output Level Active TERR
Passive TERR		 dB µ V 93 90 87 85 83 82 85
Consumption of each receiver mA 50 50 50 50 50 50 70
Power supply consumption Active TERR
Passive TERR		 W 4.5
3		 4.5
3		 4.5
3		 4.5
3		 4.5
3		 4.5
3		 4.5
3
Consumition power ºC -30 -> +70 -30 -> +70 -30 -> +70 -30 -> +70 -30 -> +70 -30 -> +70 -25 -> +50
Dimensions cm 15.2 x 8.7 34.7 x 15.2 x 8.7 34.7 x 15.2 x 8.7 35.4 x 15.2 x 8.7 47.0 x 15.2 x 8.7 47.0 x 15.2 x 8.7 35.5 x 35 x 5
