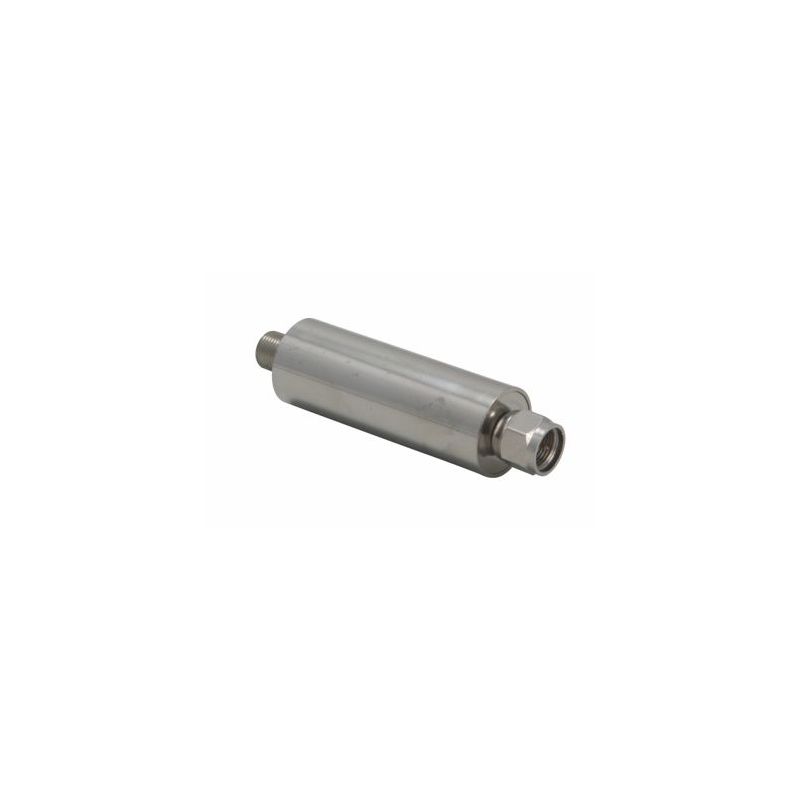

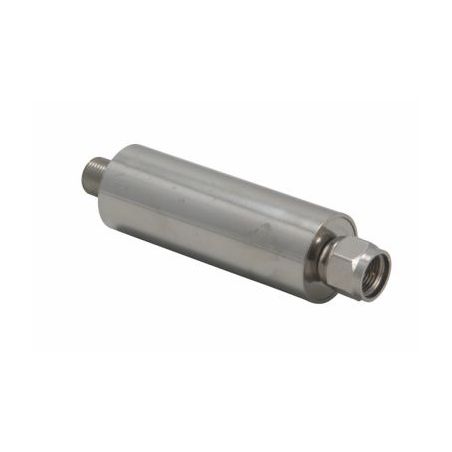

Filtro LTE TLP 700MHz CH48
Filtro LTE impedem que os serviços móveis 4G causem interferência com sinais de TV terrestres
16,47 €
Com IVA
Referência
triax-314176
Marca
Triax
Filtro LTE TLP 700MHz CH48
16,47 €
Filtro LTE impedem que os serviços móveis 4G causem interferência com sinais de TV terrestres
Especificações
| ORDER INFORMATION | |
|---|---|
| EAN Number | 5702663141766 |
| CHARACTERISTICS | |
| Type | LP filter |
| FREQUENCY | |
| Input 1 - frequency | 5...694 MHz |
| Input 1 - stop channel | 48 |
| LTE protection | @ 700Mhz |
| LOSS | |
| Input 1 - through loss | 0.8...3.0 dB |
| Rejection @ 730 MHz (Ch. 53) | > 50.0 dB |
| RETURN LOSS | |
| Return loss (in-out) 5-40 MHz | 20 dB |
| Return loss (in-out) 40-1000 MHz | ≥ 18dB -1.5dB/Oct, min. 10dB dB |
| ELECTRICAL | |
| Impedance | 75 Ω |
| OPERATIONAL | |
| DC Passthrough | Yes (30VDC / 1A) |
| CONNECTORS | |
| Connector Type | F-male / F-female |
| Number of inputs | 1 |
| Number of outputs | 1 |
| MECHANICAL | |
| Packing QTY | 1 |
| Packaging Height | 0,086 m |
| Packaging Width | 0,030 m |
| Packaging Depth | 0,030 m |
| Net Weight | 0,068 kg |
| Tara Weight | 0,008 kg |
| Total Weight | 0,076 kg |
