Triax ACT 1-16 Derivador de 1 saída 16dB

O TRIAX aproveita o desempenho geral para uso em CATV, SMATV e MATV. Faixa de freqüência 5-1000 MHz. Alta proteção. Perda de retorno Grau 2. Caixa fundida de alta qualidade revestida com Sn. Todas as portas AC/DC estão bloqueadas no condutor interno. Conforme EN 50083-2 e EN 60728-4

6,61 €
Com IVA
Referência triax-343261
Marca Triax
Quantidade
Disponível em 4/5 dias

Free shipping
Triax ACT 1-12 Derivador de 1 saída 12dB

Triax ACT 1-16 Derivador de 1 saída 16dB

6,61 €

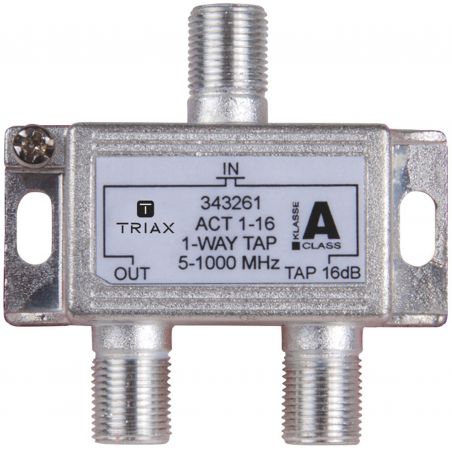

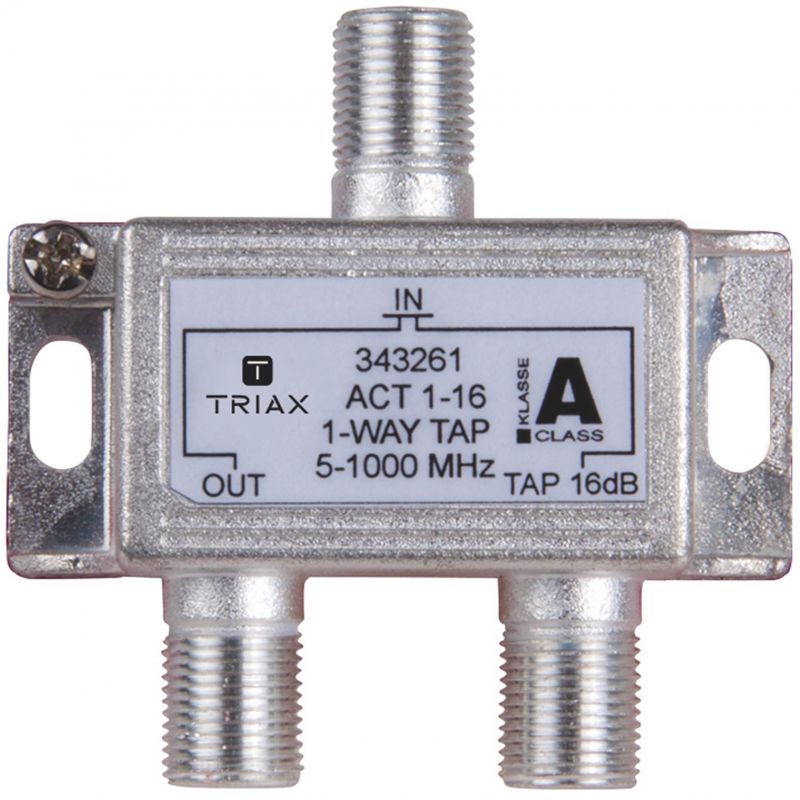

ACT 1-16  1 desvio de saída 16dB

Os desviadores TRIAX são usados para aplicações CATV, SMATV e MATV.

Características

  • Faixa de freqüência 5-1000 MHz
  • Escudo alto
  • Grau de perda de retorno 2
  • Invólucro de ferro fundido de alta qualidade revestido com Sn
  • Todas as portas AC/DC bloqueadas no condutor interno
  • Conforme EN 50083-2 e EN 60728-4

Especificações

ORDER INFORMATION
EAN Number 5702663432611
SHIELDING
Shielding effeciency VHF/UHF > 110 dB
CHARACTERISTICS
Type COAX tap
FREQUENCY
Frequency range 5...1000 MHz
LOSS
Tap loss (in-tap) 40-470 MHz 16.0 dB
Tap loss (in-tap) 470-860 MHz 16.0 dB
Tap loss (in-tap) 5-40 MHz 16.0 dB
Tap loss (in-tap) 860-1000 MHz 16.0 dB
Insertion loss (in-out) 40-470 MHz 0.8 dB
Insertion loss (in-out) 470-860 MHz 1.0 dB
Insertion loss (in-out) 5-40 Mhz 0.8 dB
Insertion loss (in-out) 860-1000 MHz 1.0 dB
ISOLATION
Isolation (out-tap) 40-470 MHz 36 dB
Isolation (out-tap) 470-860 MHz 32 dB
Isolation (out-tap) 5-40 MHz 38 dB
Isolation (out-tap) 860-1000 MHz 27 dB
RETURN LOSS
Return loss (in-out) 40-470 MHz 20 dB
Return loss (in-out) 470-860 MHz 20 dB
Return loss (in-out) 5-40 MHz 21 dB
Return loss (in-out) 860-1000 MHz 17 dB
Return loss (tap) 40-470 MHz 20 dB
Return loss (tap) 470-860 MHz 20 dB
Return loss (tap) 5-40 MHz 21 dB
Return loss (tap) 860-1000 MHz 17 dB
ELECTRICAL
Impedance 75 Ω
OPERATIONAL
DC Passthrough NO - DC blocked at inner conductor
Screening Efficiency EN50083-2 (Class A)
Certification IEC 60 728-2, IEC 60 728-4, IEC 60 728-11
Application MATV, SMATV 1Ghz
Environment Indoor
CONNECTORS
Connector Type F-female
Number of outputs 1
Number of taps 1
Number of inputs 1
MECHANICAL
Total Weight 0.057 kg
Net Weight 0.050 kg
Packing QTY 1
Tara Weight 0.007 kg
Bracket (optional) 1x ACB-S / Art No 343232
Main material Zinc diecast/CuSn plated
